FINE 600L SL PLUS
OVERVIEW

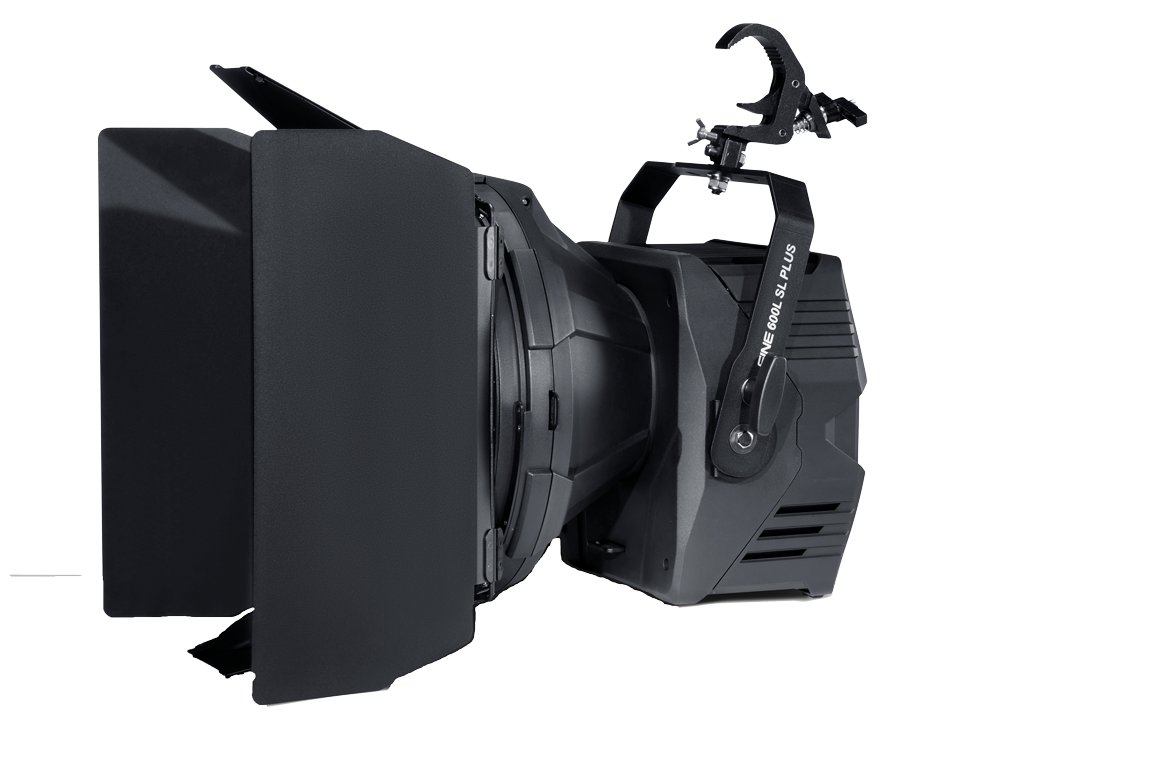

FINE 600L SL PLUS is an LED conference lamp that integrates brightness, color rendering, light efficiency and controllability. It adopts 600W LED high-efficiency light source module and new optical design, and the illuminance of 7 meters away exceeds 170000lux, which is the best in its class. FINE 600L SL PLUS not only has amazing brightness, but also excellent light quality, color rendering index Ra>90, R9≥85, 6250K color temperature is slightly higher than the noon sun, fully restore the color of the illuminated object. FINE 600L SL PLUS also has 3 diffusion lenses (10°~20°/20°~40°/40°), and the ingenious rotatable lens design makes it easy to adjust the angle of the time spot hanging in different angles and directions. Its excellent heat dissipation system design ensures lower noise operation of the luminaires, which can be used in places with a large number of luminaires and high noise and heat generation. Small in size, light in weight and stylish in appearance, FINE 600L SL PLUS creates perfect visual effects, whether it is a car show, fashion show, sporting event, exhibition or other occasions that require high-quality lighting.
TECHNICAL SPECIFICATION
OPTICAL SYSTEM
  • Light source: 600W LED

  • Lifespan: 50000 hours

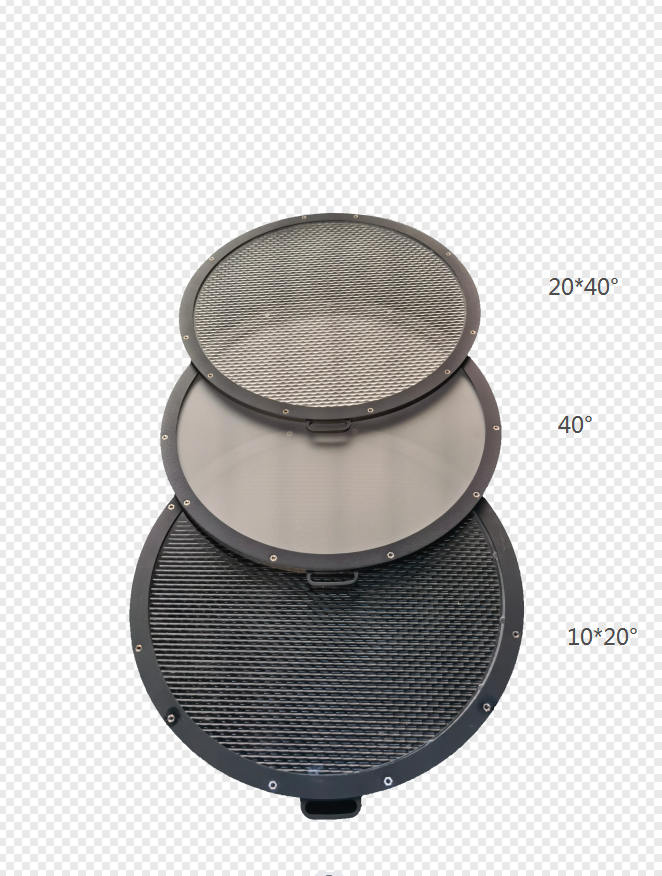

  • Zoom: 10 degrees (optional plus 10*20 degrees/20*40 degrees/40 degrees)

  • Color temperature: 6250±250K

  • CRI: Ra>90, R9≥85

  • Light source: 600W LED

  • Lifespan: 50000 hours

  • Zoom: 10 degrees (optional plus 10*20 degrees/20*40 degrees/40 degrees)

  • Color temperature: 6250±250K

  • CRI: Ra>90, R9≥85

FEATURE
  • Housing: Aluminum alloy die-casting + plastic shell

  • Housing: Aluminum alloy die-casting + plastic shell

ELECTRIC
  • Power Supply: 100-240V, 50/60Hz

  • Input Power: 540W, PF≥0.98

  • Power Supply: 100-240V, 50/60Hz

  • Input Power: 540W, PF≥0.98

ELECTRONIC CONTROL TECHNOLOGY
  • Channel Mode: 5CH/4CH/1CH

  • Protocol: Standard DMX512

  • Menu display: 1.3-inch OLED display with resolution of 128×60dots;

  • Chinese and English languages can be switched freely, and can be inverted 180 ° for display


  • Channel Mode: 5CH/4CH/1CH

  • Protocol: Standard DMX512

  • Menu display: 1.3-inch OLED display with resolution of 128×60dots;

  • Chinese and English languages can be switched freely, and can be inverted 180 ° for display


ELECTRONIC CONTROL TECHNOLOGY
  • Easy operation to upgrade software via DMX data cable

  • Decrease power when lamp off for energy saving

  • Intelligent fan control

  • Electronic temperature sensor detection

  • DMX control monitor

  • Query by LCD screen

  • RDM bidirectional data transmission


  • Easy operation to upgrade software via DMX data cable

  • Decrease power when lamp off for energy saving

  • Intelligent fan control

  • Electronic temperature sensor detection

  • DMX control monitor

  • Query by LCD screen

  • RDM bidirectional data transmission


DIMENSION AND WEIGHT
  • Fixture Dimension: 576 x 310 x 353mm

  • Package Dimension:

  • 784 x 700 x 563mm (flight case)

  • 710 x 455 x 485mm (carton)

  • Net Weight: 13.1 kg (fixture)

  • Gross Weight: 20.5 kg

  • Fixture Dimension: 576 x 310 x 353mm

  • Package Dimension:

  • 784 x 700 x 563mm (flight case)

  • 710 x 455 x 485mm (carton)

  • Net Weight: 13.1 kg (fixture)

  • Gross Weight: 20.5 kg

PACKAGE
  • 2 sets / flight case

  • 1set / carton


  • 2 sets / flight case

  • 1set / carton


INSTALLMENT
  • Position: 0° - 180°

  • Hanging: Standard hanging/pole-controlled/electronic-controlled

  • Safety: Safety cable

  • Position: 0° - 180°

  • Hanging: Standard hanging/pole-controlled/electronic-controlled

  • Safety: Safety cable

WORKING ENVIRONMENT
  • Temperature: -10℃~45℃

  • Humidity: 5%-95%

  • Temperature: -10℃~45℃

  • Humidity: 5%-95%

IP RATE
  • IP 20

  • IP 20

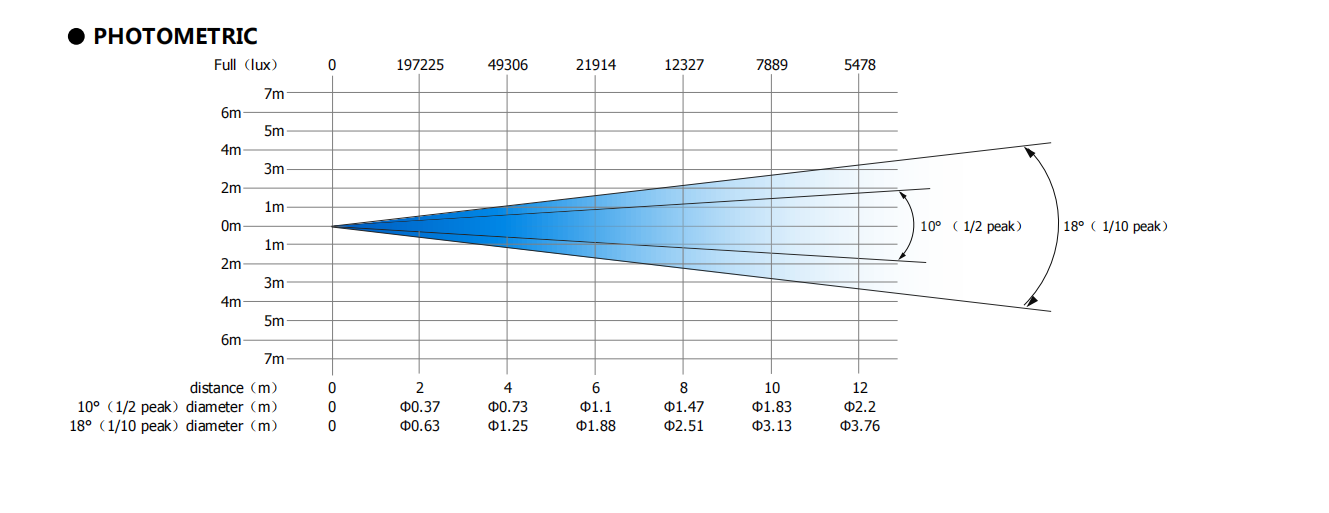

PHOTOMETRICS

FINE 600L SL PLUS(添鑫光源)-20230906_00

GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
Filename
Size
Uploaded
Downloading
TEKMAND
icon
FINE 600L SL PLUS (TEKMAND)
2024-10-23
MA2
icon
FINE 600 LSL PLUS (MA2)
2024-10-24
icon
FINE 600 LSL PLUS (MA2)
2024-10-21
Drawings
icon
FINE 600L SL PLUS Dimension Drawings
2024-10-19
Share
PDFpdf-icon

FINE 600L SL PLUS

OVERVIEW
TECHNICAL SPECIFICATION
GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
ENQUIRE
FINE 600L SL PLUS
FINE 600L SL PLUS is an LED conference lamp that integrates brightness, color rendering, light efficiency and controllability. It adopts 600W LED high-efficiency light source module and new optical design, and the illuminance of 7 meters away exceeds 170000lux, which is the best in its class. FINE 600L SL PLUS not only has amazing brightness, but also excellent light quality, color rendering index Ra>90, R9≥85, 6250K color temperature is slightly higher than the noon sun, fully restore the color of the illuminated object. FINE 600L SL PLUS also has 3 diffusion lenses (10°~20°/20°~40°/40°), and the ingenious rotatable lens design makes it easy to adjust the angle of the time spot hanging in different angles and directions. Its excellent heat dissipation system design ensures lower noise operation of the luminaires, which can be used in places with a large number of luminaires and high noise and heat generation. Small in size, light in weight and stylish in appearance, FINE 600L SL PLUS creates perfect visual effects, whether it is a car show, fashion show, sporting event, exhibition or other occasions that require high-quality lighting.
TECHNICAL SPECIFICATION
OPTICAL SYSTEM
  • Light source: 600W LED

  • Lifespan: 50000 hours

  • Zoom: 10 degrees (optional plus 10*20 degrees/20*40 degrees/40 degrees)

  • Color temperature: 6250±250K

  • CRI: Ra>90, R9≥85

FEATURE
  • Housing: Aluminum alloy die-casting + plastic shell

ELECTRIC
  • Power Supply: 100-240V, 50/60Hz

  • Input Power: 540W, PF≥0.98

ELECTRONIC CONTROL TECHNOLOGY
  • Channel Mode: 5CH/4CH/1CH

  • Protocol: Standard DMX512

  • Menu display: 1.3-inch OLED display with resolution of 128×60dots;

  • Chinese and English languages can be switched freely, and can be inverted 180 ° for display


ELECTRONIC CONTROL TECHNOLOGY
  • Easy operation to upgrade software via DMX data cable

  • Decrease power when lamp off for energy saving

  • Intelligent fan control

  • Electronic temperature sensor detection

  • DMX control monitor

  • Query by LCD screen

  • RDM bidirectional data transmission


DIMENSION AND WEIGHT
  • Fixture Dimension: 576 x 310 x 353mm

  • Package Dimension:

  • 784 x 700 x 563mm (flight case)

  • 710 x 455 x 485mm (carton)

  • Net Weight: 13.1 kg (fixture)

  • Gross Weight: 20.5 kg

PACKAGE
  • 2 sets / flight case

  • 1set / carton


INSTALLMENT
  • Position: 0° - 180°

  • Hanging: Standard hanging/pole-controlled/electronic-controlled

  • Safety: Safety cable

WORKING ENVIRONMENT
  • Temperature: -10℃~45℃

  • Humidity: 5%-95%

IP RATE
  • IP 20

PHOTOMETRICS

FINE 600L SL PLUS(添鑫光源)-20230906_00

!
×
