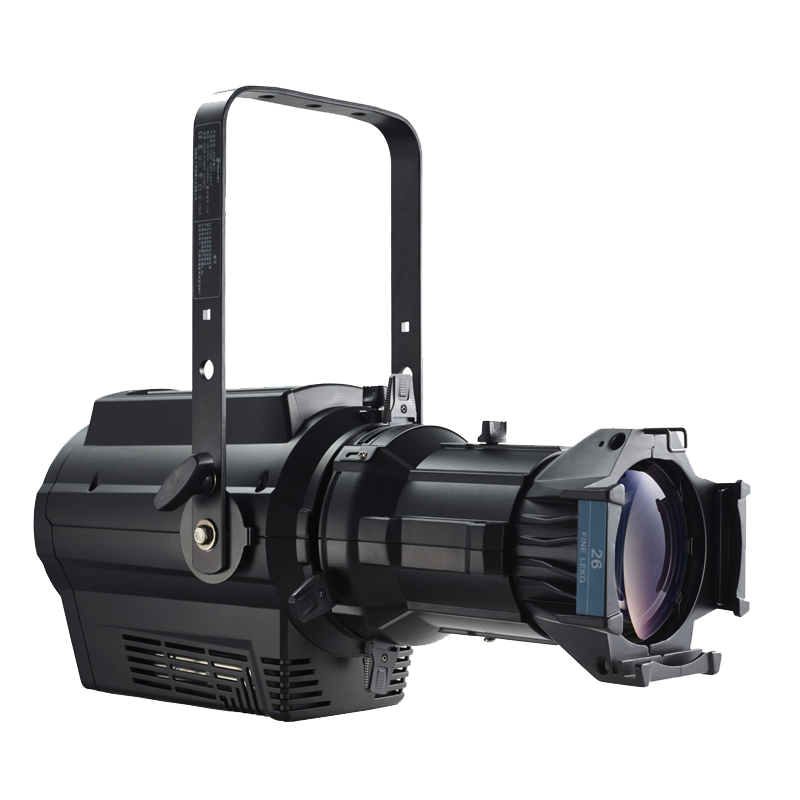

FINE 300T/400T LEKO
OVERVIEW
FINE 300T/400T LEKO are low color temperature (3200K/5600K)ellipsoidal lighting. With its innovative optics and cooling system design and using high CRI 300W/400W LED module, this feature has 3 high characteristics: high light efficiency, high CRI and high definition. By the body and lens isolation technology, it follows the conventional LEKO design idea and usage method with separate combination for light source and imaging, which is equipped with shutter and make convenient application.
TECHNICAL SPECIFICATION
OPTICAL SYSTEM
  • Light Source: 400w LUMILEDS LED module

  • Life Span: ≥50,000 hrs

  • Lens: 26°(5 °/10°/19°/36°/50°/15°-30° /25°-50 °for option)

  • Color Temperature: 3200K/5600K

  • CRI: Ra>90

  • Light Source: 400w LUMILEDS LED module

  • Life Span: ≥50,000 hrs

  • Lens: 26°(5 °/10°/19°/36°/50°/15°-30° /25°-50 °for option)

  • Color Temperature: 3200K/5600K

  • CRI: Ra>90

POWER SUPPLY
  • Power Supply: 100-240V ~ 50/60Hz

  • Input Power: 410W

  • PF≥0.99

  • Power Supply: 100-240V ~ 50/60Hz

  • Input Power: 410W

  • PF≥0.99

ELECTRONIC CONTROL TECHNOLOGY
  • Protocol: DMX512

  • Channel Mode: 1/3/4

  • Control Panel: LED screen + button

  • Protocol: DMX512

  • Channel Mode: 1/3/4

  • Control Panel: LED screen + button

DIMENSION AND WEIGHT
  • Fixture Dimension:

  • 701 x 292 x 496mm

  • Package Dimension:

    1265 x 700 x 505 mm (4pcs / flight case) Gross Weight: 104.4 kg

    780 x 750 x 515mm (2pcs / flight case) Gross Weight: 62.4 kg

  • Net Weight: 13 kg (fixture)

  • Fixture Dimension:

  • 701 x 292 x 496mm

  • Package Dimension:

    1265 x 700 x 505 mm (4pcs / flight case) Gross Weight: 104.4 kg

    780 x 750 x 515mm (2pcs / flight case) Gross Weight: 62.4 kg

  • Net Weight: 13 kg (fixture)

PACKAGE
  • 4 pcs / flight case

  • 2 pcs / flight case

  • 4 pcs / flight case

  • 2 pcs / flight case

IP RATE
  • IP 20

  • IP 20

DIMENSIONS

FINE 200T&300T&400T&300D&400D LEKO Dimension drawing

FINE 200T&300T&400T&300D&400D LEKO Dimension drawing 2024-10-23_00(1)

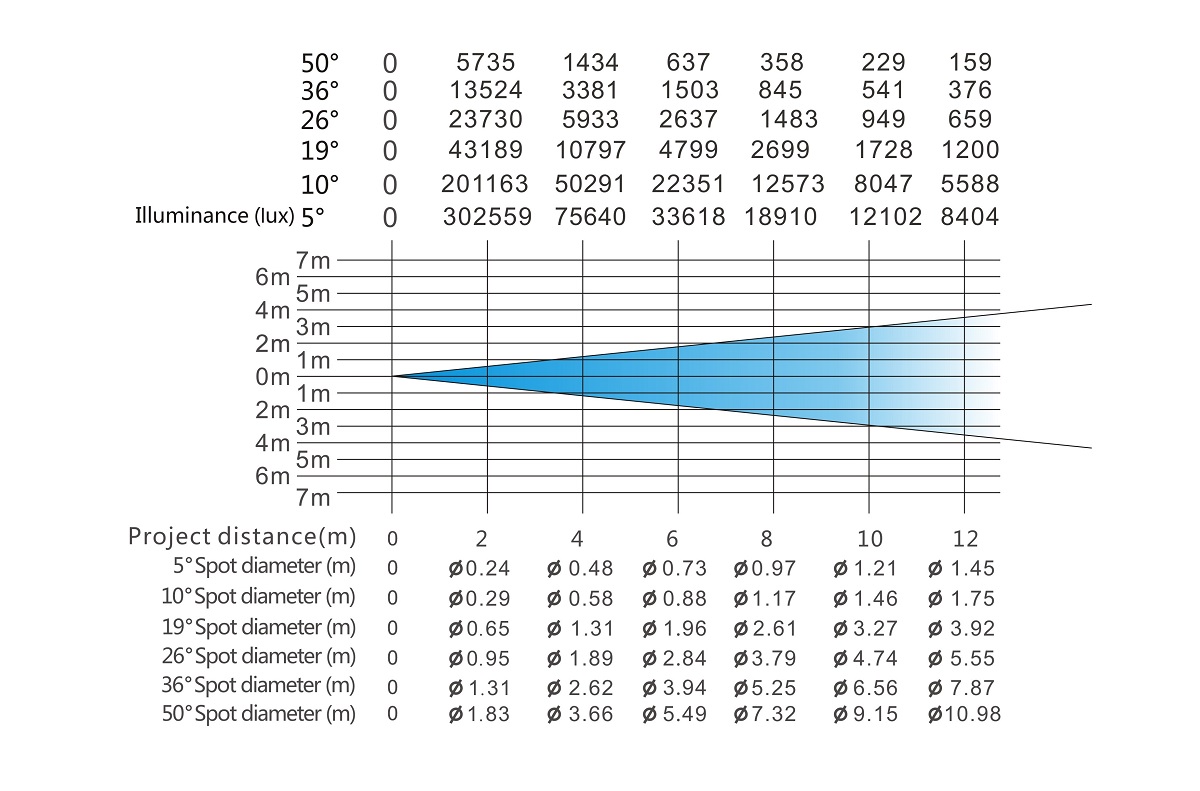

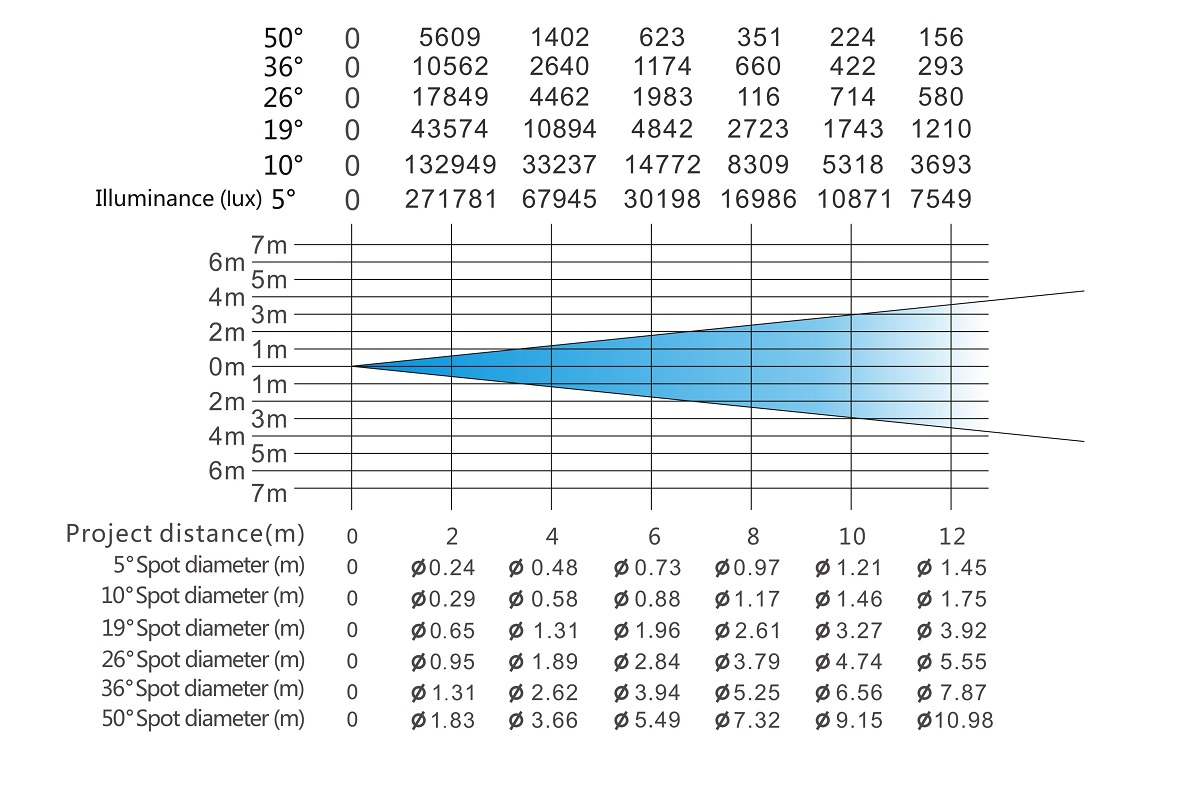

PHOTOMETRICS

FINE 300T LEKO:

FINE 300T LEKO第一图

FINE 400T LEKO:

FINE 400T LEKO第一图

GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
Filename
Size
Uploaded
Downloading
TEKMAND
icon
FINE 400D LEKO(TEKMAND)
2020-09-22
MA2
icon
FINE 300T LEKO (MA2)
2024-10-24
icon
FINE 400D LEKO(MA2)
2020-09-22
Avolites D4
icon
FINE 400D LEKO(Avolites D4)
2020-12-09
Drawings
icon
FINE 200T&300T&400T&300D&400D LEKO Dimension drawing
2024-10-31
Share
PDFpdf-icon

FINE 300T/400T LEKO

OVERVIEW
TECHNICAL SPECIFICATION
GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
ENQUIRE
FINE 300T/400T LEKO
FINE 300T/400T LEKO are low color temperature (3200K/5600K)ellipsoidal lighting. With its innovative optics and cooling system design and using high CRI 300W/400W LED module, this feature has 3 high characteristics: high light efficiency, high CRI and high definition. By the body and lens isolation technology, it follows the conventional LEKO design idea and usage method with separate combination for light source and imaging, which is equipped with shutter and make convenient application.
TECHNICAL SPECIFICATION
OPTICAL SYSTEM
  • Light Source: 400w LUMILEDS LED module

  • Life Span: ≥50,000 hrs

  • Lens: 26°(5 °/10°/19°/36°/50°/15°-30° /25°-50 °for option)

  • Color Temperature: 3200K/5600K

  • CRI: Ra>90

POWER SUPPLY
  • Power Supply: 100-240V ~ 50/60Hz

  • Input Power: 410W

  • PF≥0.99

ELECTRONIC CONTROL TECHNOLOGY
  • Protocol: DMX512

  • Channel Mode: 1/3/4

  • Control Panel: LED screen + button

DIMENSION AND WEIGHT
  • Fixture Dimension:

  • 701 x 292 x 496mm

  • Package Dimension:

    1265 x 700 x 505 mm (4pcs / flight case) Gross Weight: 104.4 kg

    780 x 750 x 515mm (2pcs / flight case) Gross Weight: 62.4 kg

  • Net Weight: 13 kg (fixture)

PACKAGE
  • 4 pcs / flight case

  • 2 pcs / flight case

IP RATE
  • IP 20

DIMENSIONS

FINE 200T&300T&400T&300D&400D LEKO Dimension drawing

FINE 200T&300T&400T&300D&400D LEKO Dimension drawing 2024-10-23_00(1)


PHOTOMETRICS

FINE 300T LEKO:

FINE 300T LEKO第一图

FINE 400T LEKO:

FINE 400T LEKO第一图

!
×
