OVERVIEW
FINE 600D/T PANEL is a multifunctional LED softlight fixture. With compact and free combination installation design, fashionable and simple profile, it achieves the outstanding balance between light efficiency and light quality.
FINE 600D PANEL color temperature reach 5600K, for FINE 600T PANEL is 3200K, both luminous area are 645 x 300 mm. Its unique optical system makes the soft light effect excellent and light quality perfect.
Ra≥97，R9≥97，TLCI≥98，CQS≥98；480W light source can bring FINE 600D PANEL luminous output 35,000 lumens, brighter than Tungsten Blonde 2K Softlight /Tungsten Blonde 6K (Open Face).
Share
PDF

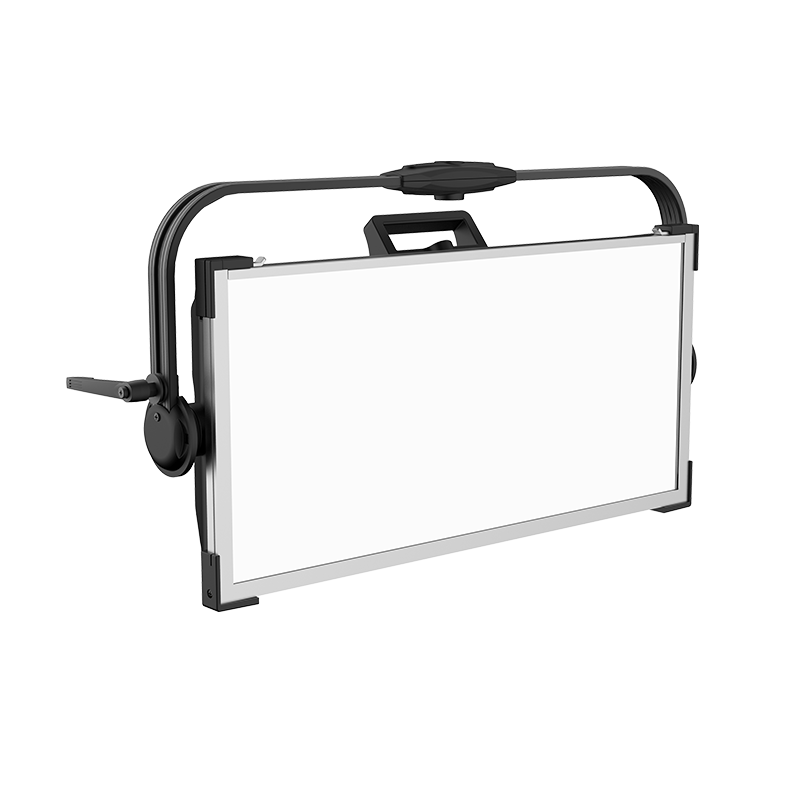

FINE 600D/T PANEL
FINE 600D/T PANEL
FINE 600D/T PANEL is a multifunctional LED softlight fixture. With compact and free combination installation design, fashionable and simple profile, it achieves the outstanding balance between light efficiency and light quality.
FINE 600D PANEL color temperature reach 5600K, for FINE 600T PANEL is 3200K, both luminous area are 645 x 300 mm. Its unique optical system makes the soft light effect excellent and light quality perfect.
Ra≥97，R9≥97，TLCI≥98，CQS≥98；480W light source can bring FINE 600D PANEL luminous output 35,000 lumens, brighter than Tungsten Blonde 2K Softlight /Tungsten Blonde 6K (Open Face).
TECHNICAL SPECIFICATION
OPTICAL SYSTEM
LED Light Source: 840*0.8W LEDs (imported)
Average Life Span: ≥50,000H
Color Temp: 3200K/5600K
CRI(color rendering index): Ra>97 R9>97
Spot Angle: 115° Beam Angle: 73°
CONTROL AND PROGRAMING
Control Channel: 3/4
Protocol: Standard DMX512 protocol；Art-net light control protocol (optional)
Control Panel: LCD display + button + knob
FEATURE
Profile: Aluminum + Plastic
POWER SUPPLY
Input Voltage: 100-240V~, 50/60Hz
Input Power: 480W
Power Factor: PF≥0.99
DIMENSION AND WEIGHT
Fixture Dimension: 808 x 246 x 538mm
Net Weight: 16 kg (with barn door)
INSTALL
Hang: standard hang
Safety: supplementary Safety cable
WORKING TEMPERATURE
Temperature: -10℃～45℃
Humidity: 5%-95%
IP RATE
IP 20
DIMENSIONS
FINE 600C/D/T PANEL
PHOTOMETRICS

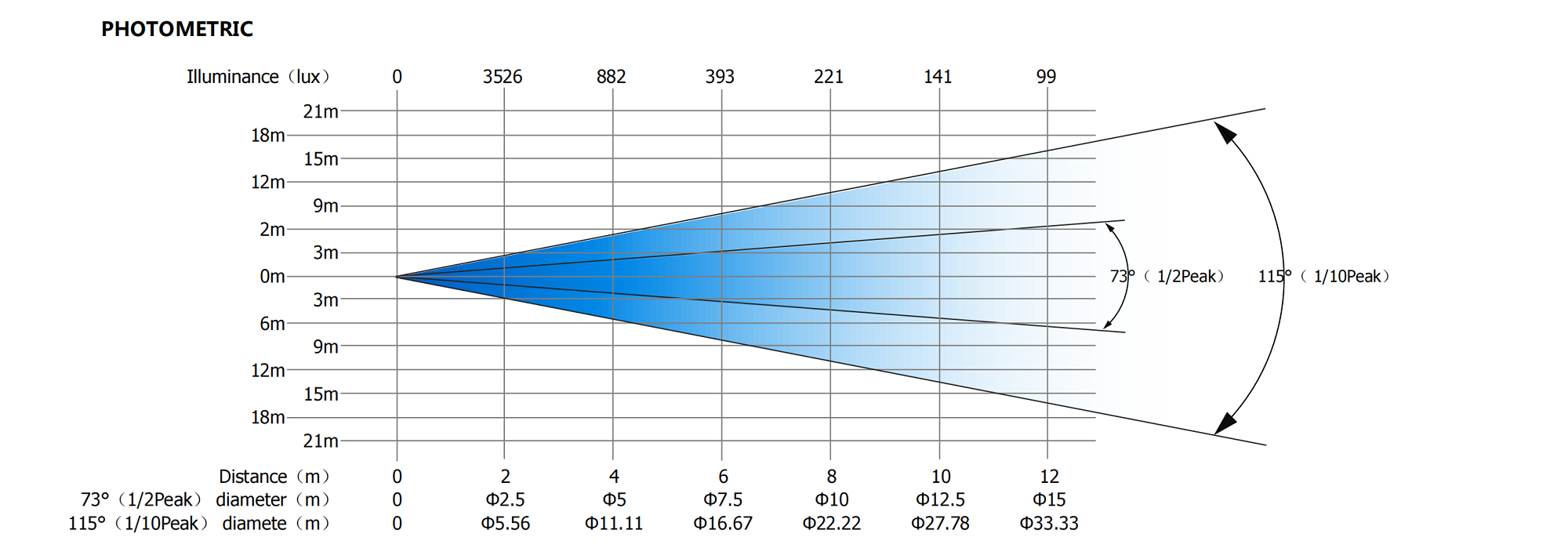

FINE 600D PANEL

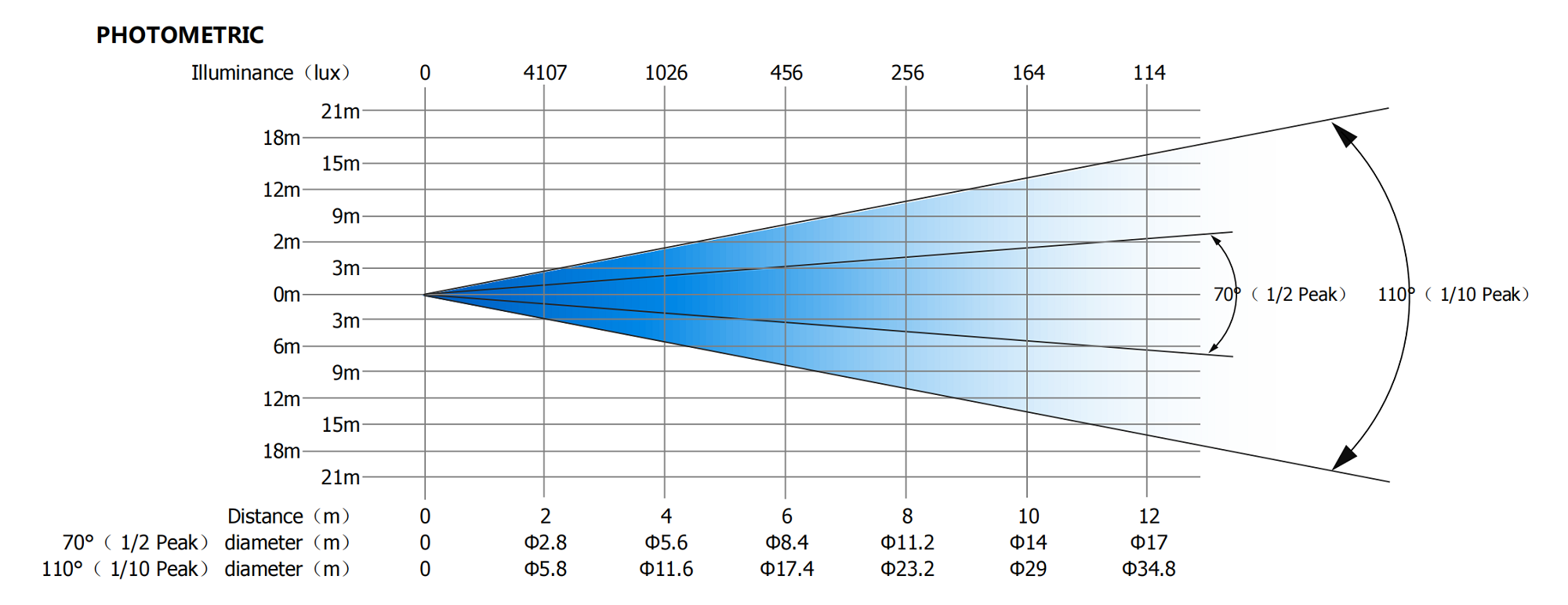

FINE 600T PANEL
