HomePRODUCTSSTATIC LIGHTSFINE 400C FS
FINE 400C FS
OVERVIEW
FINE 400C FS is a six-color full-spectrum fresnel spotlight. With unique innovative optical design, light efficiency over 38lm/w, achieving 2800K-6300K white light continuous output, power stability, Ra and R9 still remain above 93; with advanced HSIC color management system, the required color can be quickly browsed; super level 18 Bit high-precision dimming, more accurate color mixing, more delicate dimming. The first choice of professional theatres , news studios. 3 modes: hang, pole-controlled, electronic-controlled for the convenience of different places.
TECHNICAL SPECIFICATION
OPTICAL SYSTEM

  • Light Source: FINE 200C FS:200W（RGBLAC）

  • FINE 400C FS: 400W（RGBLAC）

  • Electric Zoom: 15°~60°

  • Color Temperature: 2800-6300K

  • Ra>93  R9>93

  • Light Source: FINE 200C FS:200W（RGBLAC）

  • FINE 400C FS: 400W（RGBLAC）

  • Electric Zoom: 15°~60°

  • Color Temperature: 2800-6300K

  • Ra>93  R9>93

FEATURE

  • Housing:Aluminum alloy die-casting +plastic shell

  • Housing:Aluminum alloy die-casting +plastic shell

ELECTRONIC CONTROL TECHNOLOGY

  • Control Channel:6CCT)/8（HSC)/11CR）

  • 8（CCT）/10（HSC）/13（CR）

  • Protocol:Standard DMX512

  • Control Panel: LED screen+button

  • Control Channel:6CCT)/8（HSC)/11CR）

  • 8（CCT）/10（HSC）/13（CR）

  • Protocol:Standard DMX512

  • Control Panel: LED screen+button

POWER SUPPLY

  • 100-240V~ 50/60Hz

  • FINE 200C FSinput Power: 230W, PF≥0.98

  • FINE 400C FS input Power: 400W, PF≥0.98

  • 100-240V~ 50/60Hz

  • FINE 200C FSinput Power: 230W, PF≥0.98

  • FINE 400C FS input Power: 400W, PF≥0.98

DIMENSION AND WEIGHT

  • Fixture Dimension:

  • 450.5 x 310 x 539mm

  • Package Dimension

    886 x 786 x 556mm (1:2) (Pole control & Electronic control)

    1100 x 680 x 555mm (1:4) (Hang)

  • Net Weight: 12kg

  • Gross Weight:

  • 54 kg (1:2) (Pole control & Electronic control)

  • 97 kg (Hang) (1:4) (Hang)

  • Fixture Dimension:

  • 450.5 x 310 x 539mm

  • Package Dimension

    886 x 786 x 556mm (1:2) (Pole control & Electronic control)

    1100 x 680 x 555mm (1:4) (Hang)

  • Net Weight: 12kg

  • Gross Weight:

  • 54 kg (1:2) (Pole control & Electronic control)

  • 97 kg (Hang) (1:4) (Hang)

PACKAGE

  • 4 pcs / flight case

  • 2 pcs / flight case

  • 4 pcs / flight case

  • 2 pcs / flight case

INSTALL

  • Position: 0-180°

  • Hanging: Standard Hanging/pole-controlled/electronic controlled

  • Safety: Safety Cable

  • Position: 0-180°

  • Hanging: Standard Hanging/pole-controlled/electronic controlled

  • Safety: Safety Cable

WORKINGEN VIRONMENT

  • Temperature: -10°℃-40°℃

  • Humidity: 5%-95%

  • Temperature: -10°℃-40°℃

  • Humidity: 5%-95%

IP RATE

  • IP 20

  • IP 20

GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
play
DOWNLOADS
Filename
Size
Uploaded
Downloading
TEKMAND
icon
FINE 400C FS (TEKMAND)
2024-10-21
MA2
icon
FINE 400C FS (MA2)
2024-10-21
Avolites Pearl
icon
FINE 400C FS(Avolites Pearl)
2020-12-09
Avolites D4
icon
FINE 400C FS(Avolites D4)
2021-01-05
Drawings
icon

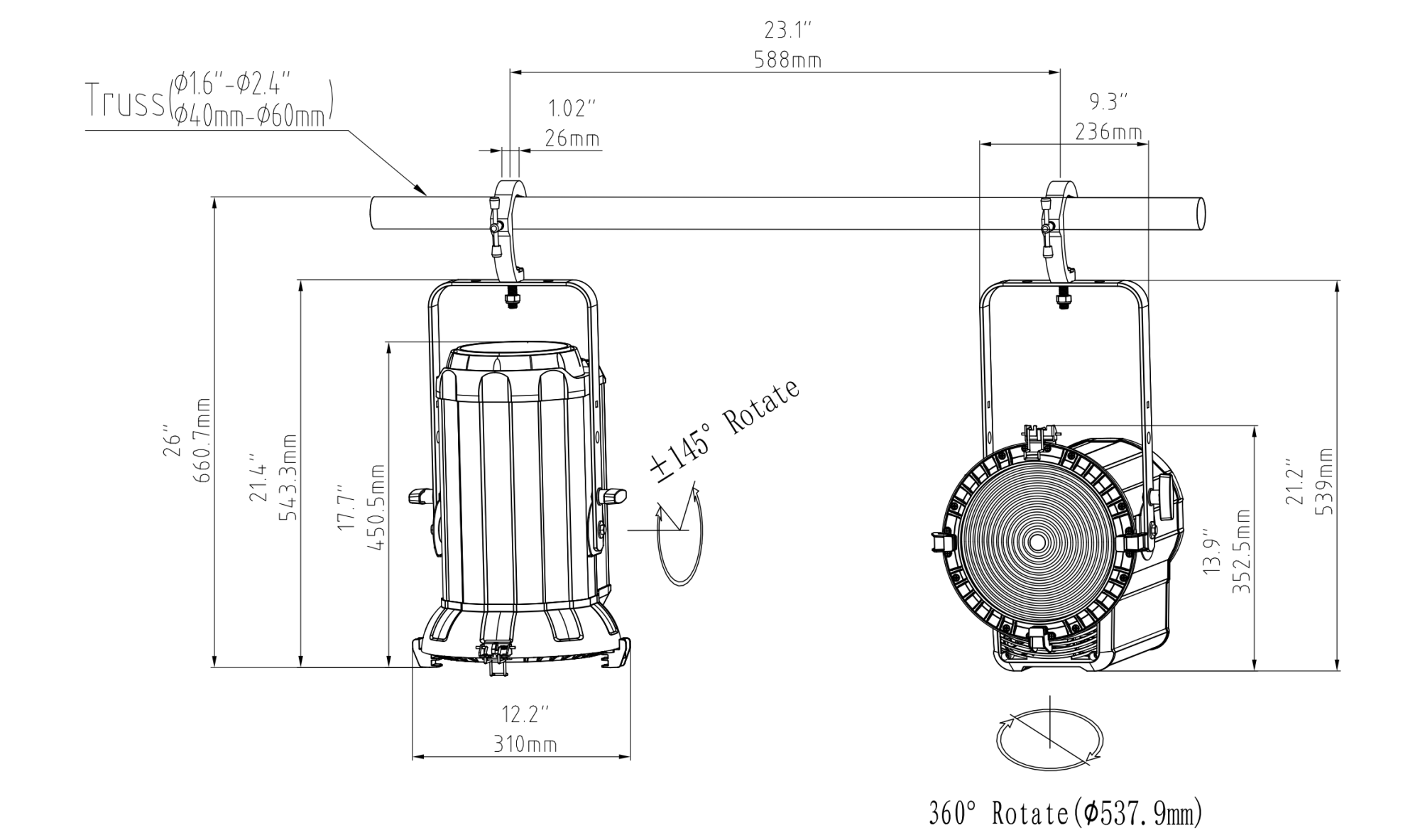

FINE 300T&400T&300D&400D&400C FS Dimension drawing
2024-10-31
icon
FINE 400C FS CAD drawings
2020-09-26
