FINE 150 FT IP
OVERVIEW
FINE 150 FT IP - the world's leading all-weather color professional footlight, 1 meter long. The four-color mixing system can produce a warm 2500K to a cool 10000K, while ensuring that both Ra and R9 are as high as 90 or above. The unique butterfly-shaped reflective bowl optical design can realize low 45° and high 45° light projection through independent control, or the two can be superimposed to 70° to meet the lighting needs of different distances. Each unit adopts a concealed design to effectively avoid the discomfort of looking directly at the light source and solve the ghosting problem caused by the light mixer. It can be adjusted within the projection angle range of ±5°, has an IP66 protection level, the connectors designed at the bottom and the touch button glossy glass make the appearance simple and fashionable. FINE 150 FT IP footlight is the first choice for white light and colored lighting before and after the stage. Whether it is theater, entertainment stage, exhibition, shopping mall or outdoor live performance, it can show its unique charm.
TECHNICAL SPECIFICATION
OPTICAL SYSTEM
  • Light source: 48 x 4W (RGBL) (4 in 1)

  • Life expectancy: 50000h

  • CRI: Ra>85, R9>85

  • Beam angle: 50 x 110°

  • Color temperature: 2500K-10000K

  • Light source: 48 x 4W (RGBL) (4 in 1)

  • Life expectancy: 50000h

  • CRI: Ra>85, R9>85

  • Beam angle: 50 x 110°

  • Color temperature: 2500K-10000K

CONTROL AND PROGRAMMING
  • Channel control:11(Stand)/7(Simp)/20(Pixels)

  • Protocol:DMX 512/RDM protocol

  • Menu display:1.3 inch black and white OLED display screen, Switchable Chinese and English language,touch screen operation,quick return button

  • Channel control:11(Stand)/7(Simp)/20(Pixels)

  • Protocol:DMX 512/RDM protocol

  • Menu display:1.3 inch black and white OLED display screen, Switchable Chinese and English language,touch screen operation,quick return button

POWER SUPPLY
  • Input voltage: 100-240V-, 50/60Hz

  • Input Power: 170W

  • PF≥0.95

  • Input voltage: 100-240V-, 50/60Hz

  • Input Power: 170W

  • PF≥0.95

WORKING ENVIRONMENT
  • Working temperature: -10°C ~40°C

  • Working temperature: -10°C ~40°C

DIMENSION AND WEIGHT
  • Fixture Dimension:1003 x 149 x 130mm

  • Package Dimension: 1216 x 574 x 567mm

  • Net Weight: 11.5 kg

  • Gross Weight: 115.5 kg

  • Fixture Dimension:1003 x 149 x 130mm

  • Package Dimension: 1216 x 574 x 567mm

  • Net Weight: 11.5 kg

  • Gross Weight: 115.5 kg

PACKAGE
  • 5 sets / flight case
  • 5 sets / flight case
INSTALL
  • Install horizontally or vertically, side-hung available

  • 1 piece suitable for 40-60mmTruss, integrated light hook

  • Install horizontally or vertically, side-hung available

  • 1 piece suitable for 40-60mmTruss, integrated light hook

IP RATE
  • IP 66

  • IP 66

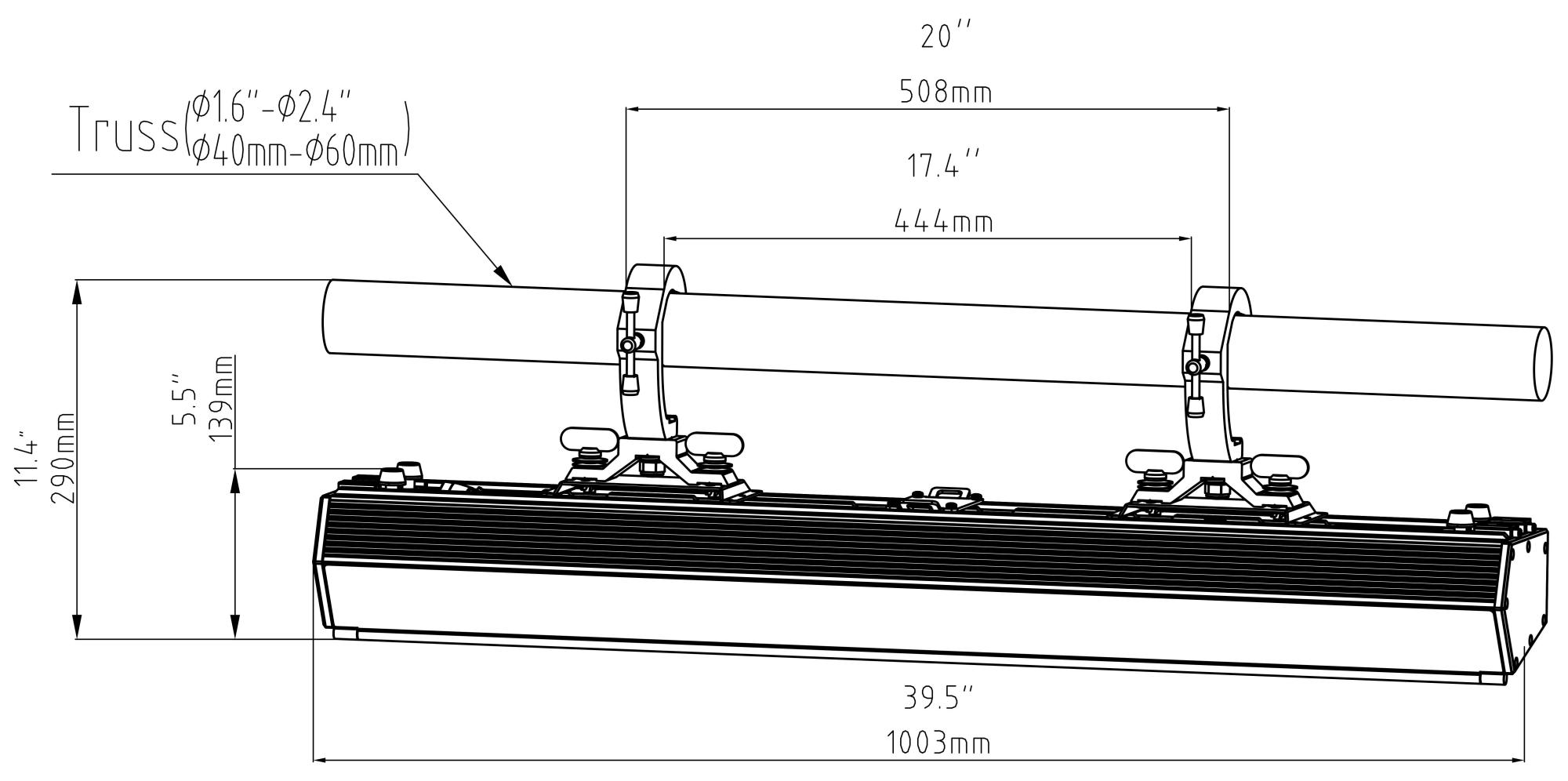

DIMENSIONS
990712210095 FINE 150 FT IP Dimension drawing-模型_00

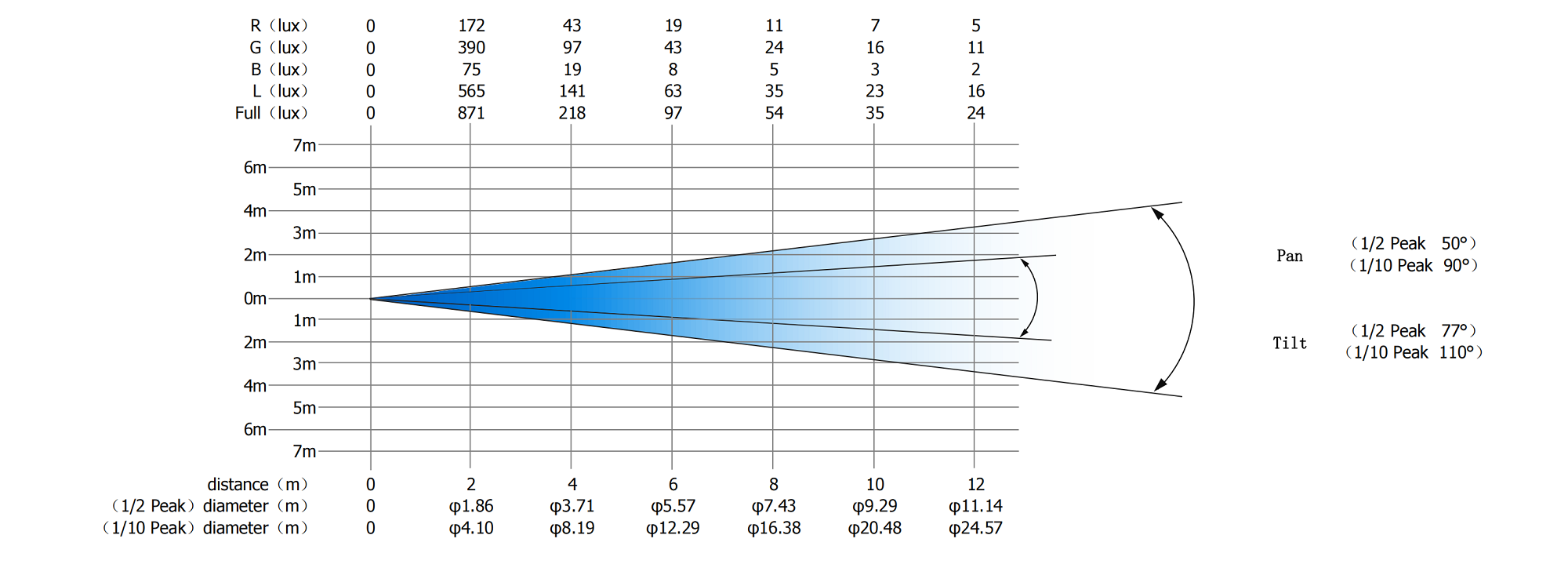

PHOTOMETRICS
FINE 150 FT IP照度表-20241015_00
GOBOS & COLORS
