FINE 150 FT
OVERVIEW

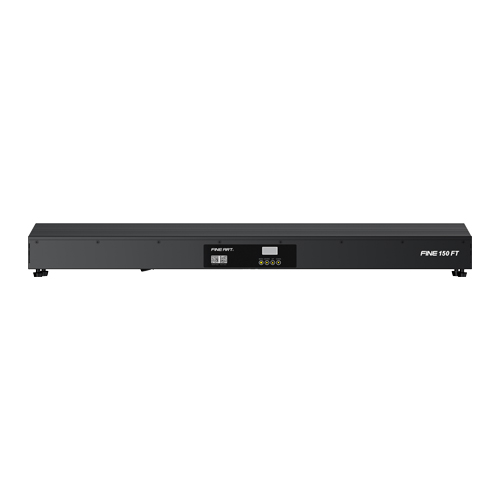

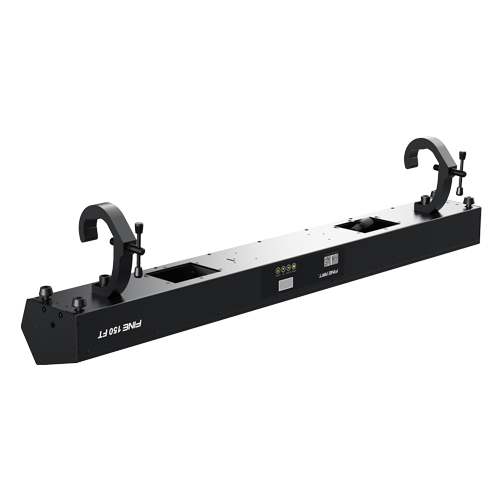

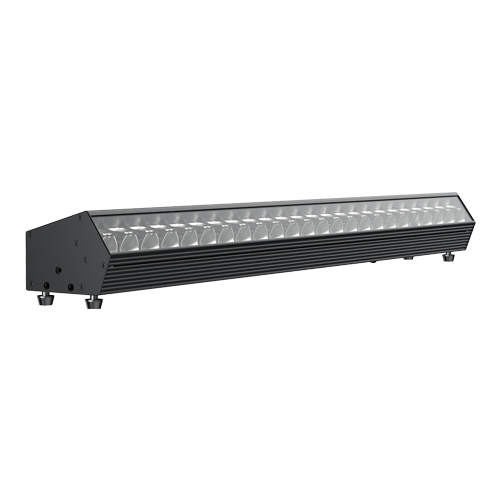

FINE 150 FT is a color professional footlight with a length of 1 meter. It is the first choice for white light and color lighting before and after the stage. FINE 150 FT adopts a four-color color mixing system, namely R, G, B, and W; the four colors can mix white light with a color temperature of 2500K~10000K, and both Ra and R9 can reach above 90. Designed with asymmetrical reflectors arranged in double rows, each row can be independently controlled to provide long or short throw capability for on-stage or off-stage lighting effects. The black lamp shell is not obtrusive from the audience's point of view to ensure that it will not affect the stage layout at any angle. All signal and power connections are located under the luminaire to keep audience sightlines and stage layout tidy. Each row of luminaires integrates 4 segments of independently controlled RGBW LED units, which can be used as performer position markers on the stage or safety warning lines on the edge of the stage.
TECHNICAL SPECIFICATION
OPTICAL SYSTEM

  • Light angle: 40° x 70°

  • Light source: 48 x 4W (RGBL) (4 in 1)

  • Lifespan: ≥50000h

  • Light angle: 40° x 70°

  • Light source: 48 x 4W (RGBL) (4 in 1)

  • Lifespan: ≥50000h

COLOR SYSTEM

  • RGBW stepless color mixing

  • Color temperature: 2500K~10000K

  • RGBW stepless color mixing

  • Color temperature: 2500K~10000K

​ EFFECTS

  • Strobe: fast strobe, multi-strobe mode selection, pulse, lightning, random

  • Macro: 100 types

  • Strobe: fast strobe, multi-strobe mode selection, pulse, lightning, random

  • Macro: 100 types

CONTROL AND PROGRAMMING

  • The upper and lower rows are indepen-dently controlled

  • Channel control: 16(stand)/10(simp)/ 20(pixels)

  • Communication protocol: DMX512/RDM protocol, Art-net protocol, wireless DMX512 (optional)

  • Menu display: black and white 1.3- inch OLED display, Chinese/ English language can be switched at will, font can be reversed 180° for display, and key operation mode

  • The upper and lower rows are indepen-dently controlled

  • Channel control: 16(stand)/10(simp)/ 20(pixels)

  • Communication protocol: DMX512/RDM protocol, Art-net protocol, wireless DMX512 (optional)

  • Menu display: black and white 1.3- inch OLED display, Chinese/ English language can be switched at will, font can be reversed 180° for display, and key operation mode

ELECTRONIC CONTROL TECHNOLOGY

  • The upper and lower rows are independently controlled by 4 sections

  • Constant current driveIntelligent regulation, power adaptive technology

  • Heat dissipation system: natural heat dissipationElectronic sensing detection

  • DMX channel level monitoring;Query lamp information, lamp use time, fault information through the display screen

  • With RDM data two-way transmission function

  • DMX address code change, light bulb switch, machine reset, mode conversion can be completed from the console

  • The software upgrade device can be used to connect the lamp DMX port to upgrade the software

  • Input signal isolation protection function

  • The upper and lower rows are independently controlled by 4 sections

  • Constant current driveIntelligent regulation, power adaptive technology

  • Heat dissipation system: natural heat dissipationElectronic sensing detection

  • DMX channel level monitoring;Query lamp information, lamp use time, fault information through the display screen

  • With RDM data two-way transmission function

  • DMX address code change, light bulb switch, machine reset, mode conversion can be completed from the console

  • The software upgrade device can be used to connect the lamp DMX port to upgrade the software

  • Input signal isolation protection function

POWER SUPPLY

  • Input voltage: 100-240V~, 50/60Hz

  • Input power: 190W

  • PF≥0.95

  • Input voltage: 100-240V~, 50/60Hz

  • Input power: 190W

  • PF≥0.95

WORKING ENVIRONMENT

  • Working temperature: -10°C ~40°C

  • Working temperature: -10°C ~40°C

DIMENSION AND WEIGHT

  • Product size: 984 x 139 x 119mm

  • Packing size: 1127 x 502 x 533mm

  • Net weight: 8.2 kg

  • Gross Weight: 94 kg

  • Product size: 984 x 139 x 119mm

  • Packing size: 1127 x 502 x 533mm

  • Net weight: 8.2 kg

  • Gross Weight: 94 kg

PACKAGE

  • 5 pcs / flight case

  • 5 pcs / flight case

INSTALL

  • Horizontal or vertical installation

  • 2 pcs suitable for 40~60 cm Truss, integrated light hook

  • Safety rope connection hole

  • Horizontal or vertical installation

  • 2 pcs suitable for 40~60 cm Truss, integrated light hook

  • Safety rope connection hole

IP RATE

  • IP 20

  • IP 20

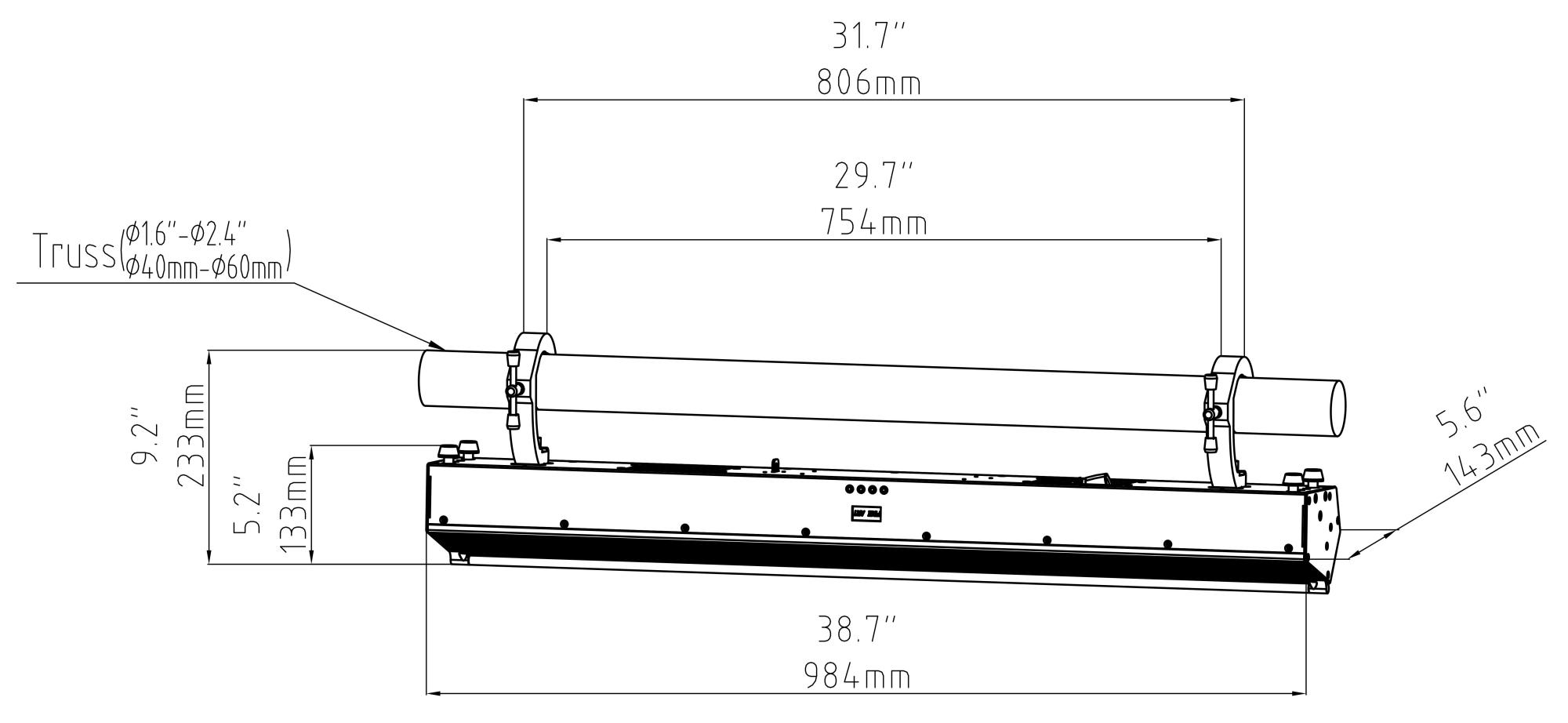

DIMENSIONS
FINE 150 FT Dimension drawing-模型_00

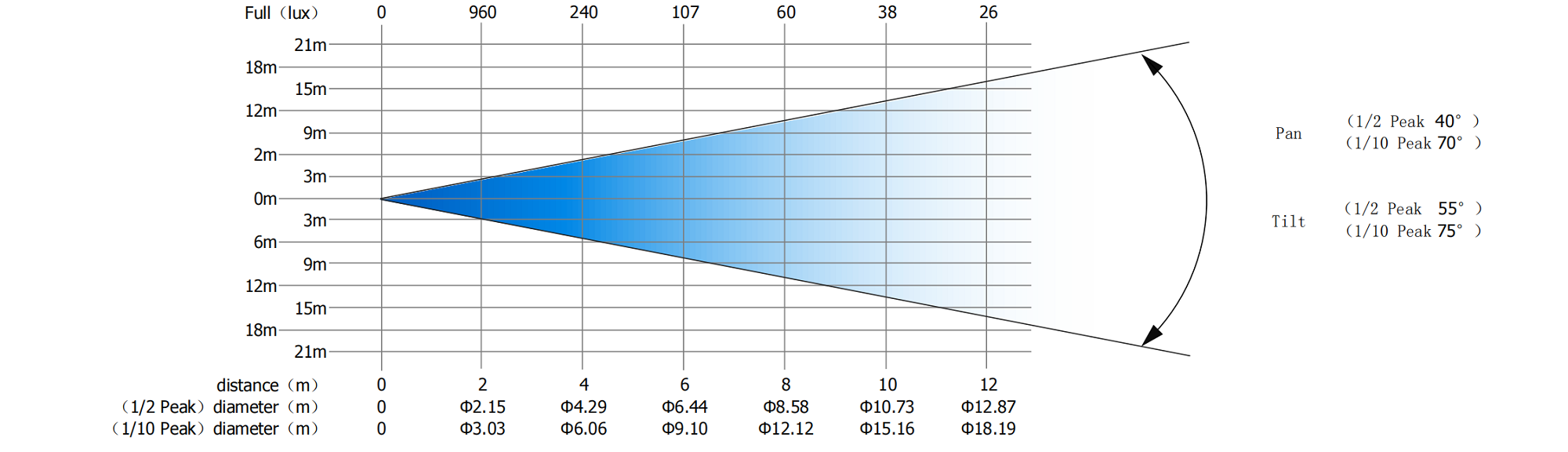

PHOTOMETRICS
FINE 150 FT 照度表（英文版）-20241015_00
