HomePRODUCTSSTATIC LIGHTSFINE 300C PANEL

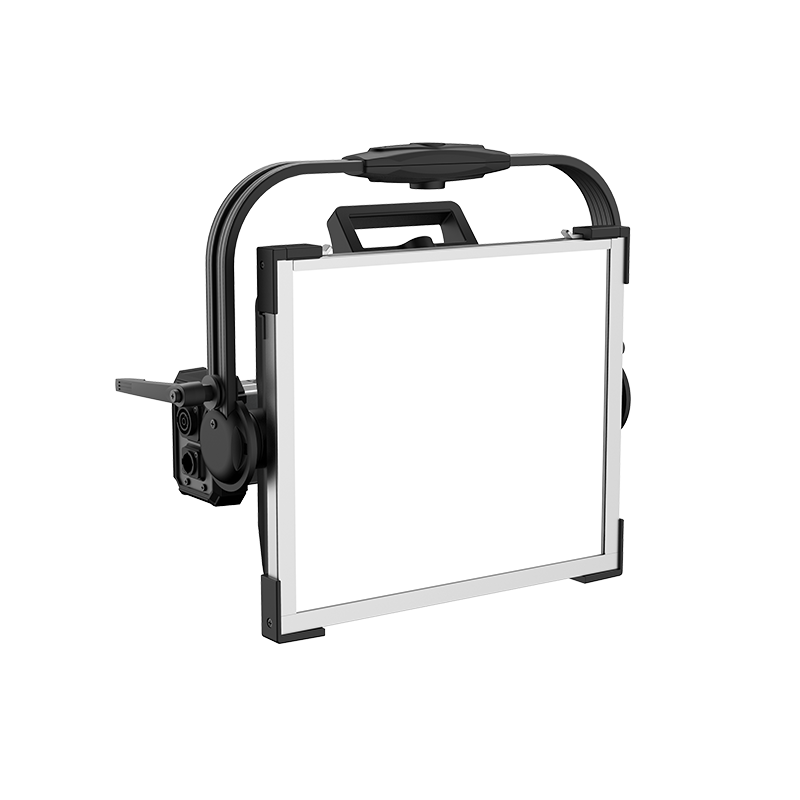

FINE 300C PANEL
OVERVIEW
FINE 300C PANEL is advanced LED softlight fixture.I With compact and free combination installation design, fashionable and simple profile, it achieves the outstanding balance between light efficiency and light quality. Use RGBW 4 in 1 LEDs light source, 355 x 300mm luminous area, separate to 3 single-RGBW-controlled segments. Its unique optical system makes the soft light effect extremely outstanding; It offers stable color temperature from 1,800K to 10,000K through RGBW mixing and perfect light quality. Ra ≥ 95, R9 ≥ 95, TLCI ≥ 97, CQS ≥ 97; Built-in LEE and Rosco standard color filters, convenient to fast apply colors and effect macros such as flame, candlelight, lightning, etc. FINE 300C PANEL is equipped with FINE ART cloud platform and Bluetooth internet communication technic, can intelligently control and manage the fixture by FINE ART Cloud.
TECHNICAL SPECIFICATION
OPTICAL SYSTEM

  • Light Source: R: 252*0.5W  G: 252*1W  B: 252*1W  W: 252*0.5W

  • Angle: 115°

  • Life Span: ≥50,000h

  • Luminous Flux: 13000Lm

  • Light Source: R: 252*0.5W  G: 252*1W  B: 252*1W  W: 252*0.5W

  • Angle: 115°

  • Life Span: ≥50,000h

  • Luminous Flux: 13000Lm

COLOR SYSTEM

  • Built-in LEE and Rosco standard color filters

  • Even color mixing system and rainbow effect; Equipped with HSIC color management system and green adjustment function for color temperature of white light

  • Adjustable color temperature selection 1800K-10000K

  • CRI: Ra>95，R9>95

  • Green-Magenta adjustment: continuous adjustment (Green: from lowest to highest)

  • Built-in LEE and Rosco standard color filters

  • Even color mixing system and rainbow effect; Equipped with HSIC color management system and green adjustment function for color temperature of white light

  • Adjustable color temperature selection 1800K-10000K

  • CRI: Ra>95，R9>95

  • Green-Magenta adjustment: continuous adjustment (Green: from lowest to highest)

EFFECTS

  • Fast Strobe: 1 ~ 20 Hz

  • Built-in effects: flame, candlelight, lightning, etc

  • Dimming Curve: 4

  • Dimming Frequency: 1.2K, 6K, 12K, 24K

  • Dimming: continuous 0 to 100%

  • Fast Strobe: 1 ~ 20 Hz

  • Built-in effects: flame, candlelight, lightning, etc

  • Dimming Curve: 4

  • Dimming Frequency: 1.2K, 6K, 12K, 24K

  • Dimming: continuous 0 to 100%

CONTROL AND PROGRAMMING

  • CctRgbw16b 20/CCT 7/CCT16b 10 /CctHsi 10/CctHsi16b 16/Rgbw 9/ Rgbw16b 14/ HSI 7/GELV2 17/ Pixels 15/leCctRgbw 17/ leCctRgbw16b 33/ Effect8B 13

  • Protocol: Standard DMX512, RDM, two Ethernet ports, Bluetooth, wireless DMX512

  • Data Connection: 3-pin XLR input/ output

  • Display: LCD display+button+knob

  • CctRgbw16b 20/CCT 7/CCT16b 10 /CctHsi 10/CctHsi16b 16/Rgbw 9/ Rgbw16b 14/ HSI 7/GELV2 17/ Pixels 15/leCctRgbw 17/ leCctRgbw16b 33/ Effect8B 13

  • Protocol: Standard DMX512, RDM, two Ethernet ports, Bluetooth, wireless DMX512

  • Data Connection: 3-pin XLR input/ output

  • Display: LCD display+button+knob

ELECTRIC CONTROL TECHNOLOGY

  • Software update via DMX

  • Silent fan, intelligent speed control

  • Intelligent temperature control, ensure LED lifespan

  • Software update via DMX

  • Silent fan, intelligent speed control

  • Intelligent temperature control, ensure LED lifespan

POWER SUPPLY

  • Input Voltage: 100-240V~,50/60Hz

  • Input Power: 260W@100V

  • PF≥0.98

  • Input Voltage: 100-240V~,50/60Hz

  • Input Power: 260W@100V

  • PF≥0.98

PACKAGE

  • 4 sets / flight case

  • 1 set / carton

  • 4 sets / flight case

  • 1 set / carton

DIMENSION AND WEIGHT

  • Fixture Dimension: 516.5 x 246 x 538mm

  • Package Dimension: 814 x 704 x 647 (flight case) 587 x 340 x 475mm (carton)

  • Net Weight: 13 kg (with barn door)

  • Gross Weight: 80 kg

  • Fixture Dimension: 516.5 x 246 x 538mm

  • Package Dimension: 814 x 704 x 647 (flight case) 587 x 340 x 475mm (carton)

  • Net Weight: 13 kg (with barn door)

  • Gross Weight: 80 kg

INSTALL

  • Hang: standard hang

  • Safety: supplementary Safety cable

  • Hang: standard hang

  • Safety: supplementary Safety cable

IP RATE

  • IP 20

  • IP 20

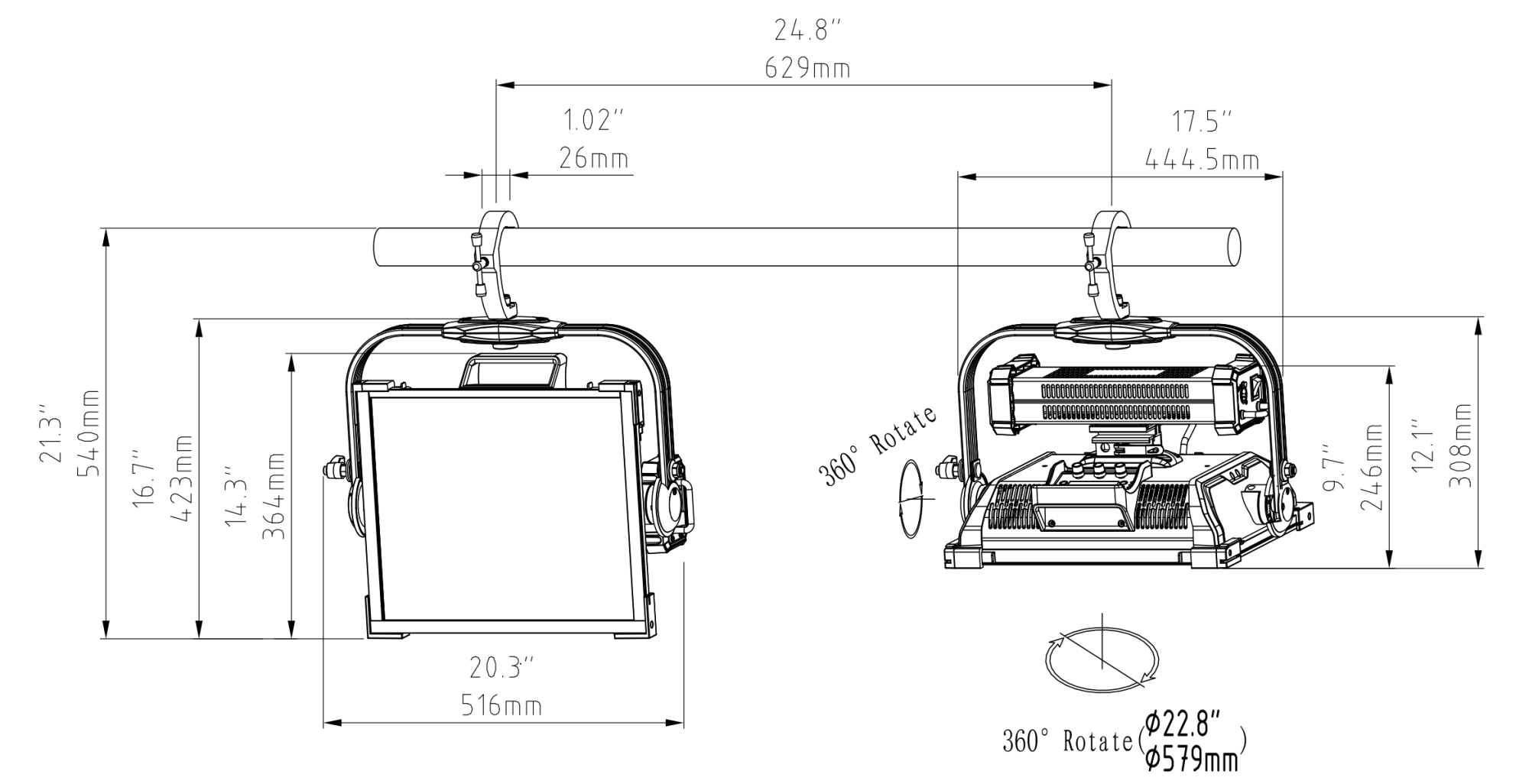

DIMENSIONS

FINE 300C&300D&300T PANEL

FINE 300C&300D&300T PANEL Dimension drawing 2024-10-24_00(1)

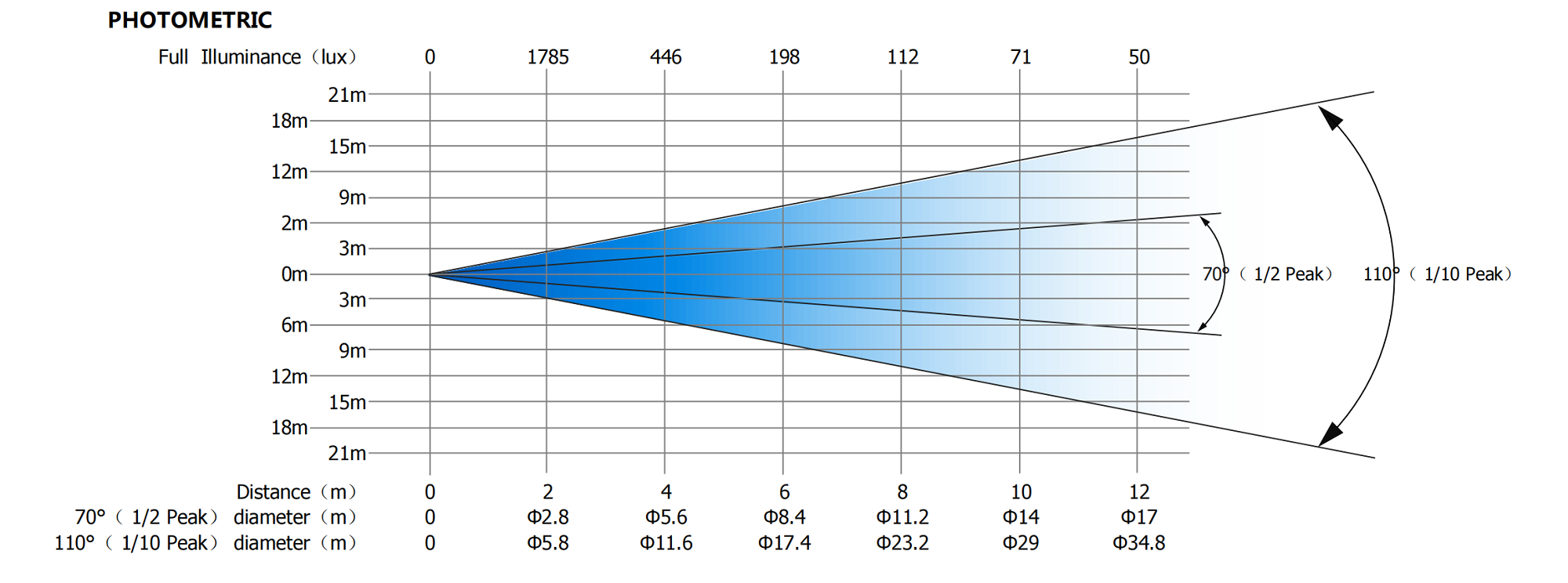

PHOTOMETRICS
FINE 300C PANEL 照度表（英文版）-20241015_00
GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
Filename
Size
Uploaded
Downloading
TEKMAND
icon
FINE 300C PANEL (TEKMAND)
2024-10-21
MA2
icon
FINE 300C PANEL (MA2)
2024-10-21
Drawings
icon
FINE 300C&300D&300T PANEL
2024-10-31
