OVERVIEW
FINE 1514DG is LED par with strong function by using importing RGBW LEDs to make pure color and high light efficiency. Under the waterproof design concept & natural heat dissipating without fan and noiseless features; it enables to be used in many different occasions to fulfill all kinds of in-door and out-door use and make it become the first choice for lighting, performance and diverse effect shows.
Share
PDF

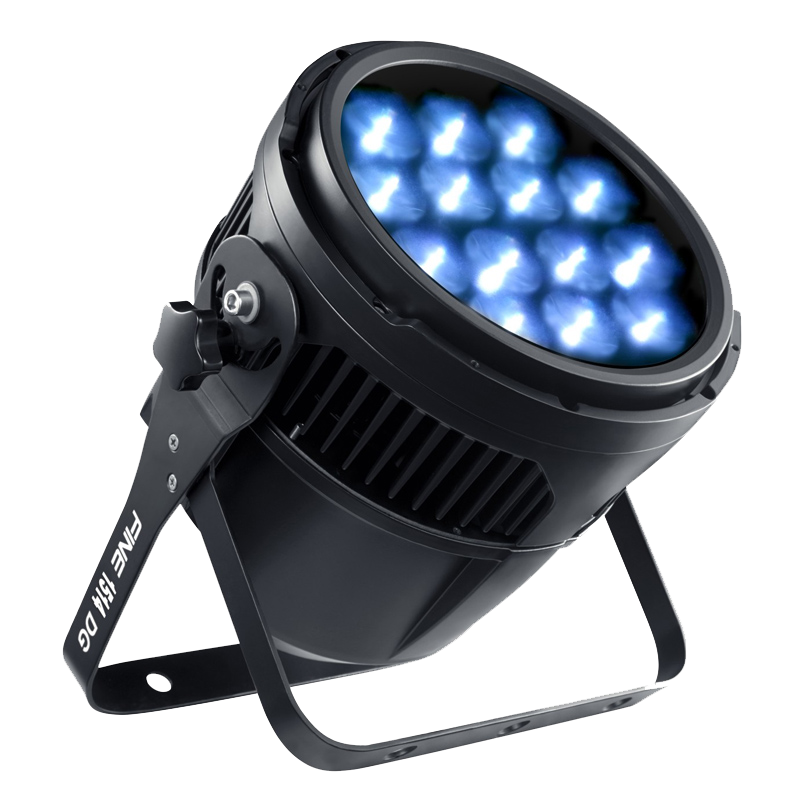

FINE 1514 DG
FINE 1514 DG
FINE 1514DG is LED par with strong function by using importing RGBW LEDs to make pure color and high light efficiency. Under the waterproof design concept & natural heat dissipating without fan and noiseless features; it enables to be used in many different occasions to fulfill all kinds of in-door and out-door use and make it become the first choice for lighting, performance and diverse effect shows.
TECHNICAL SPECIFICATION
LIGHT SOURCE
Light Source: 14pcs x 15W 4 in 1
LEDs Average Life Span > 50,000h
OPTICAL SYSTEM
Zoom Angle: 9°/12°/24°(1/2Peak)
15°/20°/45°(1/10Peak)
COLOR SYSTEM
RGBW 4 in 1
CONTROL AND PROGRAMMING
Control channel: 4/5/10 control
modes Protocol: Standard DMX512
Menu Display: LED display DMX Signal Connection: 3-pin XLR input/output
POWER SUPPLY
Input voltage: 100-240V~,50/60Hz
Input Power: 190W
PF≥0.98
DIMENSION AND WEIGHT
Fixture Dimension: 300.8 x 240.6 x 326.2mm
Package Dimension: 906 x 556 x 566mm (flight case)
370 x 300 x 400mm (carton)
Net Weight: 9 kg (fixture)
Gross Weight: 88.6 kg (flight case) / 10.2kg (carton)
PACKAGE
6 sets / flight case
1 set / carton
IP RATE
IP 66 (IP67 can be customized)

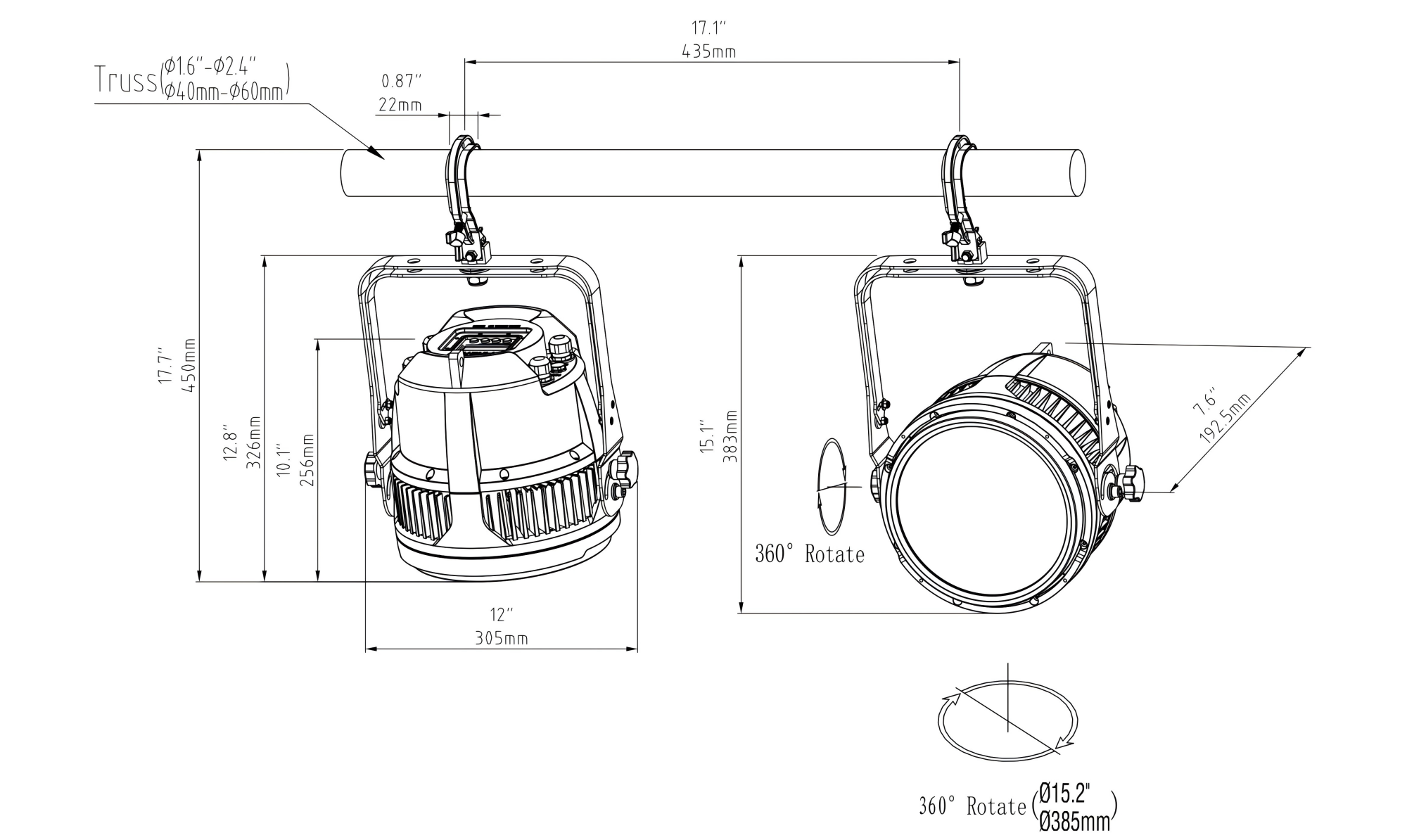

DIMENSIONS

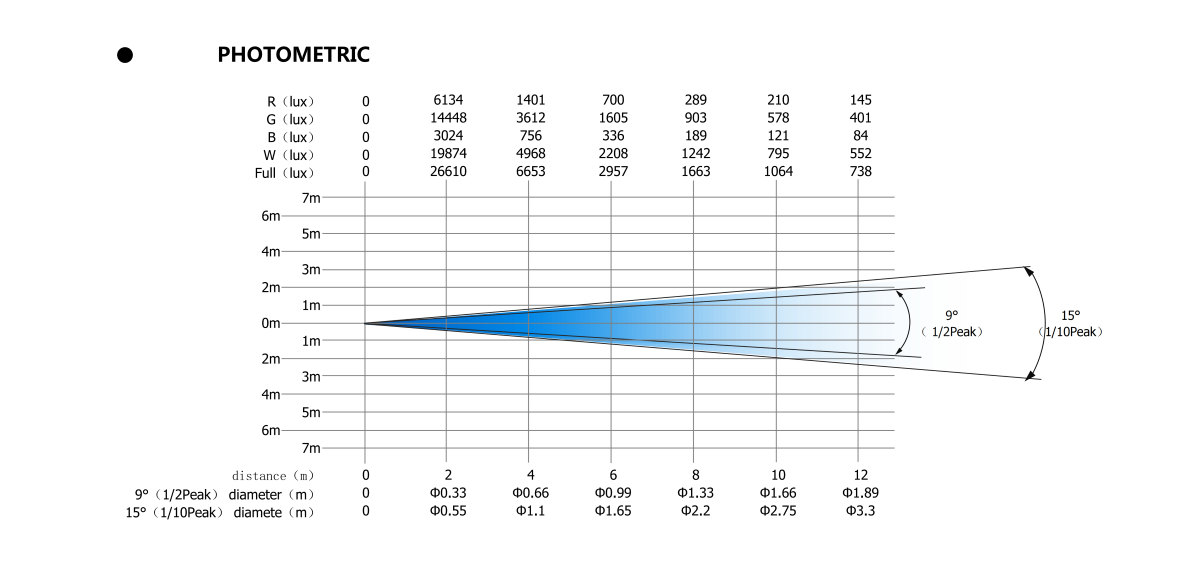

PHOTOMETRICS
