OVERVIEW
FINE 300D/400D LEKO are high color temperature （5600k）ellipsoidal lightings. With its innovative optics and cooling system design and using high CRI 300W/400W LED module, this feature has 3 high characteristics: high light efficiency, high CRI and high definition. By the body and lens isolation technology, it follows the conventional LEKO design idea and usage method with separate combination for light source and imaging, which is equipped with shutter and make convenient application.
Share
PDF
FINE 300D/400D LEKO
FINE 300D/400D LEKO
FINE 300D/400D LEKO are high color temperature （5600k）ellipsoidal lightings. With its innovative optics and cooling system design and using high CRI 300W/400W LED module, this feature has 3 high characteristics: high light efficiency, high CRI and high definition. By the body and lens isolation technology, it follows the conventional LEKO design idea and usage method with separate combination for light source and imaging, which is equipped with shutter and make convenient application.
TECHNICAL SPECIFICATION
OPTICAL SYSTEM
Light Source: 400W(300W) LUMILEDS LED module
Life Span: ≥50,000 hrs
Lens: 26°(5 °/10°/19°/36°/50°/15°-30° /25°-50 °for option)
Color Temperature: 5600K
CRI: Ra＞90
POWER SUPPLY
Power Supply: 100-240V ~ 50/60Hz
Input Power: 410W (310W)
PF≥0.99
ELECTRONIC CONTROL TECHNOLOGY
Protocol: DMX512
Channel Mode: 1/3/4
Control Panel: LED screen + button
DIMENSION AND WEIGHT
Fixture Dimension:
701 x 292 x 496mm
Package Dimension:
1265 x 700 x 505 mm (4 pcs / flight case) Gross Weight: 104.4 kg
780 x 750 x 515mm (2 pcs / flight case) Gross Weight: 62.4 kg
Net Weight: 13 kg (fixture)
PACKAGE
4 pcs / flight case
2 pcs / flight case
IP RATE
IP 20
DIMENSIONS
FINE 200T&300T&400T&300D&400D LEKO Dimension drawing
PHOTOMETRICS

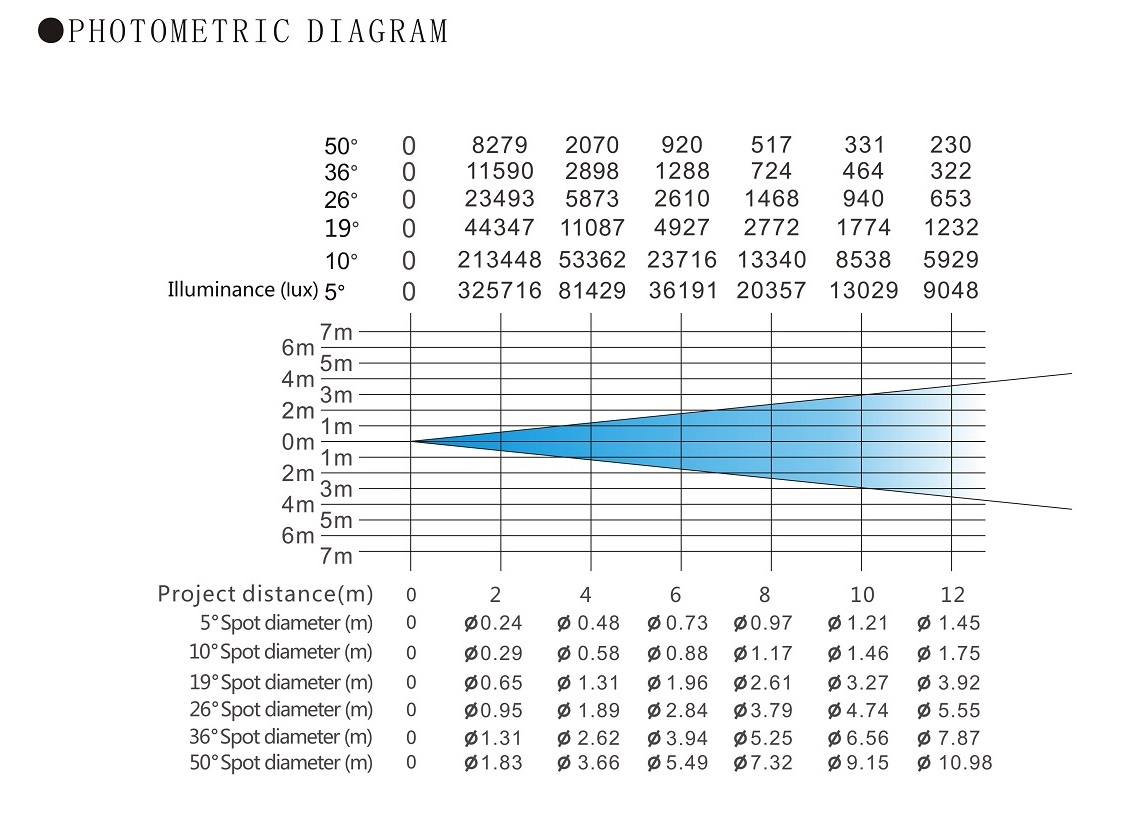

FINE 300D LEKO

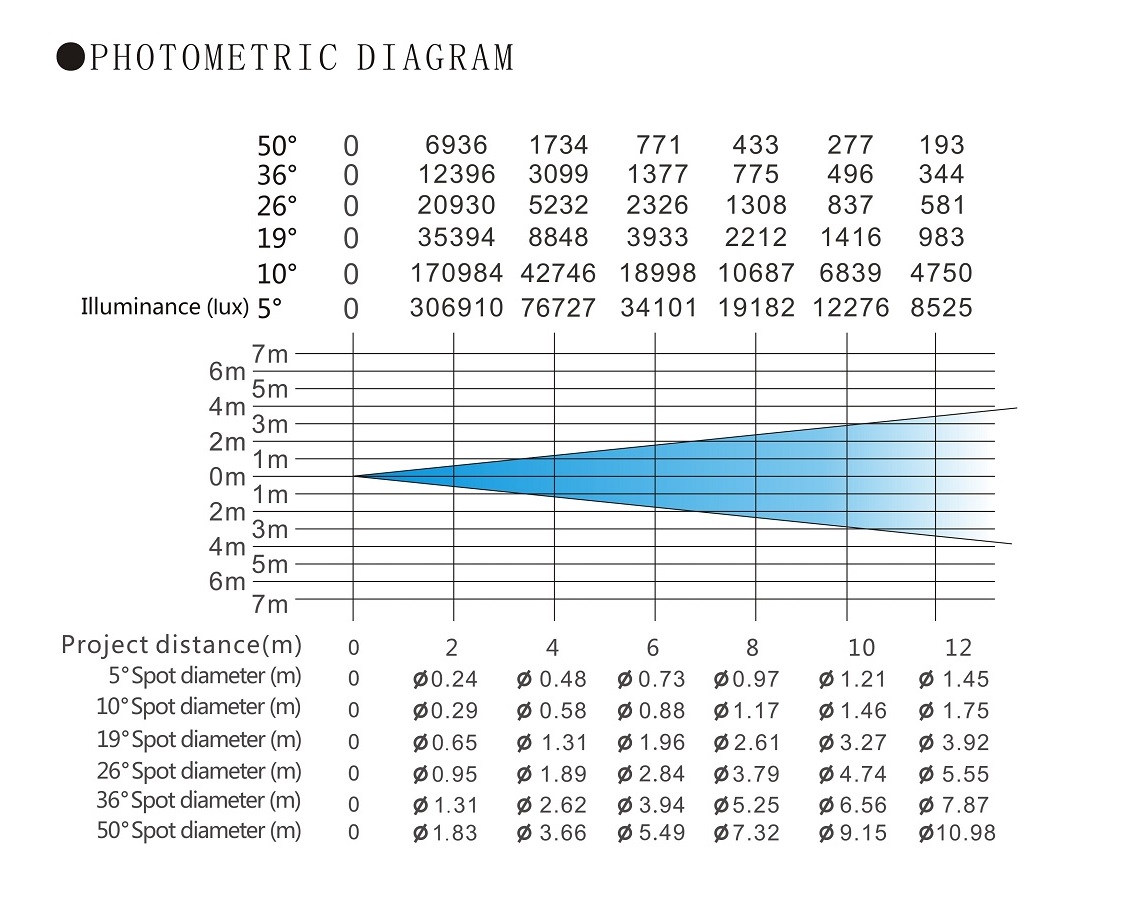

FINE 400D LEKO
