FINE 600L BSWF
OVERVIEW

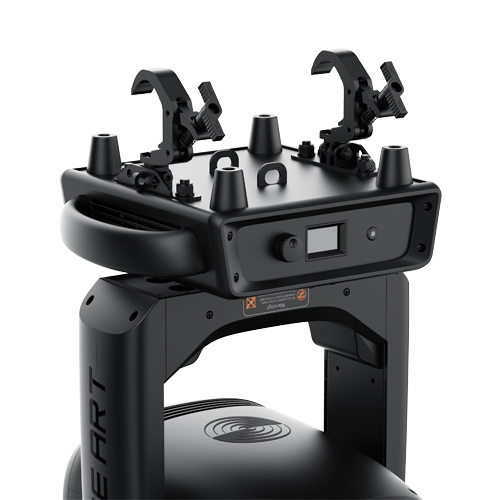

FINE 600L BSWF is a professional framing light with 600W LED module as light source using the latest technology. The product is famous for its small size and light weight, which only weighs 29kg with one lamp hook. Unique optical design, imaging keeps clear from small to large, nearly 9 times optical zoom, the maximum angle is 50°. The light source adopts customized LED light source module with good color rendering, Ra can reach more than 90, and the designed life of the light source is 20000 hours. It’s equipped a set of self-developed high-definition framing system, the framing can rotate ±90. The linear CMY+CTO color mixing system gives full play to the color gamut. The products are suitable for TV stations, theaters, performances, entertainment and other high-end places.
TECHNICAL SPECIFICATION
OPTICAL SYSTEM
  • Light Source: 600W LED module

  • The diameter of optical lens:  140mm

  • Zoom Range: 6° - 50°

  • CRI: Ra>90

  • CTO: 6250±250K

  • Light Source: 600W LED module

  • The diameter of optical lens:  140mm

  • Zoom Range: 6° - 50°

  • CRI: Ra>90

  • CTO: 6250±250K

COLOR SYSTEM
  • CMY infinite color mixing

  • CTO linear adjustment(2700k- 6000k)

  • 1 color wheel with 8 color filters+white light

  • CMY infinite color mixing

  • CTO linear adjustment(2700k- 6000k)

  • 1 color wheel with 8 color filters+white light

GOBO SYSTEM
  • 1 rotating gobo wheel with 7 gobos+open

  • 1 fixed gobo wheel with 9 gobos+open

  • 1 rotating gobo wheel with 7 gobos+open

  • 1 fixed gobo wheel with 9 gobos+open

FRAMING SYSTEM
  • 1 set of full directional framing system, support ± 90° rotation

  • 1 set of full directional framing system, support ± 90° rotation

EFFECTS
  • 1 rotation 4-facet prism can rotate bidirectional

  • 1 independent frost soft-light

  • Electronic strobe

  • Fast electric iris, 5-100 % linear adjustment

  • 1 rotation 4-facet prism can rotate bidirectional

  • 1 independent frost soft-light

  • Electronic strobe

  • Fast electric iris, 5-100 % linear adjustment

MOVEMENT PARAMETER
  • Pan 540°, Tilt 270°

  • Pan and Tilt use photoelectric position reset system, automatically error correction

  • Pan 540°, Tilt 270°

  • Pan and Tilt use photoelectric position reset system, automatically error correction

CONTROL AND PROGRAMMING
  • Control channel: 32(standard)/40(16 bit)/ 44(extended) 3 channel modes

  • Protocol: Standard DMX512, Art-net

  • Menu display: 2.0-inch LCD black and white display, resolution 128×64dots; Chinese and English can be switched freely, the font can be reversed 180° display, Optional touch-type and contactless roller operation mode

  • Control channel: 32(standard)/40(16 bit)/ 44(extended) 3 channel modes

  • Protocol: Standard DMX512, Art-net

  • Menu display: 2.0-inch LCD black and white display, resolution 128×64dots; Chinese and English can be switched freely, the font can be reversed 180° display, Optional touch-type and contactless roller operation mode

POWER SUPPLY
  • Input voltage: 100-240V~,50/60Hz

  • Rated power: 800W@100V

  • PF≥0.98

  • Input voltage: 100-240V~,50/60Hz

  • Rated power: 800W@100V

  • PF≥0.98

DIMENSION AND WEIGHT
  • Fixture Dimension: 400 x 310 x 728mm

  • Package Dimension:

    836 x 603 x 972mm (flight case)

    865 x 440 x 510mm(carton)

  • Net Weight: 29 kg (fixture)

  • Gross Weight: 120 kg (flight case), 36 kg (carton)

  • Fixture Dimension: 400 x 310 x 728mm

  • Package Dimension:

    836 x 603 x 972mm (flight case)

    865 x 440 x 510mm(carton)

  • Net Weight: 29 kg (fixture)

  • Gross Weight: 120 kg (flight case), 36 kg (carton)

PACKAGE
  • 2 sets / flight case

  • 1 set / carton

  • 2 sets / flight case

  • 1 set / carton

IP RATE
  • IP 20

  • IP 20

PHOTOMETRICS
FINE 600L BSWF 照度表(英文版)-20230824_00
GOBOS & COLORS
Color Wheel 1
01
02
03
04
05
06
07
08
Fixed Gobo Wheel
01
02
03
04
05
06
07
08
09
Rotating Gobo Wheel 1
01
02
03
04
05
06
07
OPTIONAL ACCESSORIES
