FINE 4019 PIXIE IP
OVERVIEW

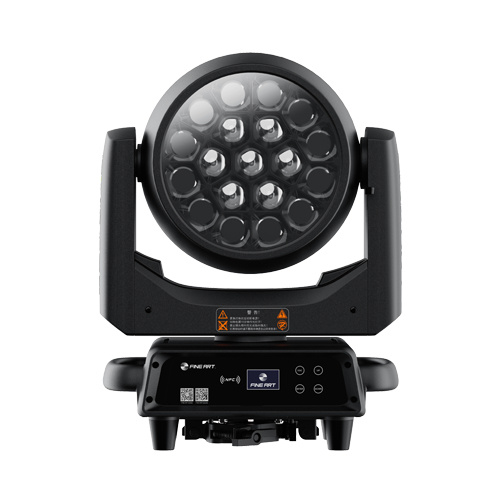

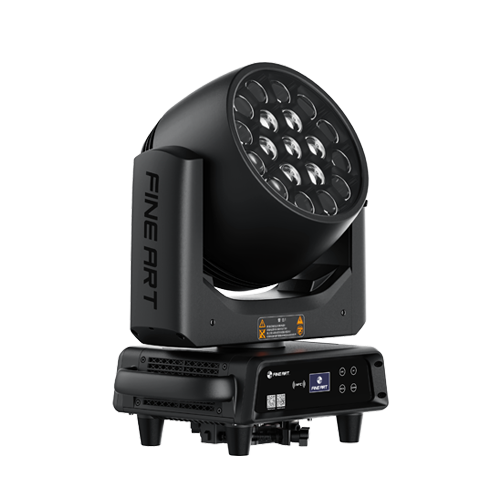

FINE 4019 PIXIE IP is a professional high-power LED all-weather moving head wash light. It adopts a new optical design, taking into account uniform color mixing and soft effects, while maintaining a high level of optical efficiency. The illumination can reach 25,000lux at 6 meters at a small angle. 4°~40° zoom range to meet light needs at different distances. The dimming is smooth and delicate, and the light starts at low brightness without jitter, fully meeting the dimming requirements of drama. The linear color temperature adjustable range is 2500k-8000k, and the brightness is basically stable when the color temperature changes. IP65 protection grade design, the entire lamp adopts aluminum alloy die-cast shell to ensure stable use in all weather outdoors. The hidden folding light hook simplifies the assembly and disassembly process. Light and compact, weighing only 24kg, it is suitable for various performance needs both indoors and outdoors.
TECHNICAL SPECIFICATION
LIGHT SOURCE

  • light source: Imported 19pcsx40W, RGBW 4 in 1 LED lens

  • Average Life Span>50000h

  • light source: Imported 19pcsx40W, RGBW 4 in 1 LED lens

  • Average Life Span>50000h

OPTICAL SYSTEM

  • Beam angle : 4°～40°

  • Beam angle : 4°～40°

EFFECTS

  • Dimming: 0-100% linear dimming, 65536 level dimming accuracy

  • Strobe: 1-25Hz, with multiple options for macro effects

  • Dimming: 0-100% linear dimming, 65536 level dimming accuracy

  • Strobe: 1-25Hz, with multiple options for macro effects

MOVEMENT PARAMETER

  • Angle: Pan 540°, Tilt 240°, 16 Bit control

  • Applied by magnetic encoder positioning system for horizontal and vertical location

  • Angle: Pan 540°, Tilt 240°, 16 Bit control

  • Applied by magnetic encoder positioning system for horizontal and vertical location

CONTROL AND PROGRAMMING

  • Channel control: 21（Standard）/78(RGB) /97(RGBW)/35(SHAP)

  • Protocol: DMX512/RDM , optional : Art-net, wireless DMX512

  • Menu display: 2.0-inch black and white LCD display screen, Chinese/English language can be freely switched, 180 °inverted displaying available, touch button operation mode, quick return key

  • Channel control: 21（Standard）/78(RGB) /97(RGBW)/35(SHAP)

  • Protocol: DMX512/RDM , optional : Art-net, wireless DMX512

  • Menu display: 2.0-inch black and white LCD display screen, Chinese/English language can be freely switched, 180 °inverted displaying available, touch button operation mode, quick return key

POWER SUPPLY

  • Input voltage: 100-240V~ 50/60Hz

  • Input power: 850W

  • PF≥0.98

  • Power connection : Fixed to fixture

  • Singal connection: 3 pin DMX in/out

  • Input voltage: 100-240V~ 50/60Hz

  • Input power: 850W

  • PF≥0.98

  • Power connection : Fixed to fixture

  • Singal connection: 3 pin DMX in/out

DIMENSION AND WEIGHT

  • Fixture Dimension: 405mm(15.9")(length) x 300mm(11.8")( width) x 484mm(19")(height)

  • Package Dimension: 840mm(33")(length) x 522mm(20.6")( width) x 720mm(28.3")(height) (flight case)

  • Net Weight: 22 kg (fixture)

  • Gross Weight: 86.7 kg (flight case)

  • Fixture Dimension: 405mm(15.9")(length) x 300mm(11.8")( width) x 484mm(19")(height)

  • Package Dimension: 840mm(33")(length) x 522mm(20.6")( width) x 720mm(28.3")(height) (flight case)

  • Net Weight: 22 kg (fixture)

  • Gross Weight: 86.7 kg (flight case)

PACKAGE

  • 2 pcs / flight case

  • 1 pc / carton case

  • 2 pcs / flight case

  • 1 pc / carton case

INSTALL

  • Or horizontally or vertically, side-hung available

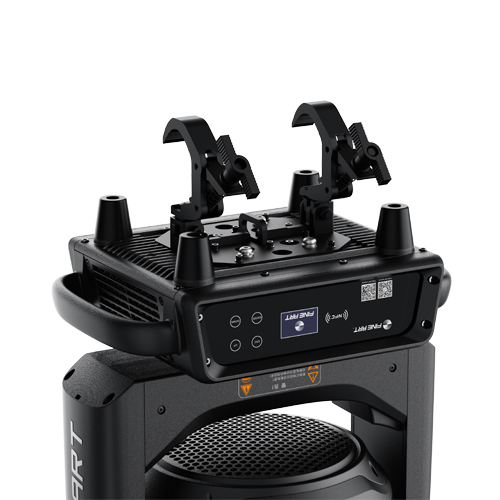

  • all-in-one folding light hooks/seperatable hooks forφ50～60mm truss

  • Safety wire fixing hole

  • Or horizontally or vertically, side-hung available

  • all-in-one folding light hooks/seperatable hooks forφ50～60mm truss

  • Safety wire fixing hole

IP RATE

  • IP 66

  • IP 66

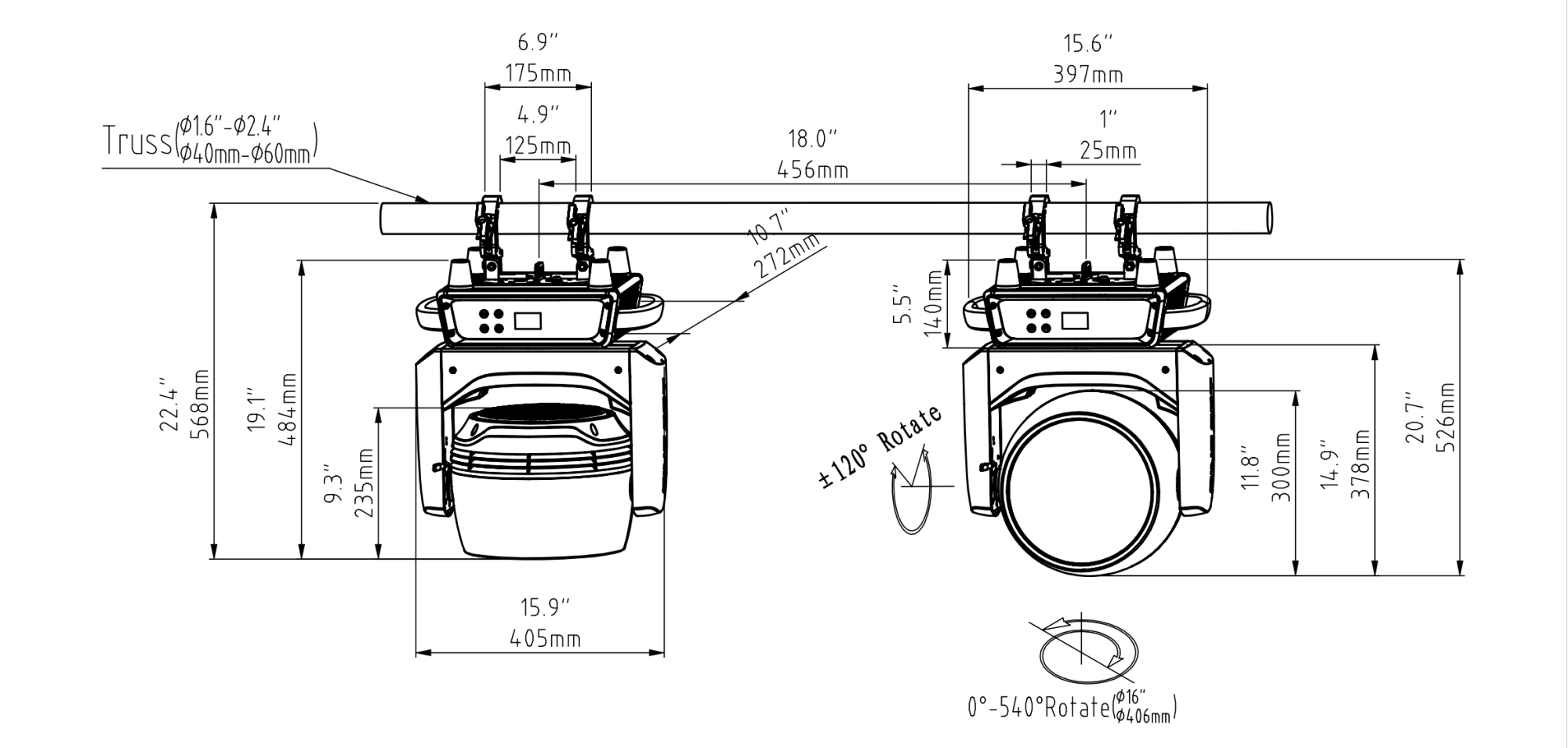

DIMENSIONS

990712210092 4019 PIXIE IP Dimension drawing2024-10-14_00

PHOTOMETRICS
FINE 4019 PIXIE IP照度表(绎立锐光光源 导光柱出光面5X5)-20241014_00
GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
play
DOWNLOADS
Filename
Size
Uploaded
Downloading
TEKMAND
icon
FINE 4019 PIXIE IP (TEKMAND)
2024-10-23
MA2
icon
FINE 4019 PIXIE PLUS IP (MA2)
2024-10-24
DMX chart
icon
FINE 4019 PIXIE IP DMX chart
2024-10-22
Drawings
icon
FINE 4019 PIXIE IP Dimension Drawings
2024-10-15
