FINE 4037 WASH PLUS
OVERVIEW

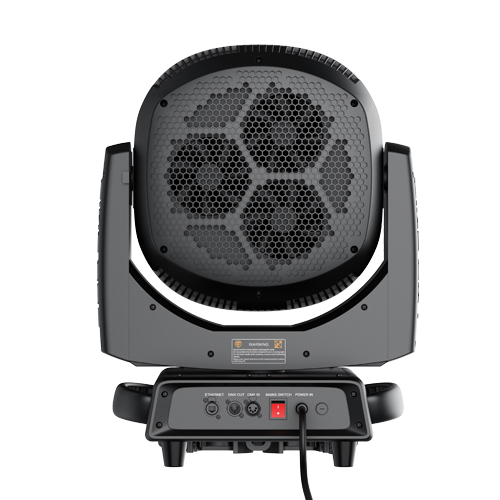

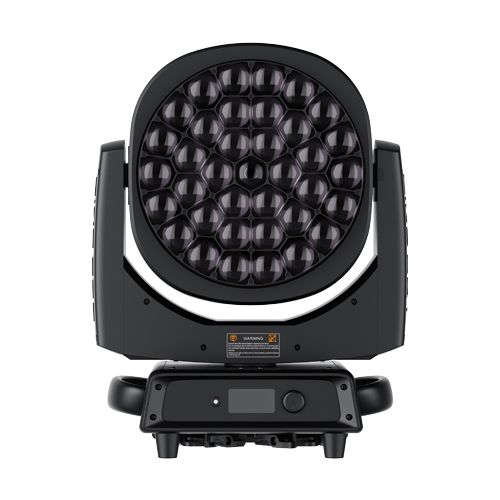

FINE 4037 WASH PLUS is a professional high-power LED moving head wash light. It adopts a new optical design, while achieving uniform color mixing and soft effects, the optical efficiency can still be kept at a high level. 4°~60° zoom range, it can adapt to the demand of light regardless of the distance. Dimming is smooth and fine, it achieves low-brightness lighting up without shaking, which fully meet the requirements of dramatic dimming. 2500k-8000k linear color temperature is adjustable. When the color temperature changes, the brightness is basically stable, and Ra and R9 are both above 90. Concealed folding lamp hooks are convenient for hanging and assembly operations. It is suitable for large-scale concerts, TV stations, theaters, rental markets and other performance venues.
TECHNICAL SPECIFICATION
LIGHT SOURCE

  • 37 pcs 40W import 4 in 1 LEDs

  • Average Life Span＞50000 h

  • 37 pcs 40W import 4 in 1 LEDs

  • Average Life Span＞50000 h

OPTICAL SYSTEM

  • Beam Angle: 4°～60°,high-quality PMMA optical lens

  • Color rendering index：Ra>90，R9>90(H)

  • Beam Angle: 4°～60°,high-quality PMMA optical lens

  • Color rendering index：Ra>90，R9>90(H)

COLOR SYSTEM

  • RGBW 4 in 1

  • RGBW 4 in 1

EFFECTS

  • All-optical domain dimming, 65536 grade dimming accuracy

  • Fast Strobe: 1-25Hz

  • Preset 65 color macro functions

  • Preset 64 effect macro functions

  • All-optical domain dimming, 65536 grade dimming accuracy

  • Fast Strobe: 1-25Hz

  • Preset 65 color macro functions

  • Preset 64 effect macro functions

MOVEMENT PARAMETER

  • Pan 540°, Precision 2.11°/Step, Pan Fine: 0.008°

  • Tilt 240°, Precision 0.94°/Step, Tilt Fine=0.0037°

  • Pan & Tilt use photoelectricity reset system

  • Pan 540°, Precision 2.11°/Step, Pan Fine: 0.008°

  • Tilt 240°, Precision 0.94°/Step, Tilt Fine=0.0037°

  • Pan & Tilt use photoelectricity reset system

CONTROL AND PROGRAMMING

  • Control channel: 4 control channel models (21/36/41/35)

  • Protocol: Standard DMX512, Art- net, wireless DMX (Optional)

  • Menu display: 2.0 inches LCD display; Chinese and English languages can be switched freely; menu available to display 180°reversely; Non-contact roller operation; DMX Signal Connection: 3-pin/5-pin XLR input/output

  • Control channel: 4 control channel models (21/36/41/35)

  • Protocol: Standard DMX512, Art- net, wireless DMX (Optional)

  • Menu display: 2.0 inches LCD display; Chinese and English languages can be switched freely; menu available to display 180°reversely; Non-contact roller operation; DMX Signal Connection: 3-pin/5-pin XLR input/output

ELECTRONIC CONTROL TECHNOLOGY

  • Menu or console controls lighting reset

  • 0-100% dimmer

  • Constant current drive mode

  • Temperature sensor detection, intelligent adjustment for light source power

  • DMX channel level monitoring

  • Fixture information query

  • Intelligent fan speed adjustment

  • Initial brightness setting for all colors

  • Menu or console controls lighting reset

  • 0-100% dimmer

  • Constant current drive mode

  • Temperature sensor detection, intelligent adjustment for light source power

  • DMX channel level monitoring

  • Fixture information query

  • Intelligent fan speed adjustment

  • Initial brightness setting for all colors

POWER SUPPLY
  • Input voltage: 100-240V~, 50/60Hz

  • Input Power: 1400W

  • PF≥0.98

  • Input voltage: 100-240V~, 50/60Hz

  • Input Power: 1400W

  • PF≥0.98

SAFETY PROTECTION

  • Overcurrent, overvoltage, overheating protection

  • Overcurrent, overvoltage, overheating protection

WORK LACATION

  • Install in any safe location

  • Install in any safe location

WORKING TEMPERATURE

  • -10℃ - 45℃

  • -10℃ - 45℃

​ DIMENSION AND WEIGHT

  • Fixture Dimension:  478 x 310 x 616mm

  • Package Dimension:  842 x 519 x 845mm (flight case)

  • Net Weight: 29 kg (fixture)

  • Gross Weight: 103 kg (flight case)

  • Fixture Dimension:  478 x 310 x 616mm

  • Package Dimension:  842 x 519 x 845mm (flight case)

  • Net Weight: 29 kg (fixture)

  • Gross Weight: 103 kg (flight case)

INSTALL

  • Or horizontally or vertically

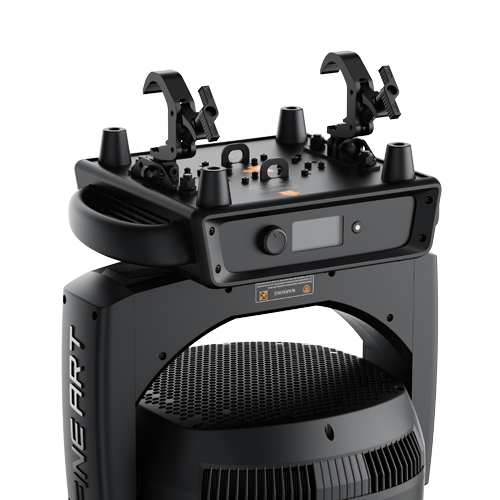

  • Two all-in-one folding light hooks for 50cm Truss

  • Safety rope connecting hole

  • Or horizontally or vertically

  • Two all-in-one folding light hooks for 50cm Truss

  • Safety rope connecting hole

PACKAGE

  • 2 pcs / flight case

  • 1 pcs / carton

  • 2 pcs / flight case

  • 1 pcs / carton

IP RATE

  • IP 20

  • IP 20

DIMENSIONS

990712210080 FINE 4037 WASH PLUS Dimension drawing 2024-10-14_00

PHOTOMETRICS

FINE 4037 WASH Plus 照度表(葳天灯珠）-20220718_00

GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
Filename
Size
Uploaded
Downloading
TEKMAND
icon
FINE 4037 WASH PLUS (TEKMAND)
2024-10-24
MA2
icon
FINE 4037 WASH PLUS (MA2)
2024-10-24
MA3 (GDTF)
icon
FINE 4037 WASH PLUS (GDTF)
2023-09-27
Manual
icon
FINE 4037 WASH PLUS User Manual
2024-10-19
Drawings
icon
FINE 4037 WASH PLUS Dimension Drawing
2024-10-19
