FINE 4037 PIXIE PLUS
OVERVIEW

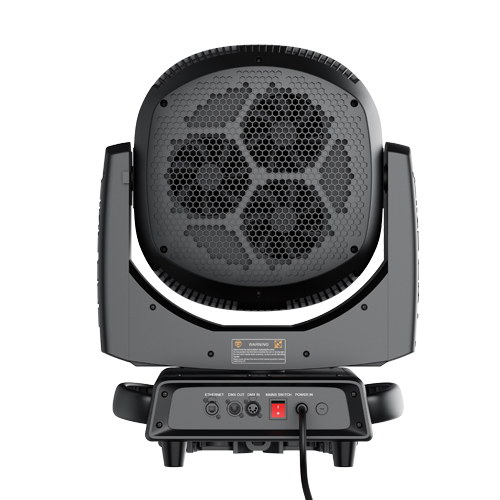

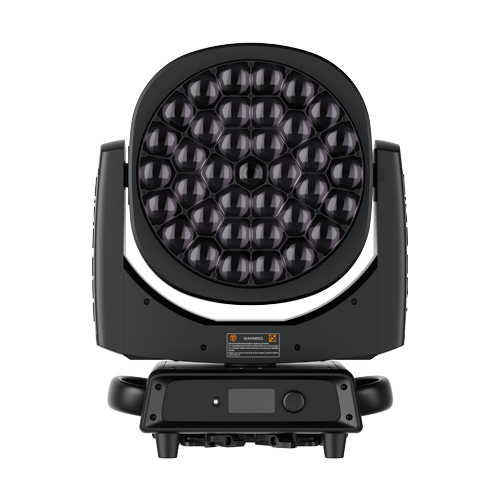

FINE 4037 PIXIE PLUS is an innovative multi-functional moving head light , with two functions of light beam and wash. It uses high-quality OSRAM RGBW four-in-one LED lamp beads as the light source and can be controlled by a single piece. The maximum output power is 1250W , 4 meters illumination up to 113800lux, with 4 to 60 degree super wide range linear zoom. Multiple strobe effects for selection, uniform color mixing, 0 ~ 100% smooth linear dimming, unique rotatable secondary lens disc, those can create beautiful and dynamic effects. Preset 65 color macros and 64 effect macro functions. Can meet various effects and wash places
TECHNICAL SPECIFICATION
LIGHT SOURCE
  • 37 pcs 40W OSRAM RGBW 4 in 1 LEDs

  • Average Life Span >50,000h

  • 37 pcs 40W OSRAM RGBW 4 in 1 LEDs

  • Average Life Span >50,000h

OPTICAL SYSTEM
  • Beam Angle: 4°~60°

  • High-quality PMMA optical lens

  • Beam Angle: 4°~60°

  • High-quality PMMA optical lens

COLOR SYSTEM
  • RGBW 4 in 1

  • RGBW 4 in 1

EFFECTS
  • All-optical domain dimming, 65536 grade dimming accuracy

  • Fast strobe: 1-25Hz

  • Preset 65 color macro functions

  • Preset 64 effect macro functions

  • All-optical domain dimming, 65536 grade dimming accuracy

  • Fast strobe: 1-25Hz

  • Preset 65 color macro functions

  • Preset 64 effect macro functions

MOVEMENT PARAMETER
  • Pan 540°, Precision 2.11°/Step, Pan Fine: 0.008°

  • Tilt 240°, Precision 0.94°/Step, Tilt Fine=0.0037°

  • Pan & Tilt photoelectric reset system

  • Pan 540°, Precision 2.11°/Step, Pan Fine: 0.008°

  • Tilt 240°, Precision 0.94°/Step, Tilt Fine=0.0037°

  • Pan & Tilt photoelectric reset system

CONTROL AND PROGRAMMING
  • Control Channel: 4 control channel models 21/35/132/169

  • Protocol: Standard DMX512 ; Optional: Art-net Ethernet Control Protocol、wireless DMX512

  • Menu display: 3.5 inches LCD display, resolution ratio: 128 x 64;

  • Chinese and English languages can be switched freely; menu available to display 180°reversely; Non-contact roller operation; DMX Signal Connection: 3-pin/5-pin XLR input/output

  • Control Channel: 4 control channel models 21/35/132/169

  • Protocol: Standard DMX512 ; Optional: Art-net Ethernet Control Protocol、wireless DMX512

  • Menu display: 3.5 inches LCD display, resolution ratio: 128 x 64;

  • Chinese and English languages can be switched freely; menu available to display 180°reversely; Non-contact roller operation; DMX Signal Connection: 3-pin/5-pin XLR input/output

ELECTRONIC CONTROL TECHNOLOGY
  • Reset available from menu and console

  • 0-100% dimmer

  • Constant current drive mode

  • Temperature sensor detection, intelligent adjustment of light source power

  • DMX channel monitoring

  • Fixture information query

  • Intelligent fan adjustment

  • Initial brightness set up for all colors

  • Over current, overvoltage and overheating protection

  • Reset available from menu and console

  • 0-100% dimmer

  • Constant current drive mode

  • Temperature sensor detection, intelligent adjustment of light source power

  • DMX channel monitoring

  • Fixture information query

  • Intelligent fan adjustment

  • Initial brightness set up for all colors

  • Over current, overvoltage and overheating protection

POWER SUPPLY
  • 100-240V~, 50/60Hz

  • Input Power: 1350W

  • PF≥0.95

  • 100-240V~, 50/60Hz

  • Input Power: 1350W

  • PF≥0.95

WORKING TEMPERATURE
  • -10℃~45℃

  • -10℃~45℃

DIMENSION AND WEIGHT
  • Fixture Dimension:430 x 479 x 551mm

  • Package Dimension: 930 x 525 x 837mm

  • Fixture Net Weight: 23.5 kg

  • Gross Weight: 91.8 kg

  • Flight Case Gross Weight: 85 kg

  • Fixture Dimension:430 x 479 x 551mm

  • Package Dimension: 930 x 525 x 837mm

  • Fixture Net Weight: 23.5 kg

  • Gross Weight: 91.8 kg

  • Flight Case Gross Weight: 85 kg

INSTALL
  • Or horizontally or vertically

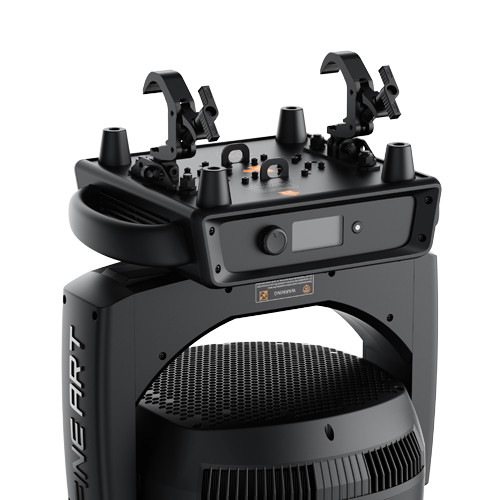

  • Two all-in-one folding light hooks for 50cm Truss

  • Safety rope connecting hole

  • Or horizontally or vertically

  • Two all-in-one folding light hooks for 50cm Truss

  • Safety rope connecting hole

PACKAGE
  • 2 pcs/ flight case

  • 1 pcs/ carton

  • 2 pcs/ flight case

  • 1 pcs/ carton

IP RATE
  • IP 20

  • IP 20

DIMENSIONS

990712210076 FINE 4037 PIXIE PLUS Dimension drawing  2024-10-14_00

PHOTOMETRICS

FINE 4037   PIXIE   Plus 照度表(葳天灯珠)-20220718_00

GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
Filename
Size
Uploaded
Downloading
TEKMAND
icon
FINE 4037 PXIIE PLUS (TEKMAND)
2024-10-24
MA2
icon
FINE 4037 PIXIE PLUS (MA2)
2024-10-24
Avolites Pearl
icon
FINE 4037 PIXIE(Avolites Pearl)
2020-12-31
Avolites D4
icon
FINE 4037 PIXIE(Avolites D4)
2021-01-14
MA3 (GDTF)
icon
FINE 4037 PIXIE(GDTF)
2022-01-06
DMX chart
Share
PDFpdf-icon

FINE 4037 PIXIE PLUS

OVERVIEW
TECHNICAL SPECIFICATION
GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
ENQUIRE
FINE 4037 PIXIE PLUS
FINE 4037 PIXIE PLUS is an innovative multi-functional moving head light , with two functions of light beam and wash. It uses high-quality OSRAM RGBW four-in-one LED lamp beads as the light source and can be controlled by a single piece. The maximum output power is 1250W , 4 meters illumination up to 113800lux, with 4 to 60 degree super wide range linear zoom. Multiple strobe effects for selection, uniform color mixing, 0 ~ 100% smooth linear dimming, unique rotatable secondary lens disc, those can create beautiful and dynamic effects. Preset 65 color macros and 64 effect macro functions. Can meet various effects and wash places
TECHNICAL SPECIFICATION
LIGHT SOURCE
  • 37 pcs 40W OSRAM RGBW 4 in 1 LEDs

  • Average Life Span >50,000h

OPTICAL SYSTEM
  • Beam Angle: 4°~60°

  • High-quality PMMA optical lens

COLOR SYSTEM
  • RGBW 4 in 1

EFFECTS
  • All-optical domain dimming, 65536 grade dimming accuracy

  • Fast strobe: 1-25Hz

  • Preset 65 color macro functions

  • Preset 64 effect macro functions

MOVEMENT PARAMETER
  • Pan 540°, Precision 2.11°/Step, Pan Fine: 0.008°

  • Tilt 240°, Precision 0.94°/Step, Tilt Fine=0.0037°

  • Pan & Tilt photoelectric reset system

CONTROL AND PROGRAMMING
  • Control Channel: 4 control channel models 21/35/132/169

  • Protocol: Standard DMX512 ; Optional: Art-net Ethernet Control Protocol、wireless DMX512

  • Menu display: 3.5 inches LCD display, resolution ratio: 128 x 64;

  • Chinese and English languages can be switched freely; menu available to display 180°reversely; Non-contact roller operation; DMX Signal Connection: 3-pin/5-pin XLR input/output

ELECTRONIC CONTROL TECHNOLOGY
  • Reset available from menu and console

  • 0-100% dimmer

  • Constant current drive mode

  • Temperature sensor detection, intelligent adjustment of light source power

  • DMX channel monitoring

  • Fixture information query

  • Intelligent fan adjustment

  • Initial brightness set up for all colors

  • Over current, overvoltage and overheating protection

POWER SUPPLY
  • 100-240V~, 50/60Hz

  • Input Power: 1350W

  • PF≥0.95

WORKING TEMPERATURE
  • -10℃~45℃

DIMENSION AND WEIGHT
  • Fixture Dimension:430 x 479 x 551mm

  • Package Dimension: 930 x 525 x 837mm

  • Fixture Net Weight: 23.5 kg

  • Gross Weight: 91.8 kg

  • Flight Case Gross Weight: 85 kg

INSTALL
  • Or horizontally or vertically

  • Two all-in-one folding light hooks for 50cm Truss

  • Safety rope connecting hole

PACKAGE
  • 2 pcs/ flight case

  • 1 pcs/ carton

IP RATE
  • IP 20

DIMENSIONS

990712210076 FINE 4037 PIXIE PLUS Dimension drawing  2024-10-14_00

PHOTOMETRICS

FINE 4037   PIXIE   Plus 照度表(葳天灯珠)-20220718_00

!
×
