FINE 4019 PIXIE PLUS
OVERVIEW

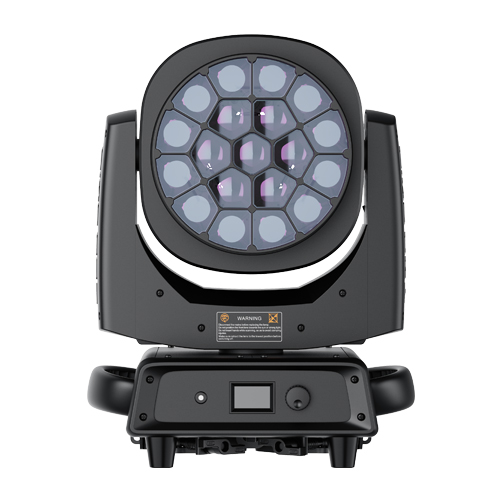

FINE 4019 PIXIE PLUS is an innovative multi-functional in small-size moving head light , with two functions of light beam and wash. It uses high-quality RGBW four-in-one LED lamp beads as the light source and can be controlled by a single piece. The maximum output power is 900W, 6 meters illumination up to 29000lux, with 4 to 60 degree super wide range linear zoom. Multiple strobe effects for selection, uniform color mixing, 0 ~ 100% smooth linear dimming, unique rotatable secondary lens disc, those can create beautiful and dynamic effects. Preset 65 color macros and 64 effect macro functions. Can meet various effects and wash places.
TECHNICAL SPECIFICATION
LIGHT SOURCE
  • 19pcs 40W RGBW 4 in 1 LEDs

  • Average Life Span>50000h

  • 19pcs 40W RGBW 4 in 1 LEDs

  • Average Life Span>50000h

Optical system
  • Beam angle: 4° - 60°

  • High-quality PMMA optical lens

  • Color temperature: 2500-8000k

  • Beam angle: 4° - 60°

  • High-quality PMMA optical lens

  • Color temperature: 2500-8000k

COLOR SYSTEM
  • RGBW 4 in 1

  • RGBW 4 in 1

EFFECTS
  • All-optical domain dimming, 65536 grade dimming accuracy

  • Fast strobe: 1-25Hz

  • Preset 65 color macro functions

  • Preset 64 effect macro functions

  • All-optical domain dimming, 65536 grade dimming accuracy

  • Fast strobe: 1-25Hz

  • Preset 65 color macro functions

  • Preset 64 effect macro functions

MOVEMENT PARAMETER
  • Angle: Pan 540°, Tilt 240°

  • Precision: Pan=2.11°, Pan Fine=0.008°, Tilt=0.94°, Tilt Fine=0.0037°

  • Pan & tilt can reset with photoelectric system

  • Angle: Pan 540°, Tilt 240°

  • Precision: Pan=2.11°, Pan Fine=0.008°, Tilt=0.94°, Tilt Fine=0.0037°

  • Pan & tilt can reset with photoelectric system

CONTROL AND PROGRAMMING
  • Control Channel: 4 control channel models 21/78/97/35

  • Protocol: Standard DMX512, Art-net, wireless DMX512 (Optional)

  • Menu display: 2.0 inches LCD black&white display screen

  • random switch of Chinese and English language; menu available to display 180° reversely

  • Non-contacting wheel operation mode

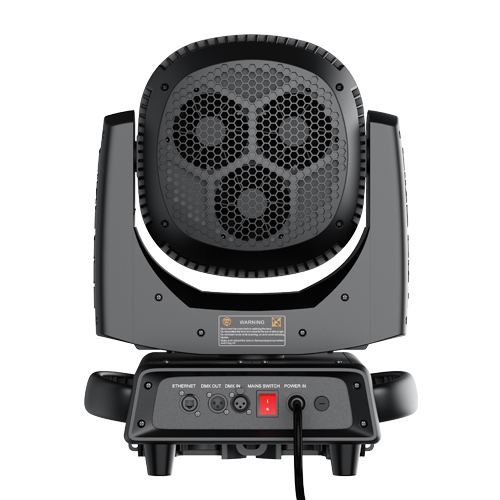

  • DMX Signal Connection: 3 pin/5 pin XLR input/output

  • Control Channel: 4 control channel models 21/78/97/35

  • Protocol: Standard DMX512, Art-net, wireless DMX512 (Optional)

  • Menu display: 2.0 inches LCD black&white display screen

  • random switch of Chinese and English language; menu available to display 180° reversely

  • Non-contacting wheel operation mode

  • DMX Signal Connection: 3 pin/5 pin XLR input/output

ELECTRONIC CONTROL TECHNOLOGY
  • Fixture reset is controlled through menu orlight console

  • 0-100% dimmer

  • Constant current drive mode

  • Temperature sensor, intelligently adjust the light source power DMX channellevel monitoring

  • Fixture information query

  • Intelligent fan speed adjustment

  • Initial brightness setting for all colors

  • Over current, overvoltage and overheating protection

  • Fixture reset is controlled through menu orlight console

  • 0-100% dimmer

  • Constant current drive mode

  • Temperature sensor, intelligently adjust the light source power DMX channellevel monitoring

  • Fixture information query

  • Intelligent fan speed adjustment

  • Initial brightness setting for all colors

  • Over current, overvoltage and overheating protection

POWER SUPPLY
  • Input voltage: 100-240V~,50/60Hz

  • Input Power: 900W

  • PF≥0.98

  • Input voltage: 100-240V~,50/60Hz

  • Input Power: 900W

  • PF≥0.98

Working TEMPERATURE
  • Temperature:-10°C-45°C

  • Temperature:-10°C-45°C

DIMENSION AND WEIGHT
  • Fixture Dimension: 400 x 309 x 517mm

  • Package Dimension: 856 x 491 x 746mm (flight case)

  • Net Weight: 20 kg (Fixture)

  • Gross Weight: 83 kg (flight case)

  • Fixture Dimension: 400 x 309 x 517mm

  • Package Dimension: 856 x 491 x 746mm (flight case)

  • Net Weight: 20 kg (Fixture)

  • Gross Weight: 83 kg (flight case)

Fix
  • Or horizontally or vertically.

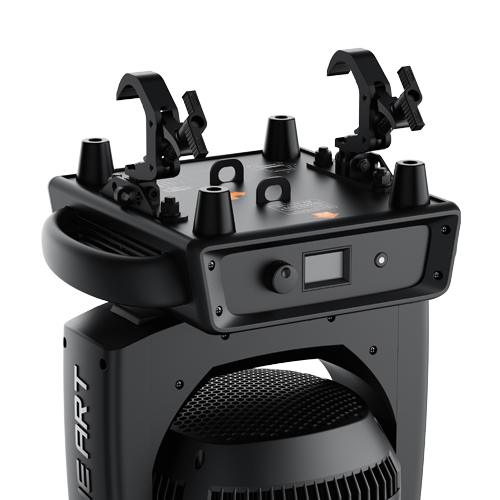

  • Two all-in-one folding light hooks for 50cm Truss

  • Safety rope connecting hole

  • Or horizontally or vertically.

  • Two all-in-one folding light hooks for 50cm Truss

  • Safety rope connecting hole

PACKAGE
  • 2 sets / flight case

  • 2 sets / flight case

IP RATE
  • IP 20

  • IP 20

DIMENSIONS

990712210072 FINE 4019 PIXIE PLUS Dimension drawing  2024-10-14_00

PHOTOMETRICS
FINE 4019 PIXIE PLUS 葳天 照度表(英文版)-20241014_00
