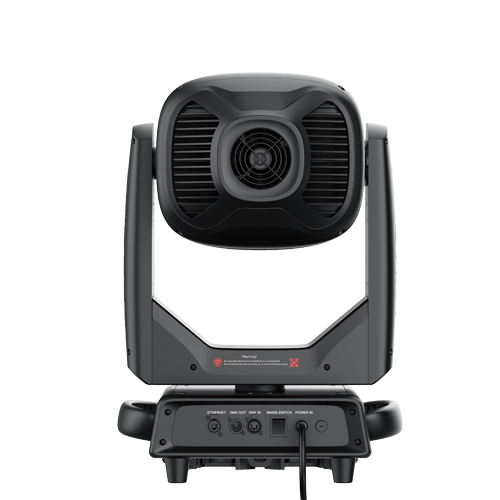

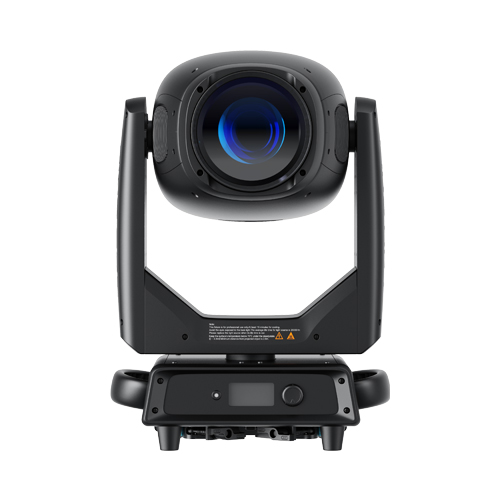

FINE 2000L BSWF
OVERVIEW
FINE 2000L BSWF is a professional 4 in 1 moving head light with 1000W LED module as light source. It integrates beam, spot, wash and framing functions into one fixture. Over 20000 hours lifespan of the LED module saves you from changing light source frequently. FINE 2000L BSWF performs light output up to 46000lm, while Ra and R9 keeps above 90. Three scenario modes can be selected with noise as low as 42db. 65536 level dimming system makes dimming smooth, fine and flicker free when start lighting from low brightness. 5 ° ~ 50 ° linear zoom, sharp and full beam at any angle and clear pattern imaging which is benefits from new optical design. Be equipped with the whole cutting system, it can rotate by ± 90° and cut all kinds of figures straightly without distortion. It adopts the second generation of color standard to make pure color and excellent CMY color mixing. FINE 2000L BSWF is only 33KG with small-sized and light weight body. FINE 2000L BSWF is suitable for TV station, theatre, stage，concert, large scale evening gala, auto show and other high end venues, especially good for venues with high requirement on noise level such as theatre and music hall.
TECHNICAL SPECIFICATION
OPTICAL SYSTEM

  • Light Source: 1000W LED module

  • The diameter of optical lens: 175mm

  • Zoom Range: 5° - 50°

  • CRI: Ra≥90(Ra≥95 for optional)

  • Color Temperature: 6200K

  • Light Source: 1000W LED module

  • The diameter of optical lens: 175mm

  • Zoom Range: 5° - 50°

  • CRI: Ra≥90(Ra≥95 for optional)

  • Color Temperature: 6200K

COLOR SYSTEM

  • CMY infinite color mixing

  • CTO linear adjustment(2700K-6200K)

  • 6 color filters + white light

  • CMY infinite color mixing

  • CTO linear adjustment(2700K-6200K)

  • 6 color filters + white light

GOBO SYSTEM

  • 1 rotating gobo wheels with 6 glass gobos, in bidirectional rotation way

  • Outside diameter: 32mm; Image diameter: 26mm; Material: Glass; Thickness: 1.1mm

  • 1 fixed gobo wheel with 9 gobos

  • 1 animation gobo wheel, can fade in/out

  • 1 rotating gobo wheels with 6 glass gobos, in bidirectional rotation way

  • Outside diameter: 32mm; Image diameter: 26mm; Material: Glass; Thickness: 1.1mm

  • 1 fixed gobo wheel with 9 gobos

  • 1 animation gobo wheel, can fade in/out

FRAMING SYSTEM
  • 1 set of full directional framing system, support ±90° rotation

  • Framing blade position with high precision

  • 1 set of full directional framing system, support ±90° rotation

  • Framing blade position with high precision

EFFECTS

  • 1 rotating 4-facet gradient prism

  • 1 rotating 4-facet prism

  • Both prisms can rotate bidirectional

  • 2 independent soft light frost effects, can overlay with each other

  • Fast electronic iris, 5-100 % linear adjustment

  • 1 rotating 4-facet gradient prism

  • 1 rotating 4-facet prism

  • Both prisms can rotate bidirectional

  • 2 independent soft light frost effects, can overlay with each other

  • Fast electronic iris, 5-100 % linear adjustment

MOVEMENT PARAMETER
  • Pan 540°, Tilt 270°
  • Pan 540°, Tilt 270°
CONTROL AND PROGRAMMING

  • Control channel: 32(standard)/40(16 bit)/ 44(extended) 3 channel modes

  • Protocol: Standard DMX512, Art-net Ethernet Control Protocol, Optional: wireless DMX512

  • Menu display: 3.5 inches LCD black and white display

  • Control channel: 32(standard)/40(16 bit)/ 44(extended) 3 channel modes

  • Protocol: Standard DMX512, Art-net Ethernet Control Protocol, Optional: wireless DMX512

  • Menu display: 3.5 inches LCD black and white display

ELECTRONIC CONTROL TECHNOLOGY

  • Self-charging buffer battery, edit menu in no-power state

  • Fan intelligent control

  • Temperature electronic sensing detection

  • DMX channel level monitoring

  • LCD screen lighting information query

  • RDM data bidirectional transmission

  • Non-contact magnetic rotary encoder positioning, signal feedback, absolute position memory, DMX off-line power-off position recovery

  • Self-charging buffer battery, edit menu in no-power state

  • Fan intelligent control

  • Temperature electronic sensing detection

  • DMX channel level monitoring

  • LCD screen lighting information query

  • RDM data bidirectional transmission

  • Non-contact magnetic rotary encoder positioning, signal feedback, absolute position memory, DMX off-line power-off position recovery

POWER SUPPLY

  • 100-240V~, 50/60Hz

  • Input power: 1400W

  • PF≥0.98

  • 100-240V~, 50/60Hz

  • Input power: 1400W

  • PF≥0.98

DIMENSION AND WEIGHT

  • Fixture Dimension: 414 x 310 x 788mm

  • Package Dimension: 671 x 549 x 829mm (flight case)

  • Net Weight: 33 .5 kg (fixture)

  • Gross Weight: 77 kg

  • Fixture Dimension: 414 x 310 x 788mm

  • Package Dimension: 671 x 549 x 829mm (flight case)

  • Net Weight: 33 .5 kg (fixture)

  • Gross Weight: 77 kg

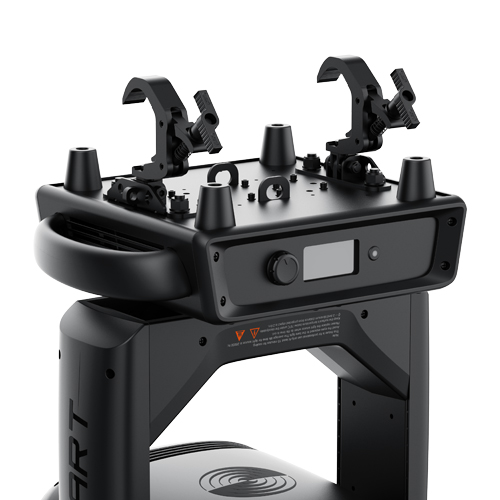

Fix
  • Or horizontally or vertically

  • Two all-in-one folding light hooks for 50cm Truss

  • Safety rope connecting hole

  • Or horizontally or vertically

  • Two all-in-one folding light hooks for 50cm Truss

  • Safety rope connecting hole

PACKAGE
  • 1 pc / flight case
  • 1 pc / flight case
IP RATE
  • IP 20
  • IP 20
PHOTOMETRICS

FINE 2000L BSWF（Ra≥90 R9 ＞70）- 20240326_00

GOBOS & COLORS
Color Wheel 1
06
05
04
02
03
01
Fixed Gobo Wheel
1
2
3
4
5
6
7
8
9
Rotating Gobo Wheel 1
0
01
02
03
04
05
Animation Wheel
190120000004
OPTIONAL ACCESSORIES
VIDEO
play
DOWNLOADS
Filename
Size
Uploaded
Downloading
TEKMAND
icon
FINE 2000L BSWF (TEKMAND)
2024-10-23
MA2
icon
FINE 2000L BSWF (MA2)
2024-10-24
Avolites Pearl
icon
FINE 2000L BSWF 44CH
2022-10-18
icon
FINE 2000L BSWF 40CH
2022-10-18
icon
FINE 2000L BSWF 32CH
2022-10-18
Avolites D4
icon
FINE 2000L BSWF(  Avolites D4)
2022-10-18
icon
FINE 2000L BSWF(Avolites D4)
2021-01-04
MA3 (GDTF)
icon
FINE 2000L BSWF(GDTF)
2021-05-05
DMX chart
icon
FINE 2000L BSWF DMX chart
2024-10-22
Manual
icon
FINE 2000L／LH／LB BSWF User Manual
2024-05-14
Drawings
icon
FINE 2000L BSWF Dimension Drawings
2024-10-19
