FINE 1700L WASH PERF
OVERVIEW
FINE 1700L WASH PERF (PC mirror) is a dyeing and cutting computer moving head light equipped with the latest high-efficiency light engine, Ra≥90, and the light source life is designed to be 20,000 hours; the luminous flux output of the whole machine can reach more than 50,000lm; good heat dissipation design supplemented by intelligent Fan control technology, the lower the ambient temperature, the lower the noise; the cooling system with patented technology, continuous full power use at room temperature without power reduction. The built-in second-generation color standard ensures that the color of the whole lamp is consistent with that of gas discharge light source lamps. 2 color wheels with 6 colors + white light respectively, CMY stepless color mixing, CTO color temperature linear adjustment, a full-range cutting system that can rotate ±90 degrees. The product is suitable for high-end places such as TV stations, theaters, concerts, large-scale evening parties, electronic music festivals, auto shows, etc., especially suitable for 4K high-definition studios and places with high noise requirements such as theaters and concert halls.
TECHNICAL SPECIFICATION
OPTICAL SYSTEM
  • Light Source: 1500W  (customization)

  • Life span >20000h

  • Zoom Range:

    7° - 40°(1/2 Peak)

    14° - 70°(1/10 Peak)

  • CRI: Ra 90

  • Color Temperature: 6250±250K

  • Light Source: 1500W  (customization)

  • Life span >20000h

  • Zoom Range:

    7° - 40°(1/2 Peak)

    14° - 70°(1/10 Peak)

  • CRI: Ra 90

  • Color Temperature: 6250±250K

COLOR SYSTEM
  • CMY infinite color mixing

  • CTO linear adjustment (2700K- 6200K)

  • 2 color wheels, each with 6 color filters+white

  • CMY infinite color mixing

  • CTO linear adjustment (2700K- 6200K)

  • 2 color wheels, each with 6 color filters+white

GOBO SYSTEM
  • 1 set of full directional framing system, support ±90° rotation

  • 1 set of full directional framing system, support ±90° rotation

EFFECTS
  • Electric dimmer, 0-100% linear dimmer

  • Electric strobe frequency: 1-25 flash/second, multiple strobe effects (pulse/asynchronous/ synchronous/slow- medium-fast at random)

  • Electric dimmer, 0-100% linear dimmer

  • Electric strobe frequency: 1-25 flash/second, multiple strobe effects (pulse/asynchronous/ synchronous/slow- medium-fast at random)

MOVEMENT PARAMETER
  • Pan 540°,Tilt 270°

  • Pan and tilt use non-contact magnetic rotary encoder positioning reset system with self error correction mechanism

  • Pan 540°,Tilt 270°

  • Pan and tilt use non-contact magnetic rotary encoder positioning reset system with self error correction mechanism

CONTROL CHANNELS
  • Control channel: 25(standard)/ 29(16 bit)/ 33(extension) 3 channel modes

  • Protocol: DMX512, Art-net, wireless DMX512

  • Menu display: 3.5 inches LCD black&white display screen, Chinese and English language can be switched freely; menu available to display

  • Control channel: 25(standard)/ 29(16 bit)/ 33(extension) 3 channel modes

  • Protocol: DMX512, Art-net, wireless DMX512

  • Menu display: 3.5 inches LCD black&white display screen, Chinese and English language can be switched freely; menu available to display

ELECTRONIC CONTROL TECHNOLOGY
  • Self-charging buffer battery, edit menu in no-power state

  • Fan intelligent control

  • Temperature electronic sensing detection

  • DMX channel level monitoring

  • LCD screen lighting information query

  • RDM data bidirectional transmission

  • Non-contact magnetic rotary encoder positioning, signal feedback, absolute position memory, DMX off-line power-off position recovery

  • Self-charging buffer battery, edit menu in no-power state

  • Fan intelligent control

  • Temperature electronic sensing detection

  • DMX channel level monitoring

  • LCD screen lighting information query

  • RDM data bidirectional transmission

  • Non-contact magnetic rotary encoder positioning, signal feedback, absolute position memory, DMX off-line power-off position recovery

POWER SUPPLY
  • Input voltage:100-240V~, 50/60Hz

  • Input power: 1600W@200V~, 1700W@100V~

  • PF≥0.98

  • Input voltage:100-240V~, 50/60Hz

  • Input power: 1600W@200V~, 1700W@100V~

  • PF≥0.98

DIMENSION AND WEIGHT
  • Fixture Dimension: 448 x 332 x 801mm

  • Package Dimension: 671 x 549 x 829mm

  • Net Weight: 41 kg (fixture)

  • Gross Weight: 77 kg (flight case)

  • Fixture Dimension: 448 x 332 x 801mm

  • Package Dimension: 671 x 549 x 829mm

  • Net Weight: 41 kg (fixture)

  • Gross Weight: 77 kg (flight case)

PACKAGE
  • 1 set / flight case

  • 1 set / flight case

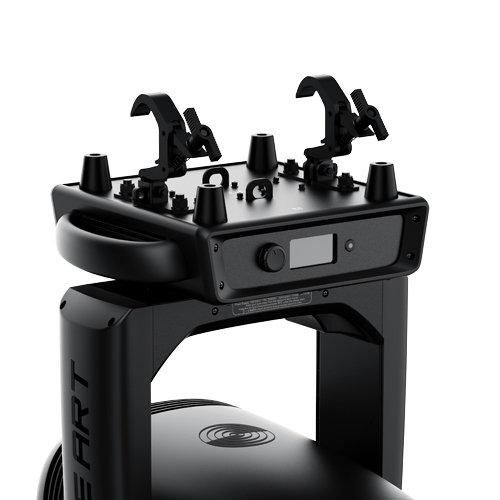

INSTALL
  • Horizontal or vertical installation

  • 2 integrated folding light hooks for 60cm Truss

  • Safety rope connection hole

  • Horizontal or vertical installation

  • 2 integrated folding light hooks for 60cm Truss

  • Safety rope connection hole

IP RATE
  • IP 20

  • IP 20

DIMENSIONS

990395210165 FINE 1700L WASH PERF Dimension drawing_00

PHOTOMETRICS
FINE 1700L WASH PERF照度表(英文版)-20241015_00
GOBOS & COLORS
Color Wheel 1
01 红
02 绿
03 蓝
04 橙
05 粉
06 墨绿
Color Wheel 2
1
2
3
4
5
6
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
Filename
Size
Uploaded
Downloading
TEKMAND
icon
FINE 1700L WASH PERF (TEKMAND)
2024-10-21
MA2
icon
FINE 1700L WASH PERF (MA2)
2024-10-21
Drawings
icon
FINE 1700L WASH PERF Dimension Drawings
2024-10-19
