FINE 800C STROBE PRO IP
OVERVIEW
FINE 800C STROBE PRO IP is an advanced multifunctional strip waterproof strobe light. The products use a pixel array of 780 RGB LEDs, which provides background light that is very similar to high-definition LED walls in appearance; The whole lamp is composed of 15 grids, each segment of the grid RGBW can be controlled independently, with pixel function; The introduction of advanced electronic atomizer technology can easily achieve the same effect of atomizing mirror without adding any additional accessories. Built-in dual-port switch, which can be used for video shadowing, which is convenient for engineering wiring and reduces DMX512 resources and operating costs; Uniform lighting and dyeing, and the lamp body is dissipated by high-efficiency aluminum alloy to ensure that the power will not be reduced for a long time; Protection grade IP65 design to meet the needs of outdoor all-weather performance; It is suitable for outdoor performances, concerts, entertainment, rental and various live performances.
TECHNICAL SPECIFICATION
LIGHT SOURCE

  • Light source: R:240x0.5W G:240x0.5W B:240x0.5W W:60x3W

  • Lifespan: 50000h

  • Light source: R:240x0.5W G:240x0.5W B:240x0.5W W:60x3W

  • Lifespan: 50000h

OPTICAL SYSTEM

  • Beam Angle: 115˚

  • Color temperature: 2500~10000K

  • Beam Angle: 115˚

  • Color temperature: 2500~10000K

EFFECTS

  • Strobe: Quick strobe with multiple strobe modes to choose from, pulse, lightning, random slow, medium, and fast, professional strobe mode, adjustable light output time and frequency

  • Strobe: Quick strobe with multiple strobe modes to choose from, pulse, lightning, random slow, medium, and fast, professional strobe mode, adjustable light output time and frequency

CONTROL AND PROGRAMMING

  • Stand22/Pixels66/Strobe12/Pix6+60 four channel control modes

  • Communication protocol: Standard DMX512/ RDM protocol, Art-net Ethernet lighting control protocol

  • Menu display: 1.3-inch OLED (LCD/OLED/ display); switchable between Chinese/ English language, rotated 180° degrees for display, no-touch button operation

  • Stand22/Pixels66/Strobe12/Pix6+60 four channel control modes

  • Communication protocol: Standard DMX512/ RDM protocol, Art-net Ethernet lighting control protocol

  • Menu display: 1.3-inch OLED (LCD/OLED/ display); switchable between Chinese/ English language, rotated 180° degrees for display, no-touch button operation

ELECTRONIC CONTROL TECHNOLOGY

  • Constant current driveFan intelligent control

  • Cooling system: active cooling (forced cooling), passive cooling (natural air cooling)

  • Electronic sensor detection

  • DMX channel level monitoring

  • Query lamp information, bulb usage time and fault information through the display screen

  • With RDM data two-way transmission function

  • Change the DMX address code, switch the light bulb, reset the machine, and switch modes from the console

  • The software upgrade device can be connected to the DMX port of the lamp to upgrade the software

  • Input signal isolation protection functionElectronic atomization function

  • The hook-type integrated folding light hook is convenient for transportation and hanging assembly operations, improving efficiency, safety and reliability

  • Constant current driveFan intelligent control

  • Cooling system: active cooling (forced cooling), passive cooling (natural air cooling)

  • Electronic sensor detection

  • DMX channel level monitoring

  • Query lamp information, bulb usage time and fault information through the display screen

  • With RDM data two-way transmission function

  • Change the DMX address code, switch the light bulb, reset the machine, and switch modes from the console

  • The software upgrade device can be connected to the DMX port of the lamp to upgrade the software

  • Input signal isolation protection functionElectronic atomization function

  • The hook-type integrated folding light hook is convenient for transportation and hanging assembly operations, improving efficiency, safety and reliability

POWER SUPPLY

  • Input Voltage: 200-240V~, 50/60Hz

  • Maximum input power: 370W

  • PF≥0.98

  • Input Voltage: 200-240V~, 50/60Hz

  • Maximum input power: 370W

  • PF≥0.98

WORKING ENVIRONMENT

  • Working temperature: -10°C ~40°C

  • Working temperature: -10°C ~40°C

DIMENSION AND WEIGHT

  • Product size: 992 x 192 x 180mm

  • Packing size: 1036 x 518 x 660mm

  • Net weight: 12 kg

  • Gross Weight: 119.5 kg (flight  case)

  • Product size: 992 x 192 x 180mm

  • Packing size: 1036 x 518 x 660mm

  • Net weight: 12 kg

  • Gross Weight: 119.5 kg (flight  case)

PACKAGE

  • 5 pcs / flight case

  • 5 pcs / flight case

INSTALL

  • Horizontal or vertical installation 2pcs for φ50-60mm Truss all in one

  • Safety cable connection hole

  • Horizontal or vertical installation 2pcs for φ50-60mm Truss all in one

  • Safety cable connection hole

IP RATE

  • IP 65

  • IP 65

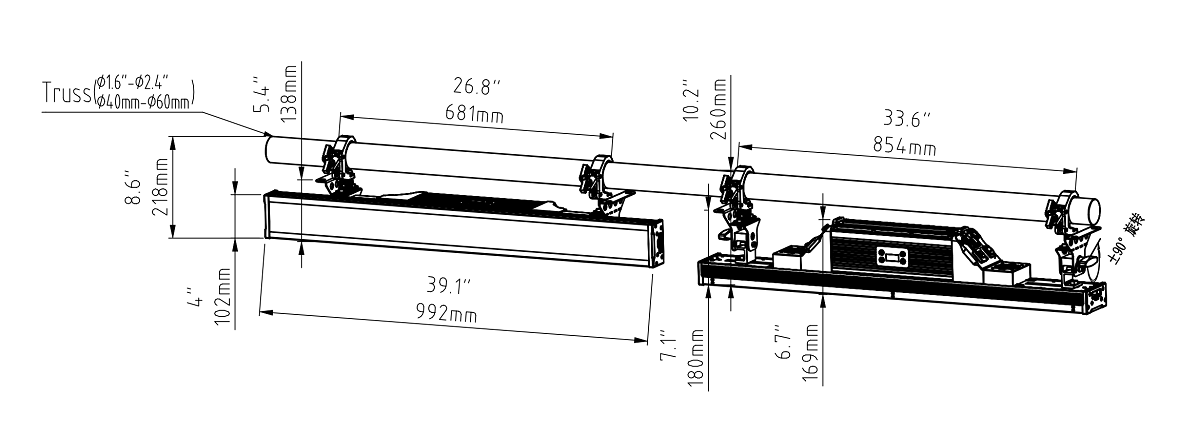

DIMENSIONS
990730210031 FINE 800C STROBE PRO IP Dimension drawing2024-9-2_00

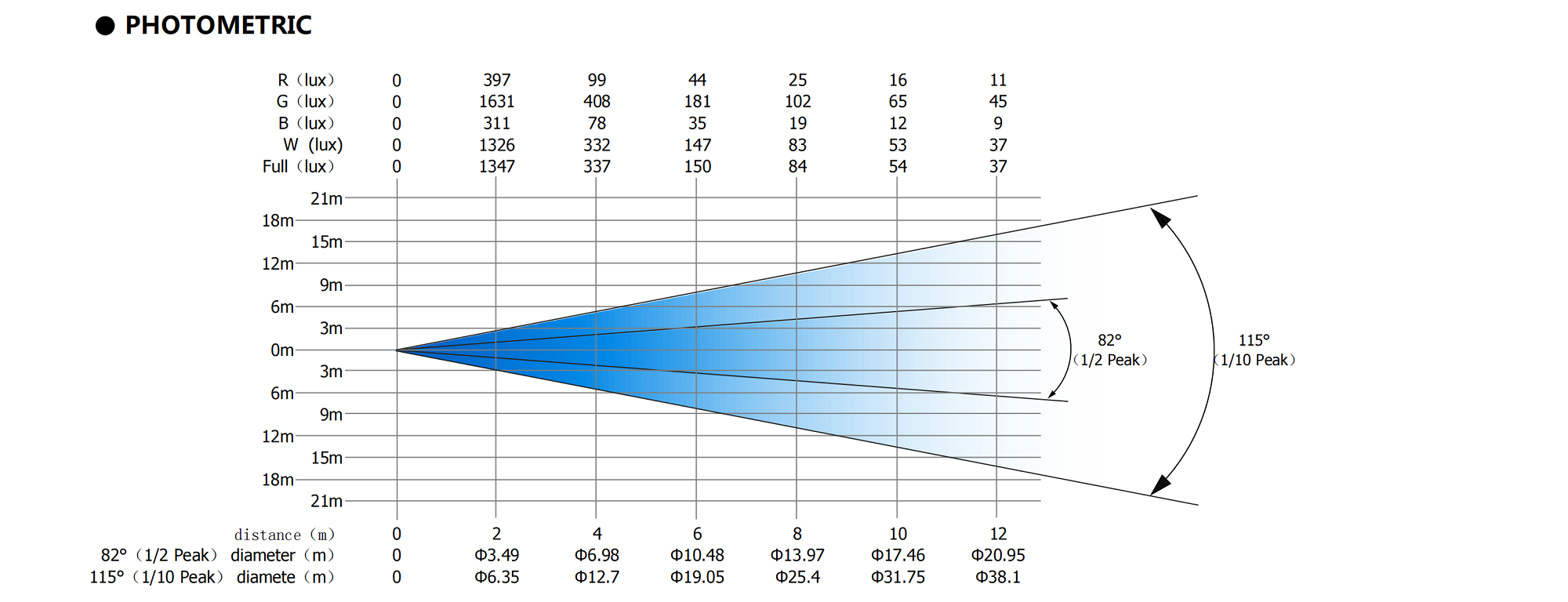

PHOTOMETRICS

FINE 800C STROBE PRO IP（RGBWW)照度表（英文版）-20230110_00
