FINE 1000C STROBE
OVERVIEW

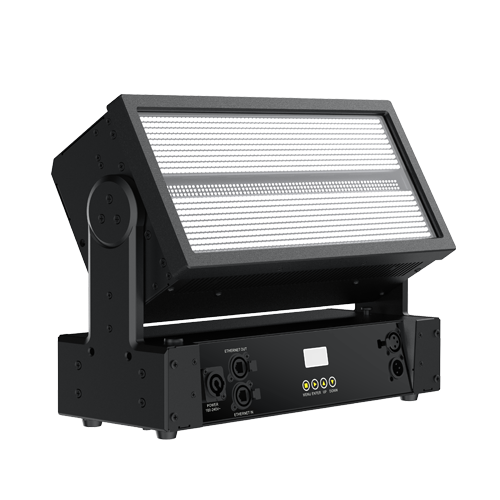

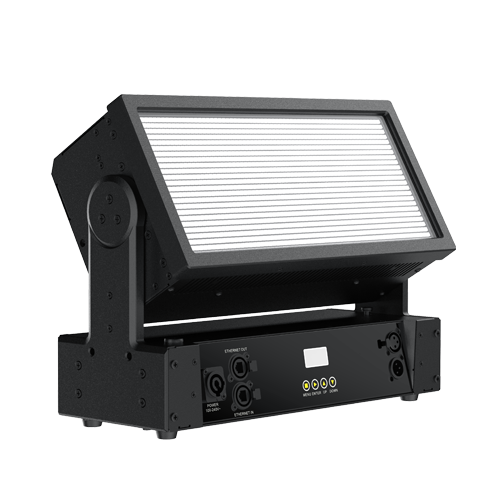

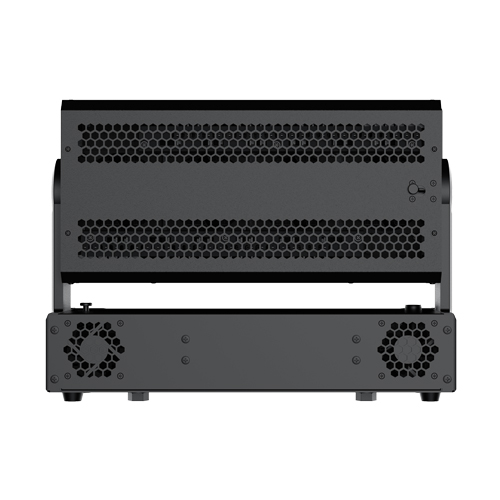

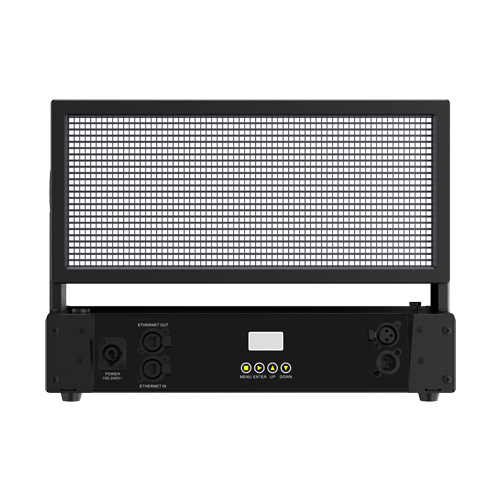

FINE 1000C Strobe is a high-power, multi-functional and high bright LED strobe light. Its matrix light-emitting panel consists of 1000 RGBW LEDs, and its light angle is 130°. The maximum instantaneous power reaches 600W. These 1000 LEDs are divided into 40 segments, RGBW of each segment can be individually controlled. When working as a wash light, all RGBW can be controlled by master dimmer and color mixing is possible; it can offer uniform wash and outstanding color mixing effect. When working as a strobe light, it can create various strobe effects by the combination of three channels: effect time 1, effect time 2 and effect selection. When it working as an effect light, it can achieve rich light effects by changing fade in/out time, movement direction, shape selection, background dimming etc channels It features dynamic movement with 182 degree tilt. Multiple lights can be connected horizontally to work as one light. Also each light can be used as a 10*4 pixel matrix to run bitmap effects. Advanced radiation design prevents LEDs from damage when constantly all color working on full dimmer or when using instant high speed strobe effect. FINE 1000C Strobe is a compact, small and light weight strobe light (11 kg), which is suitable for bars, stages, dramas, concerts, online variety shows and other performance venues.
TECHNICAL SPECIFICATION
OPTICAL SYSTEM
  • Light source:

    0.8Wx1000 pcs OSRAM

    3 in 1 RGB

  • LEDs Lifespan: ≥50,000 hours

  • Light source:

    0.8Wx1000 pcs OSRAM

    3 in 1 RGB

  • LEDs Lifespan: ≥50,000 hours

EFFECTS
  • The fixture is divided into 40 squares

  • Each square RGB can be controlled separately, can be used as a pixel, can form a variety of graphic effects

  • Optical domain dimming, 65536 dimming accuracy, highlighting output

  • Fast frequency 1-25 Hz

  • Macro and color gradient effect a variety of stroboscopic and graphic effects

  • The fixture is divided into 40 squares

  • Each square RGB can be controlled separately, can be used as a pixel, can form a variety of graphic effects

  • Optical domain dimming, 65536 dimming accuracy, highlighting output

  • Fast frequency 1-25 Hz

  • Macro and color gradient effect a variety of stroboscopic and graphic effects

MOVEMENT PARAMETER
  • Tilt: 182 °, accuracy of 0.94 °/step, fine-tuning 0.0037°

  • Tilt: 182 °, accuracy of 0.94 °/step, fine-tuning 0.0037°

CONTROL AND PROGRAMMING
  • Control channel: 12(stand)/ 167(RGBW)/17(Shape)/7+160 (RGBW)

  • Protocol: DMX512, ArtNet, sACN

  • Menu Display: 1.3inches OLCD screen, resolutio128*64, Chinese and English can be change freely, the font can be reversed 180°, the key operation mode

  • Control channel: 12(stand)/ 167(RGBW)/17(Shape)/7+160 (RGBW)

  • Protocol: DMX512, ArtNet, sACN

  • Menu Display: 1.3inches OLCD screen, resolutio128*64, Chinese and English can be change freely, the font can be reversed 180°, the key operation mode

INSTALLATION

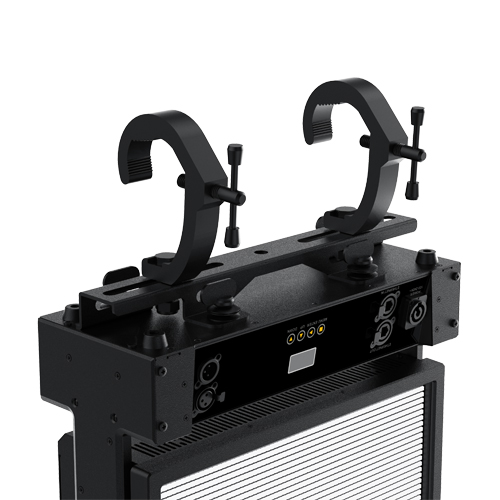

  • Direction: Random Hang: standard suspension

  • Security: insurance flies secondary suspension

  • Direction: Random Hang: standard suspension

  • Security: insurance flies secondary suspension

POWER SUPPLY
  • Input voltage: 100-240V~,50/60Hz

  • Input power: 600W

  • PF: 0.98

  • Input voltage: 100-240V~,50/60Hz

  • Input power: 600W

  • PF: 0.98

DIMENSION AND WEIGHT
  • Fixture Dimension: 391 x 152 x 291mm

  • Package Dimension:

    874 x 636 x 522mm (flight case)

    510 x 460 x 300mm (carton)

  • Net Weight: 11 kg (fixture)

  • Gross Weight: 86.8 kg (flight case)/15kg (carton)

  • Fixture Dimension: 391 x 152 x 291mm

  • Package Dimension:

    874 x 636 x 522mm (flight case)

    510 x 460 x 300mm (carton)

  • Net Weight: 11 kg (fixture)

  • Gross Weight: 86.8 kg (flight case)/15kg (carton)

PACKAGE
  • 4 sets/flight case

  • 1 set/carton

  • 4 sets/flight case

  • 1 set/carton

IP RATE
  • IP 20

  • IP 20

DIMENSIONS
990730220034 FINE 1000C STROBE Dimension drawing 2024-10-16_00
PHOTOMETRICS

FINE 1000C STROBE(RGBW)照度表(英文版)-20210415_00

GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
Filename
Size
Uploaded
Downloading
TEKMAND
icon
FINE 1000C STROBE (2024) (TEKMAND)
2024-10-21
icon
FINE 1000C STROBE (2021) (TEKMAND)
2021-05-06
icon
FINE 1000C STROBE (2017) (TEKMAND)
2020-11-23
MA2
icon
FINE 1000C STROBE (2024)(MA2)
2024-10-21
icon
FINE 1000C STROBE(2021)(MA2)
2021-04-29
icon
FINE 1000C STROBE(2017)(MA2)
2020-11-23
Avolites Pearl
icon
FINE 1000C STROBE(2021)(Avolites Pearl)
2021-04-29
MA3 (GDTF)
icon
FINE 1000C STROBE (GDTF)
2023-09-27
Drawings
icon
FINE 1000C STROBE Dimension Drawings
2024-10-19
