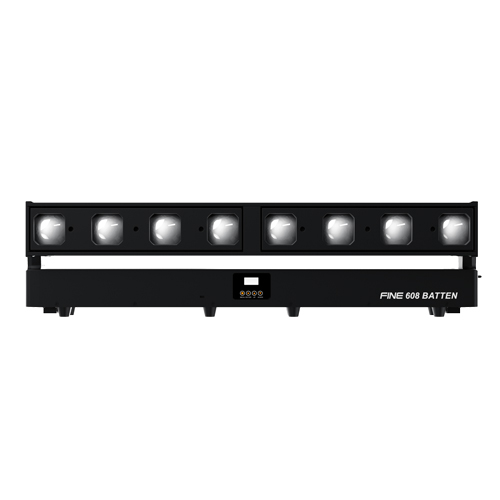

FINE 608 BATTEN
OVERVIEW
The FINE 608 BATTEN is a linear LED moving head, powered by 8*60W RGBW LEDs, providing a 50.000hours life span and a 6.000lumen output. The unique optical system offers a large zoom range, from a tight 5° beam to a wide 50° wash. The zoom system can be controlled by two zones. When DMX is cut off, the zoom system will be reset to avoid damage while transporting and installing. It features a tilt range of 200 degrees, 100 color macro functions, and 47 effect macro functions. It has a compact body, which weighs only 18kg. The FINE 608 BATTEN is suitable for entertainment, renting, TV stations, school halls, weddings, bars, indeed any event.
TECHNICAL SPECIFICATION
LIGHT SOURCE
  • 8 pcs 60W RGBW 4 in 1 LEDs

  • Average Life Span≥ 50,000 h

  • 8 pcs 60W RGBW 4 in 1 LEDs

  • Average Life Span≥ 50,000 h

OPTICAL SYSTEM
  • Beam Angle: 5 °- 50°

  • Glass light guide + High-quality PMMA optical lens

  • Color Temperature: 2700K-8000K

  • Beam Angle: 5 °- 50°

  • Glass light guide + High-quality PMMA optical lens

  • Color Temperature: 2700K-8000K

MOVEMENT PARAMETER
  • Tilt 200°

  • Tilt 200°

CONTROL AND PROGRAMMING
  • Control channel: Standard (15) /RGB (39)/RGBW (47) / Sharp (27)

  • Protocol: DMX512, RDM, Art-net, sACN

  • DMX Connector: 3-pin XLR input/ output (5-pin for option), RJ45 Network input/output

  • Control channel: Standard (15) /RGB (39)/RGBW (47) / Sharp (27)

  • Protocol: DMX512, RDM, Art-net, sACN

  • DMX Connector: 3-pin XLR input/ output (5-pin for option), RJ45 Network input/output

POWER SUPPLY
  • 100-240V~, 50/60Hz

  • Switch Power supply

  • Input power: 450W

  • PF≥0.98

  • 100-240V~, 50/60Hz

  • Switch Power supply

  • Input power: 450W

  • PF≥0.98

DIMENSION AND WEIGHT
  • Fixture Dimension: 960 x 120 x 303mm

  • Package Dimension:

    1114 x 586 x 515mm (flight case)

    1075 x 460 x 425mm (carton)

  • Net Weight: 18 kg (fixture)

  • Gross Weight: 105 kg (flight case) / 21 kg (carton)

  • Fixture Dimension: 960 x 120 x 303mm

  • Package Dimension:

    1114 x 586 x 515mm (flight case)

    1075 x 460 x 425mm (carton)

  • Net Weight: 18 kg (fixture)

  • Gross Weight: 105 kg (flight case) / 21 kg (carton)

PACKAGE
  • 4 pcs / flight case

  • 1 pc / carton

  • 4 pcs / flight case

  • 1 pc / carton

IP RATE
  • IP 20

  • IP 20

DIMENSIONS
990712210041 FINE 608 BATTEN Dimension drawing 2024-10-25_00(1)

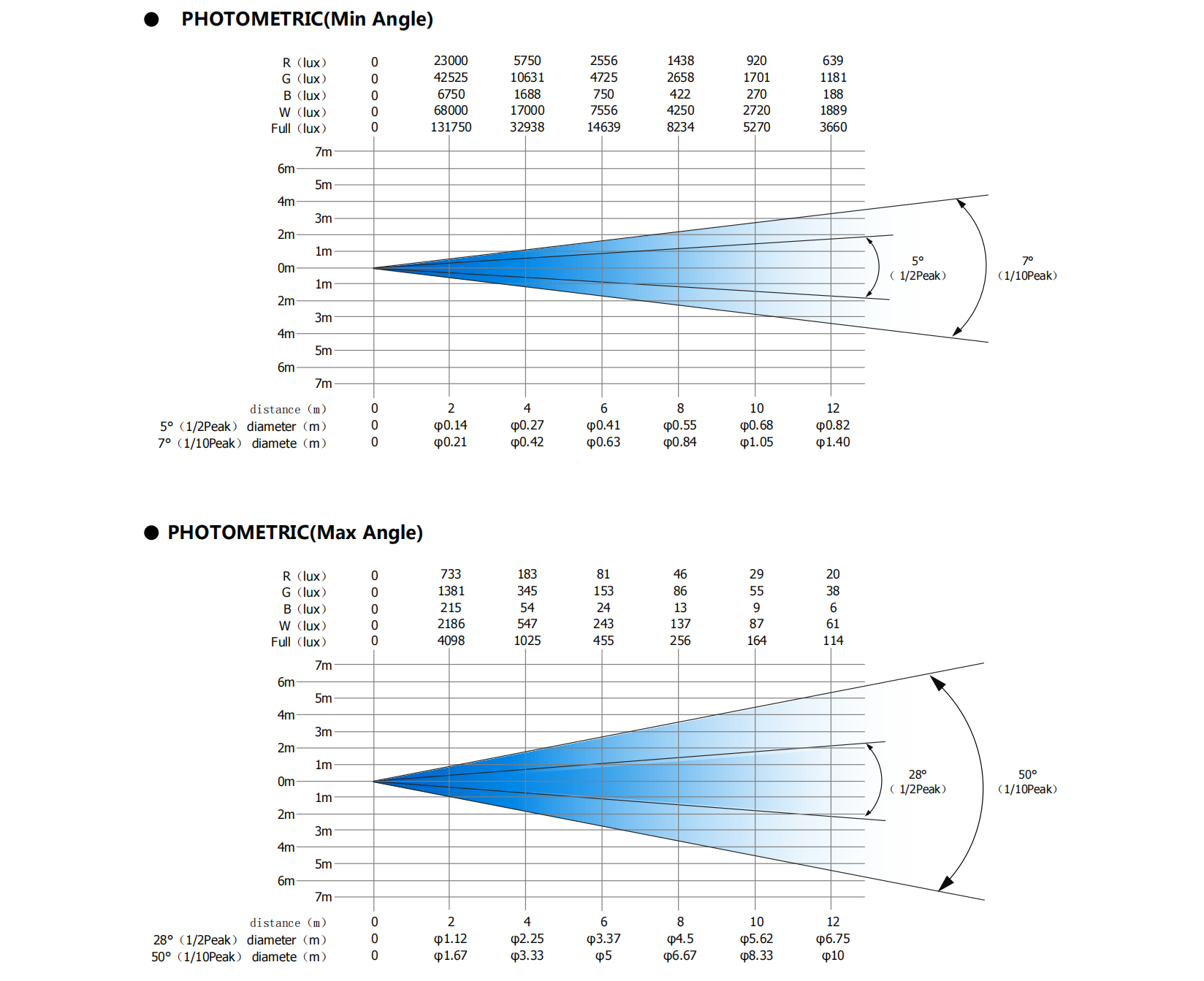

PHOTOMETRICS

FINE 608 BATTEN(OSRAM光源)英文版-20200601_00
