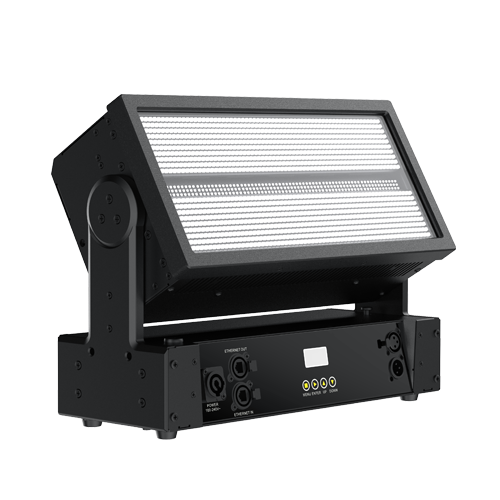

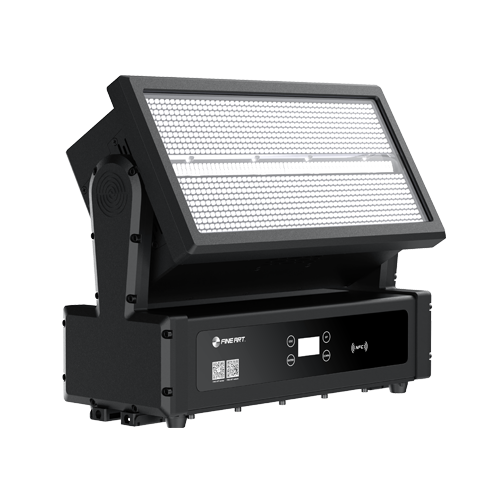

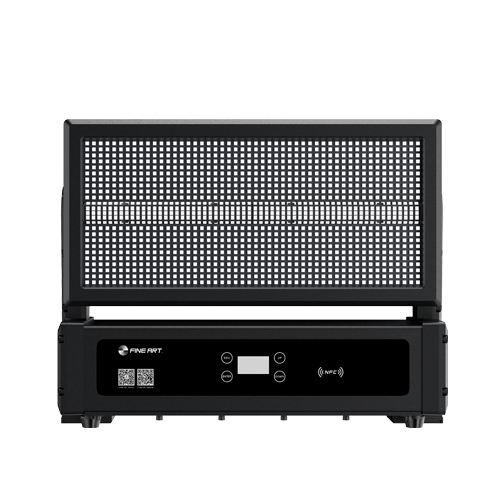

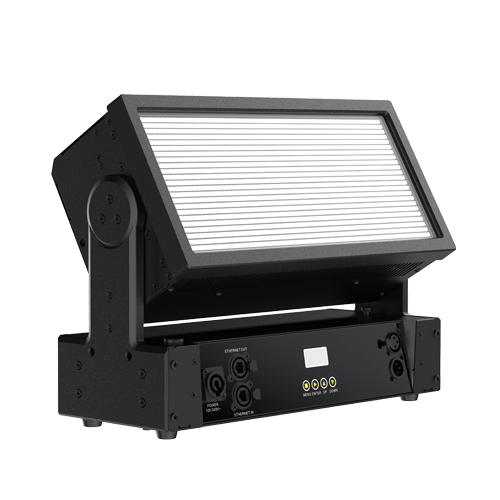

FINE 1200C STROBE IP
OVERVIEW
FINE 1200C STROBE IP is an excellent all-weather luminaire. The innovative design brings rich and delicate visual effects. It has up to 40 RGB color pixels, making the lighting effect layer richer. At the same time, a total of 700W high-power white light in 10 segments can burst out more than 100,000 lumens of luminous flux, bringing a very impressive visual performance. With IP66 protection, it supports all-weather outdoor use while significantly reducing maintenance costs. The 16-bit dimming technology ensures that the lamps are not only suitable for variety shows, but also meet the demanding requirements of fine dimming for theater. The breakthrough structural design allows it to achieve the same function and effect while maintaining the same size and weight as the indoor version. In addition, the built-in non-touch NFC function, through the mobile phone APP touch can operate all the functions of the lamp panel, greatly improving the convenience of use. This product is undoubtedly ideal for professional stage performances and outdoor activities.
TECHNICAL SPECIFICATION
LIGHT SOURCE
  • White light: 5W x 180, 6500K
  • Color light: 0.2W x 1000, RGB 3 in 1

  • Average Life Span: 50000h

  • Color rendering index: Ra: 80

  • White light: 5W x 180, 6500K
  • Color light: 0.2W x 1000, RGB 3 in 1

  • Average Life Span: 50000h

  • Color rendering index: Ra: 80

OPTICAL SYSTEM
  • Light Angle: 60° ~ 110 °

  • Color temperature: 6500K±250K

  • Light Angle: 60° ~ 110 °

  • Color temperature: 6500K±250K

EFFECTS
  • Dimming: 0 ~ 100% linear dimming, 65536 dimming accuracy

  • Stroboscopic: 1 ~ 25 Hz, and a variety of stroboscopic effect options

  • 100 color macros, 96 effects macros

  • Dimming: 0 ~ 100% linear dimming, 65536 dimming accuracy

  • Stroboscopic: 1 ~ 25 Hz, and a variety of stroboscopic effect options

  • 100 color macros, 96 effects macros

MOVEMENT PARAMETER
  • Vertical 185°, 16 Bit control

  • Optocoupler encoder positioning system

  • Vertical 185°, 16 Bit control

  • Optocoupler encoder positioning system

CONTROL AND PROGRAMMING
  • Channel control: Stand 23/RGB 138/SIMP 16/RGB8+130/PixDim 61/PixTen 48

  • Communication protocol: DMX 512/RDM protocol, Art-net protocol, sACN protocol

  • Menu display: black and white 1.3 inches, OLED display, Chinese/English, language can be switched at will, font can be reversed 180° display

  • Channel control: Stand 23/RGB 138/SIMP 16/RGB8+130/PixDim 61/PixTen 48

  • Communication protocol: DMX 512/RDM protocol, Art-net protocol, sACN protocol

  • Menu display: black and white 1.3 inches, OLED display, Chinese/English, language can be switched at will, font can be reversed 180° display

ELECTRONIC CONTROL TECHNOLOGY
  • Built-in self-charging battery, edit menu without power;

  • Heat dissipation system: intelligent heat dissipation; Advanced scientific thermal system design, so that the internal system of the lamp are in a reasonable working temperature range, can extend the service life of the lamp and improve the reliability of the lamp;

  • Electronic sensing detection;

  • DMX channel level monitoring;

  • Y-axis is driven by three-phase motor, low speed scanning smooth, low noise;

  • Query lamp information through the display screen (power on time, lamp use time, fault information, etc.

  • RDM data bidirectional transmission function;

  • From the console can be completed to change the DMX address code, switch light bulbs, machine reset, mode conversion;

  • The software upgrade device can be connected to the DMX port of the lamp to upgrade the software;

  • Input signal isolation protection function;

  • FINE ART cloud system

  • Built-in self-charging battery, edit menu without power;

  • Heat dissipation system: intelligent heat dissipation; Advanced scientific thermal system design, so that the internal system of the lamp are in a reasonable working temperature range, can extend the service life of the lamp and improve the reliability of the lamp;

  • Electronic sensing detection;

  • DMX channel level monitoring;

  • Y-axis is driven by three-phase motor, low speed scanning smooth, low noise;

  • Query lamp information through the display screen (power on time, lamp use time, fault information, etc.

  • RDM data bidirectional transmission function;

  • From the console can be completed to change the DMX address code, switch light bulbs, machine reset, mode conversion;

  • The software upgrade device can be connected to the DMX port of the lamp to upgrade the software;

  • Input signal isolation protection function;

  • FINE ART cloud system

POWER SUPPLY
  • Input voltage: 100-240 ~ Input frequency: 50/60Hz Maximum input current: 8.5A

  • Input power: 850@100V; Power factor: 0.98

  • Input voltage: 200-240 ~ Input frequency: 50/60H

  • Power socket: PowerCON input

  • Signal input/output: three core, RJ45 interface

  • Input voltage: 100-240 ~ Input frequency: 50/60Hz Maximum input current: 8.5A

  • Input power: 850@100V; Power factor: 0.98

  • Input voltage: 200-240 ~ Input frequency: 50/60H

  • Power socket: PowerCON input

  • Signal input/output: three core, RJ45 interface

WORKING ENVIRONMENT
  • -10°C~40°C

  • -10°C~40°C

DIMENSIONS AND WEIGHT
  • Product size: 402 x 194 x 287mm

  • Package size: 956 x 612 x 544mm

  • Net weight: 13 kg

  • Gross weight: 100 kg

  • Product size: 402 x 194 x 287mm

  • Package size: 956 x 612 x 544mm

  • Net weight: 13 kg

  • Gross weight: 100 kg

PACKAGE
  • 4 pcs / flight case

  • 2 pcs / carton box

  • 4 pcs / flight case

  • 2 pcs / carton box

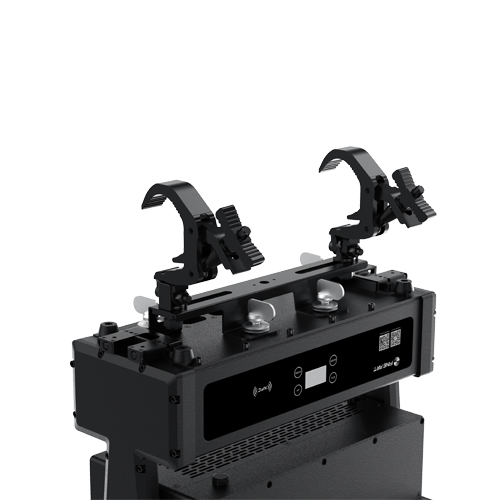

INSTALL
  • Horizontal or vertical installation

  • Split light hook

  • Safety rope connecting hole

  • Horizontal or vertical installation

  • Split light hook

  • Safety rope connecting hole

IP RATE
  • IP 66

  • IP 66

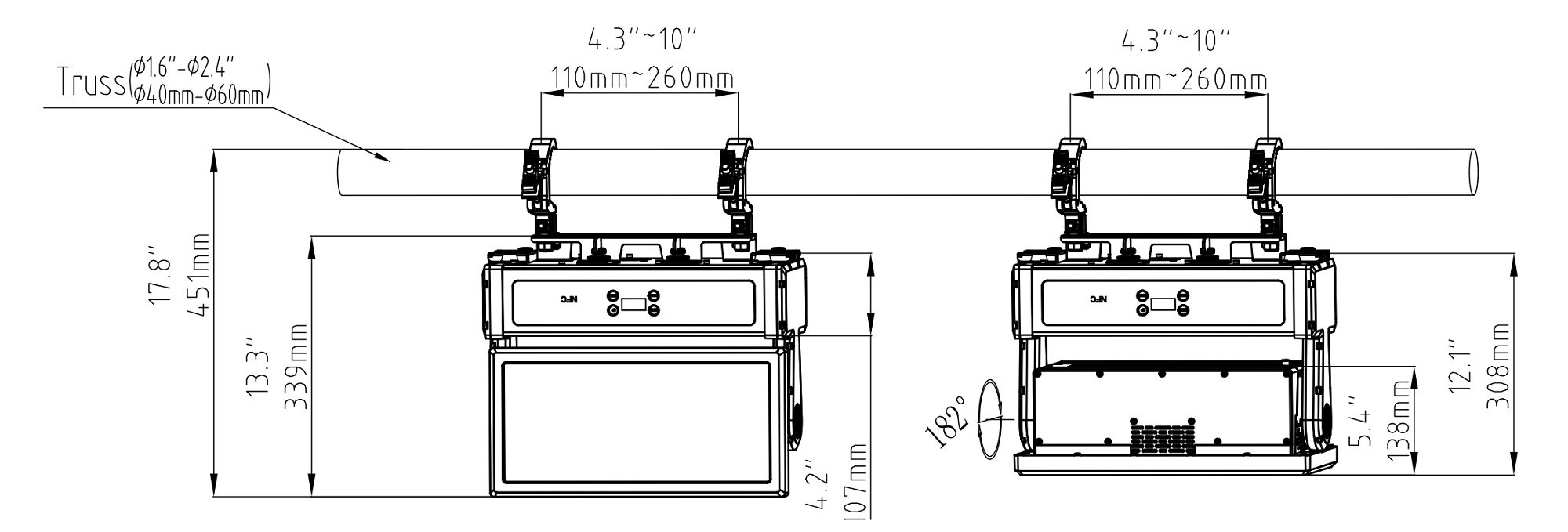

DIMENSIONS

910730210037 FINE 1200C STROBE IP Dimension drawing 2024-10-14_00

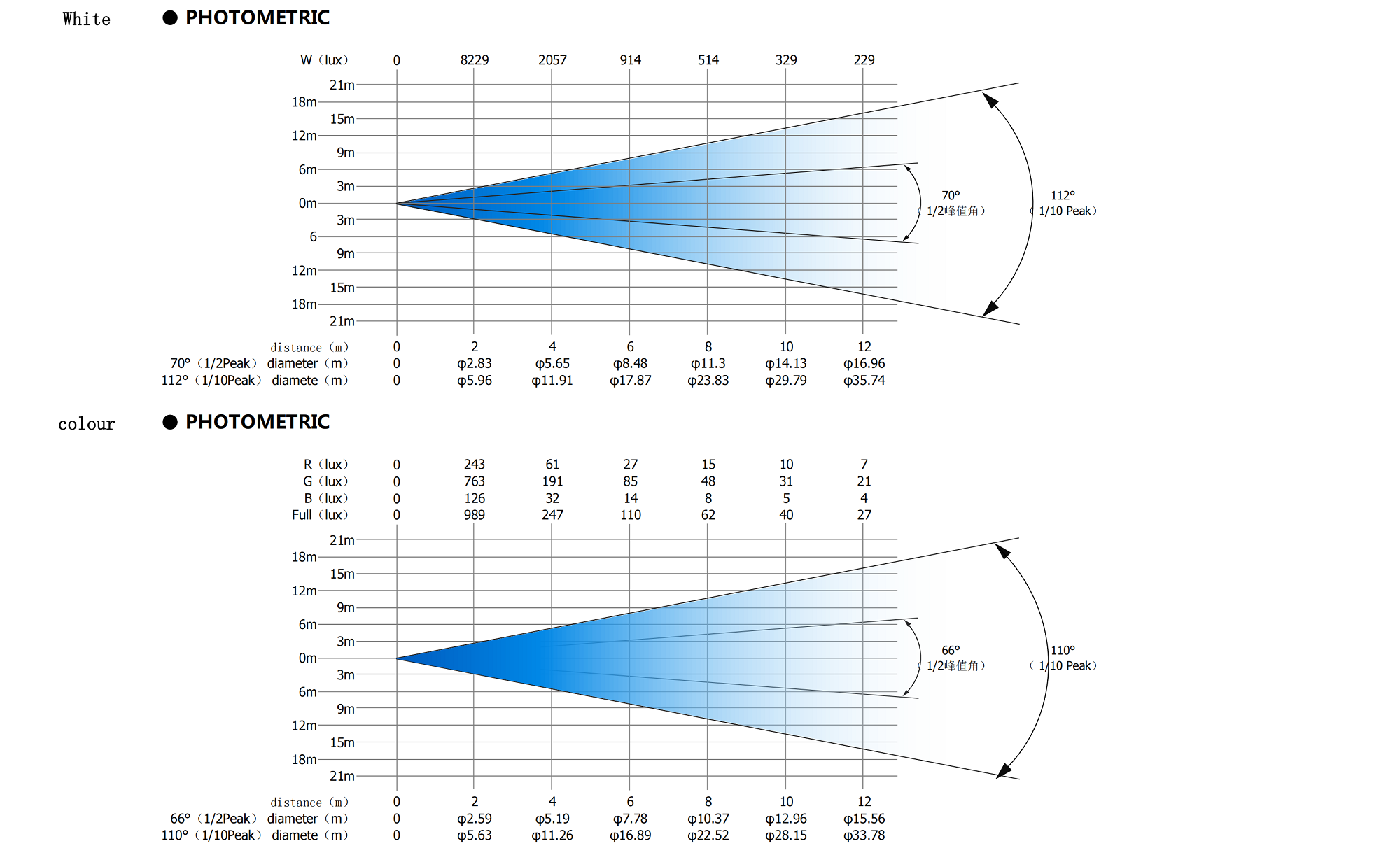

PHOTOMETRICS
FINE 1200C STROBE IP 照度表(英文版)-20241015_00
GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
Filename
Size
Uploaded
Downloading
TEKMAND
icon
FINE 1200C STROBE IP (TEKMAND)
2024-10-21
MA2
icon
FINE 1200C STROBE IP (MA2)
2024-10-21
Drawings
icon
FINE 1200C STROBE IP Dimension Drawings
2024-10-16
