• 32x optical zoom

• Day and night conversion (ICR)

• PAN 540°, 16 Bit control

• TILT 270°, 16 Bit control

• Magnetic Encoder Positioning System

• Channel control: 8 (Standard)

• protocol: DMX512/RDM, Art-net, sACN

• Menu display: 2.0-inch LCD display, Chinese/English can be switched freely, 180°reverse display, button operation mode.

Electronic sensor detection

DMX channel monitoring

PAN/TILT is driven by three-phase motor, smooth and low noise

Query fixture information through the display screen

RDM data bidirectional transmission

The DMX address code, lamp on/off, machine reset, and mode switch can all be modified directly from the console

Software can be upgraded via the DMX port

Input signal protection

• Input voltage range: AC 100-240V, 50/60Hz

• Maximum input power: 30W

• PF≥0.9

• Power connection : PowerCON TRUE1

• Signal input/output: 3 pin XLR, RJ45

• temperature: -10°C ~40°C

• Fixture Dimension: 254x172x341mm

• Packing size: 1164x544x597mm

• Net weight: 7.9 kg

• Gross weight: 113 kg

• 8 pcs / flight case

• 1 pc / carton

• Installed horizontally or vertically, can be side-mounted

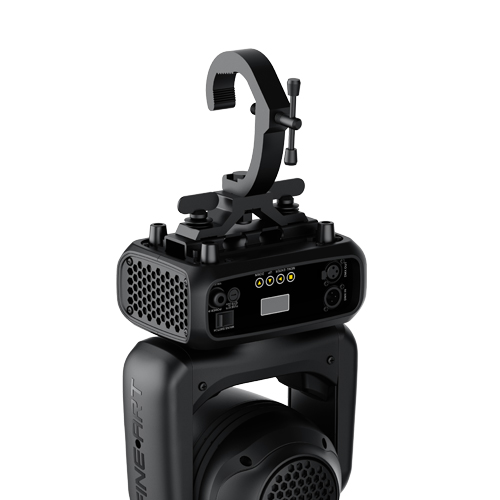

• 1pc integrated hook for Φ30-Φ60mm Truss

• IP 65
