FINE 1400LT iSPOT IP
OVERVIEW
FINE 1400LT iSPOT IP is your only choice. This professional-grade LED followspot has a true stadium-level coverage range and is used in conjunction with the FINE iSPOT PILOT pan-tilt system, replacing all other types of followspots. The fixture integrates a high-speed, high-definition digital camera, has an IP66 protection rating, and features a 32x optical zoom, making it suitable for black-out environments with light levels as low as 0.05 lux. With the latest optical design and powerful LED custom high-efficiency modules, it achieves an industry-leading 355 lux light output at 100 meters. The 210mm front lens generates a powerful beam, creating an impressive visual effect. It is equipped with a full-range cutting system that can rotate ±90°, providing clear edge imaging without distortion. The FINE 1400LT iSPOT IP redefines light output and optical excellence while retaining all the details of theatrical precision, making it the next-generation, unparalleled professional followspot for indoor and outdoor live performances and concerts.
TECHNICAL SPECIFICATION
CAMERA
  • 32x optical zoom

  • convertible in the day and night (lCR)

  • 32x optical zoom

  • convertible in the day and night (lCR)

LIGHT SOURCE
  • Light source: 1000w

  • Lifespan: >20000h

  • CRI: Ra>95,R9>90, TLCI>95

  • Light source: 1000w

  • Lifespan: >20000h

  • CRI: Ra>95,R9>90, TLCI>95

OPTICAL SYSTEM
  • Light output angle: 3°-9°

  • Color temperature: 6250K+250K

  • Light output angle: 3°-9°

  • Color temperature: 6250K+250K

COLOR SYSTEM
  • CMY infinite color mixing

  • CTO color temperature linear change range:2700K-6000K

  • 1 independent color wheel with 6 color filters +white light, with step and linear color changemode,and adjustable speed rainbow water effect

  • CMY infinite color mixing

  • CTO color temperature linear change range:2700K-6000K

  • 1 independent color wheel with 6 color filters +white light, with step and linear color changemode,and adjustable speed rainbow water effect

EFFECTS
  • Dimming:0~100% linear dimming

  • Soft light: 1pc independent frost,0~100% softlight effect

  • Strobe: fast strobe,multiple strobe mode selection,pulsation,asynchronous,synchronous, random slow, medium and fast

  • Fast electriciris, 5-10095 linear adjustment

  • Dimming:0~100% linear dimming

  • Soft light: 1pc independent frost,0~100% softlight effect

  • Strobe: fast strobe,multiple strobe mode selection,pulsation,asynchronous,synchronous, random slow, medium and fast

  • Fast electriciris, 5-10095 linear adjustment

SHAKING PARAMETERS
  • Horizontal 540°,16 Bit control

  • Vertical270°,16 Bit control

  • Magnetic encoder positioning system for horizontal and vertical positions

  • Horizontal 540°,16 Bit control

  • Vertical270°,16 Bit control

  • Magnetic encoder positioning system for horizontal and vertical positions

CONTROL AND PROGRAMMING
  • Channel control: 17(Standard)/21 (16 Bit)/25(Extend)

  • Protocol: DMX512/RDM / Art-net

  • Menu display: black and white 3.5-inch, LCDdisplay, chinese/English, font can be reversed 180°display, key operation mode

  • Channel control: 17(Standard)/21 (16 Bit)/25(Extend)

  • Protocol: DMX512/RDM / Art-net

  • Menu display: black and white 3.5-inch, LCDdisplay, chinese/English, font can be reversed 180°display, key operation mode

DIMENSIONS AND WEIGHT
  • Product size: 485x344x837mm
  • Packing size: 720x610x877mm

  • Net weight: 53.7 kg(118.4 lbs)

  • Gross weight: 93 kg (204.6 lbs)

  • Product size: 485x344x837mm
  • Packing size: 720x610x877mm

  • Net weight: 53.7 kg(118.4 lbs)

  • Gross weight: 93 kg (204.6 lbs)

WORKING ENVIRONMENT
  • Working temperature: -10°C~40°C

  • Working temperature: -10°C~40°C

PACKAGE
  • 1 pc /flight case

  • 1 pc /carton case

  • 1 pc /flight case

  • 1 pc /carton case

IP RATE
  • IP 65

  • IP 65

DIMENSIONS
910395210201 FINE 1400LT ISPOT IP LED Dimension drawing_00
PHOTOMETRICS

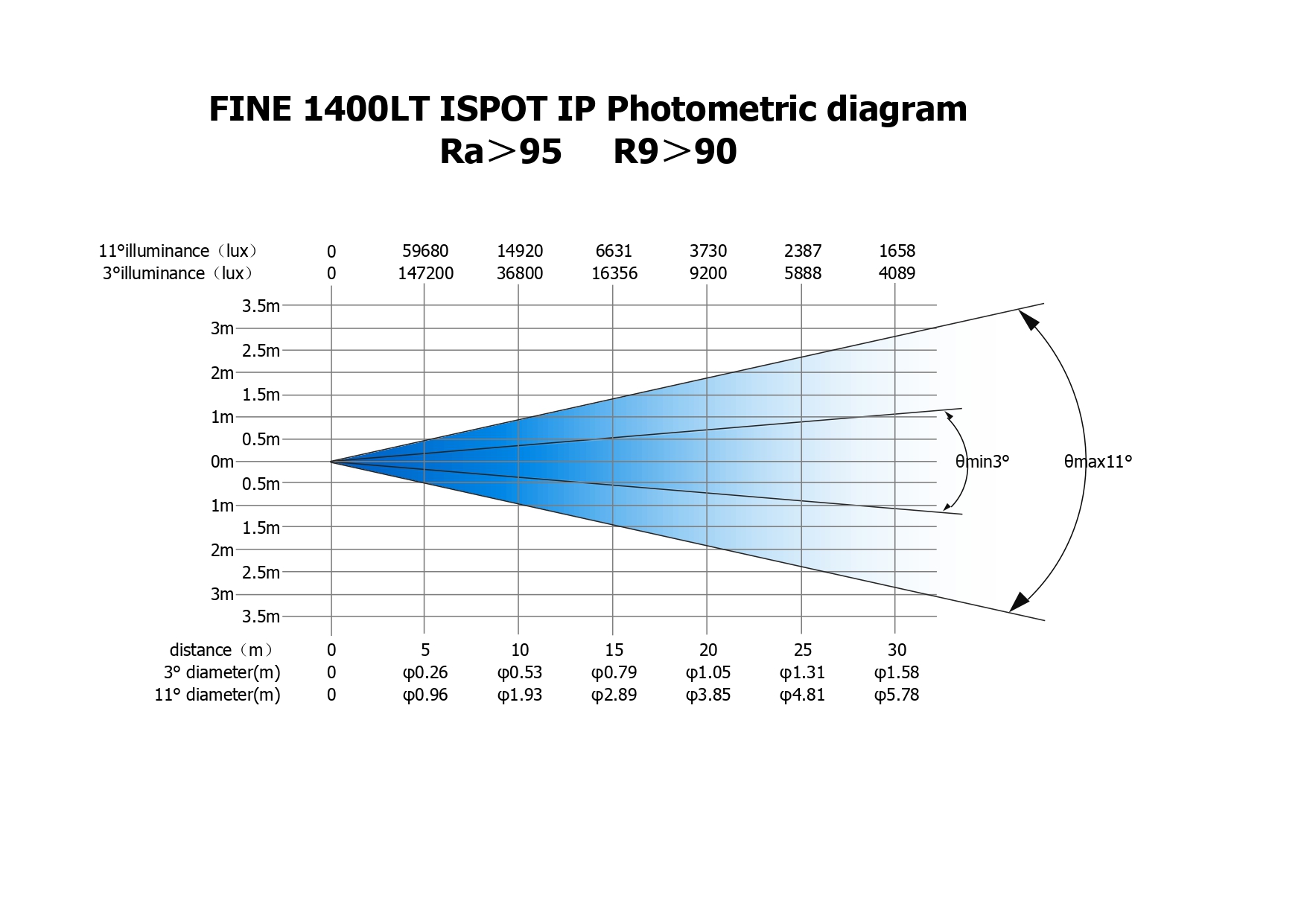

FINE 1400LT ISPOT IP  照度表(Ra>95)英文版-20250109_00(1)(1)
