Remote light tracking technology

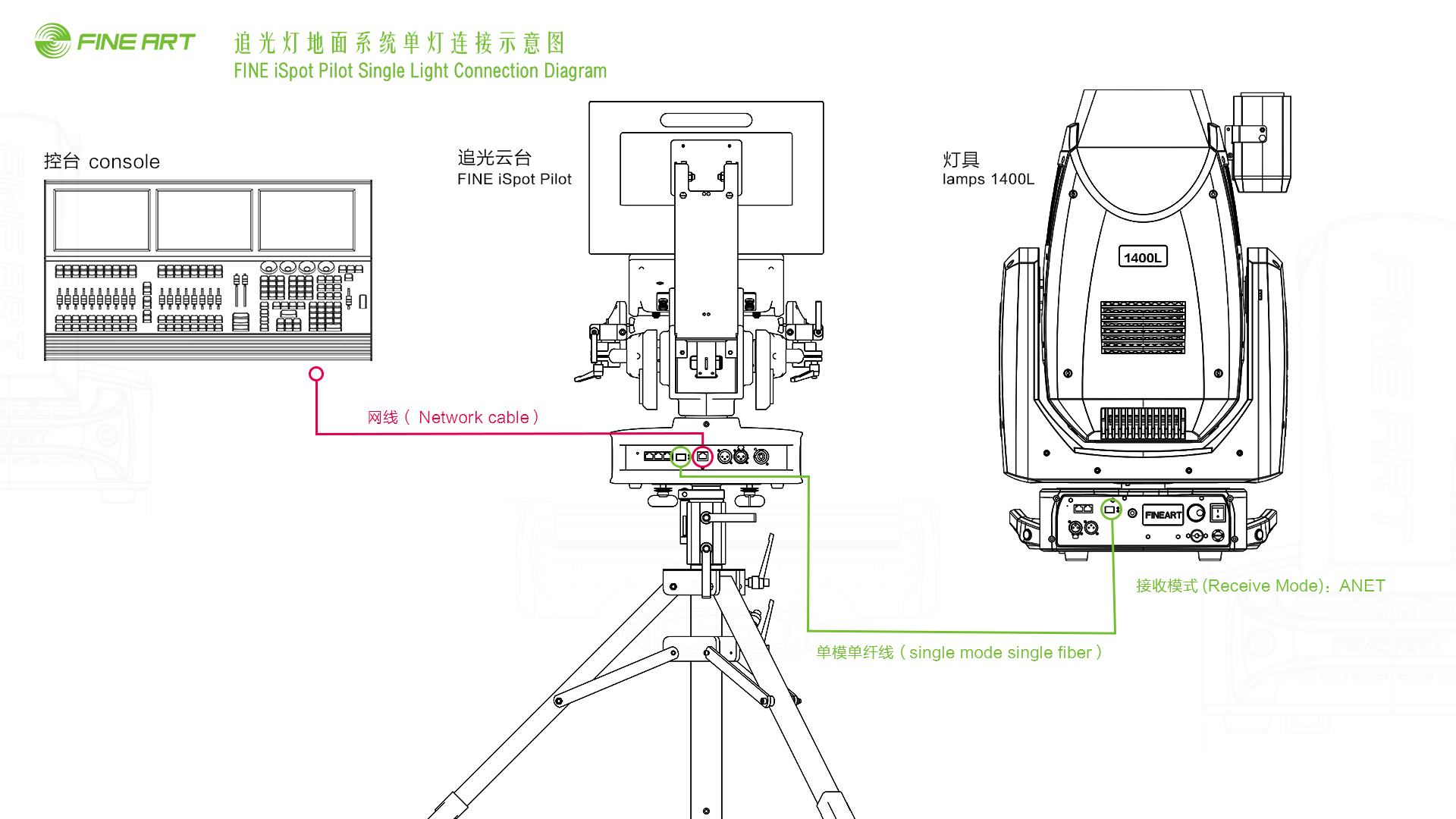

Long distance, fiber optic cabling, low latency

Real-time tracking cursor and target cursor

Support import/export light library, show files

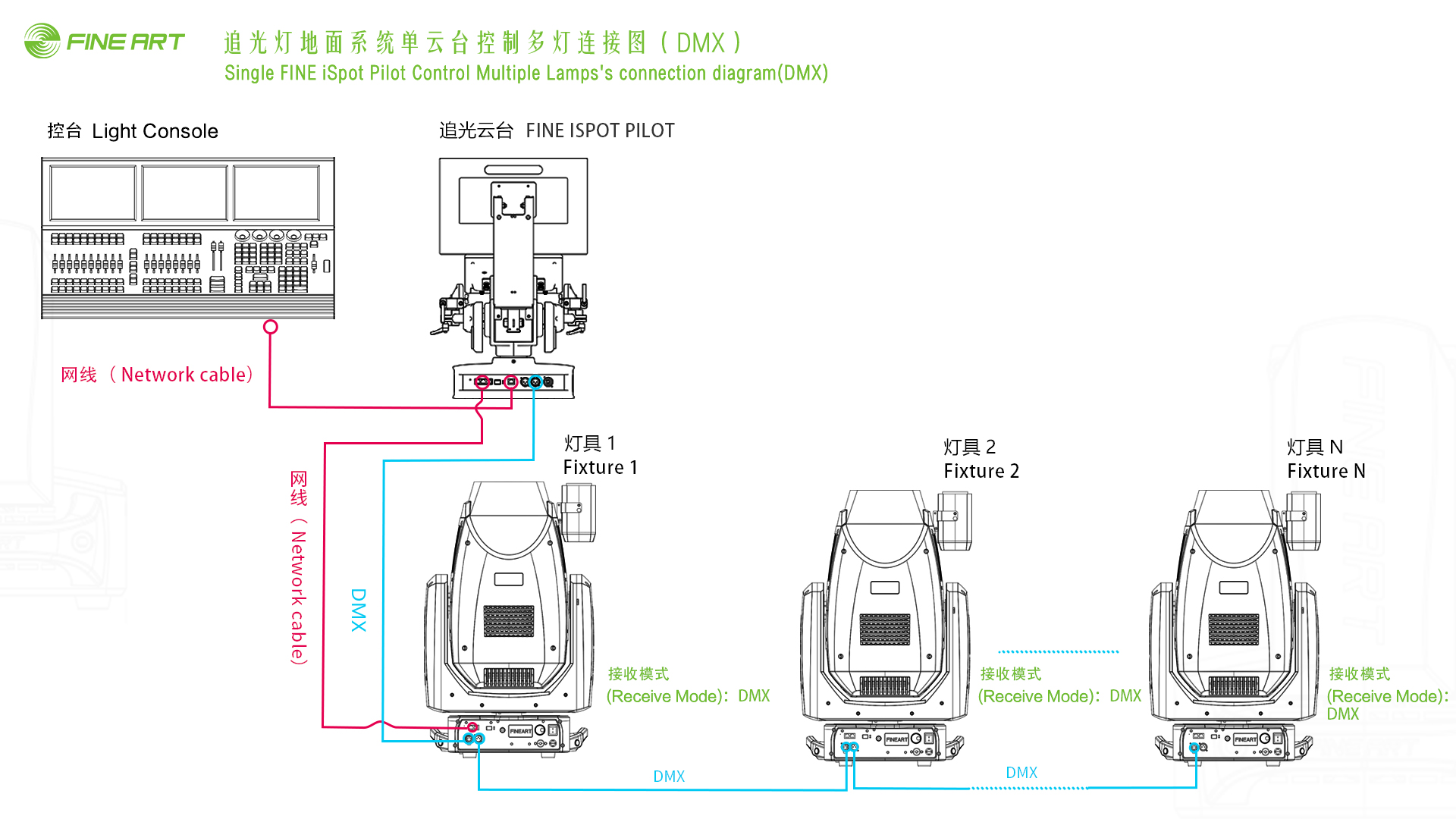

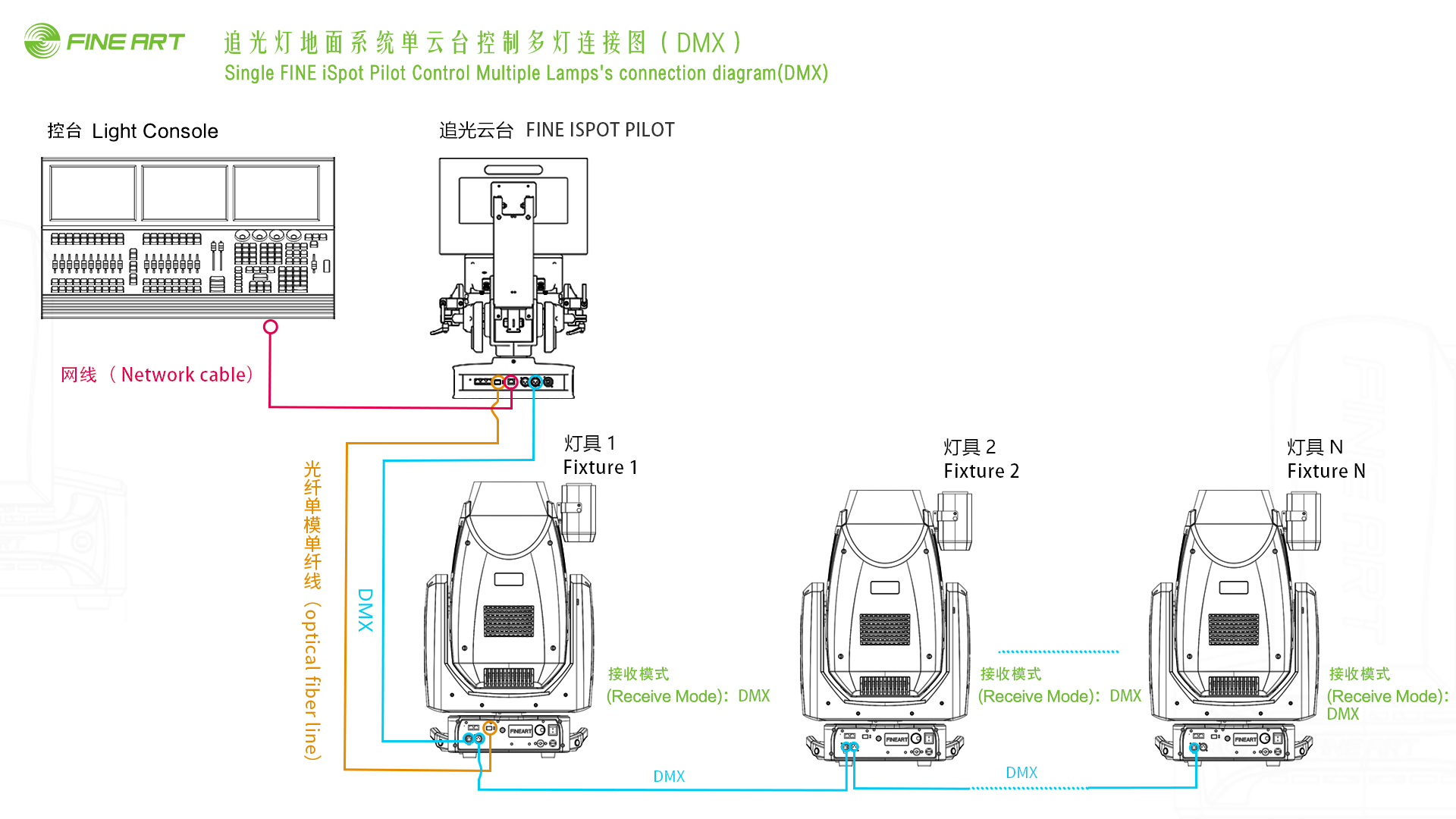

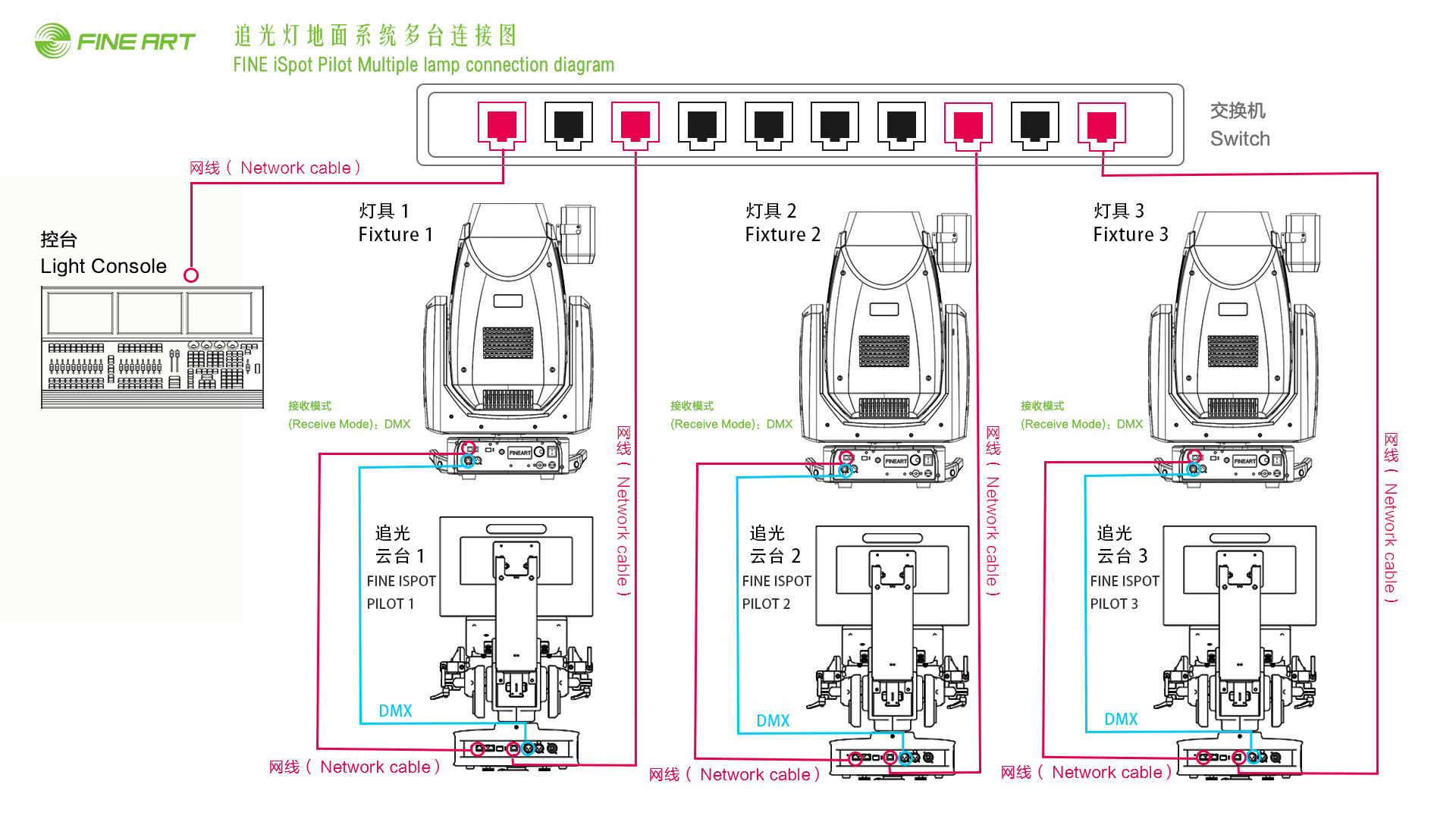

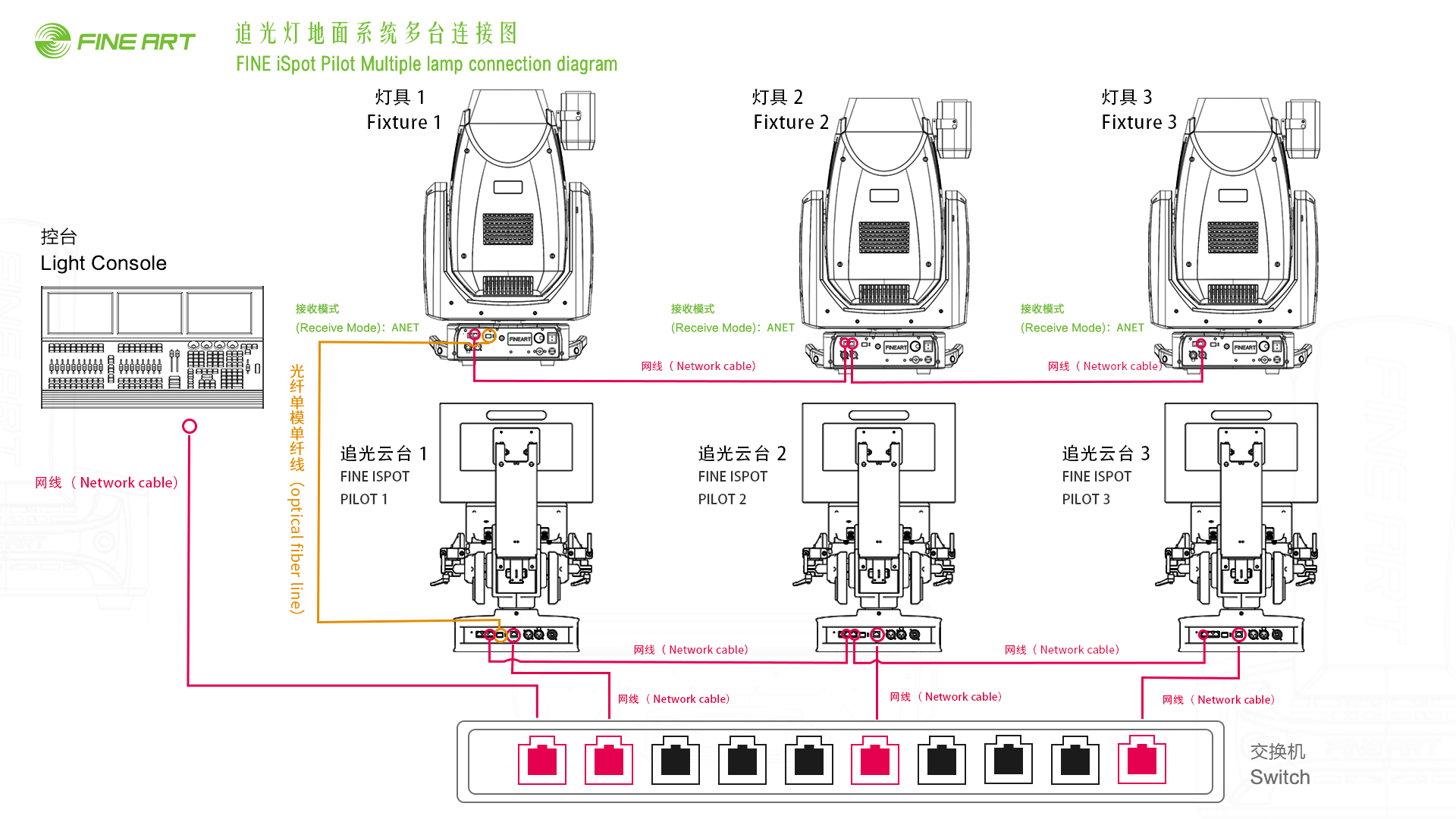

Multi-device control, can support 12 devices to track the same target

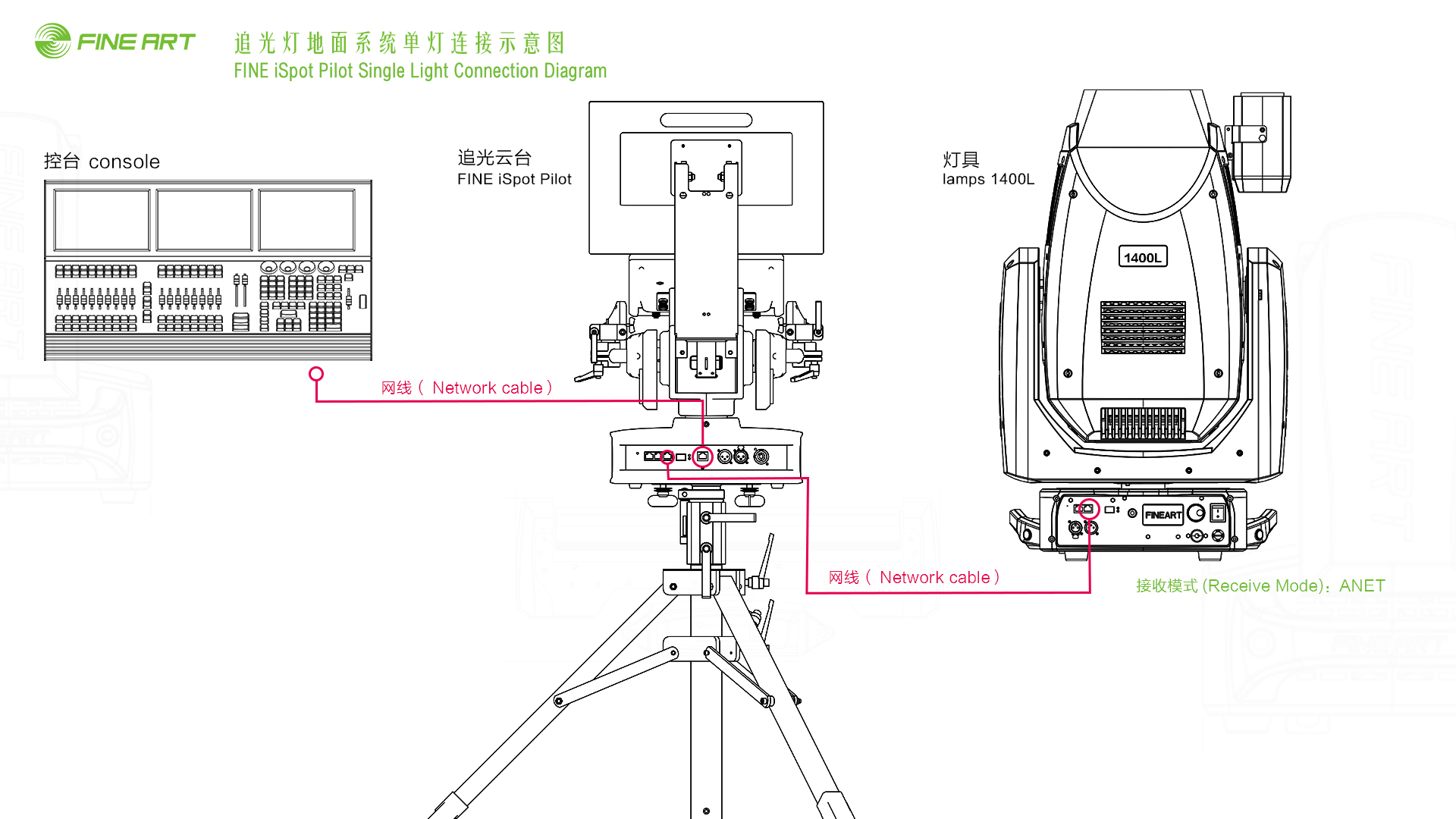

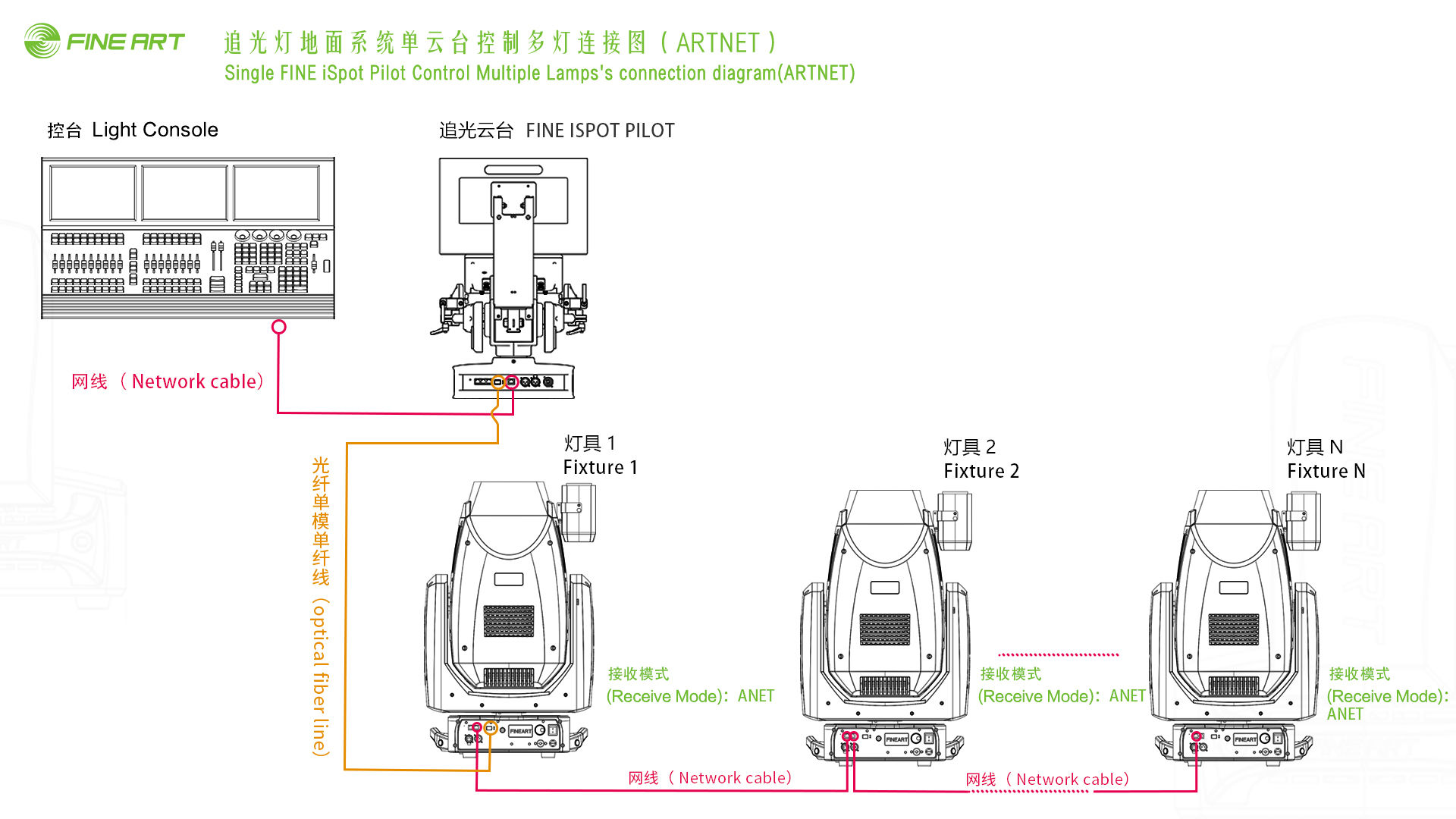

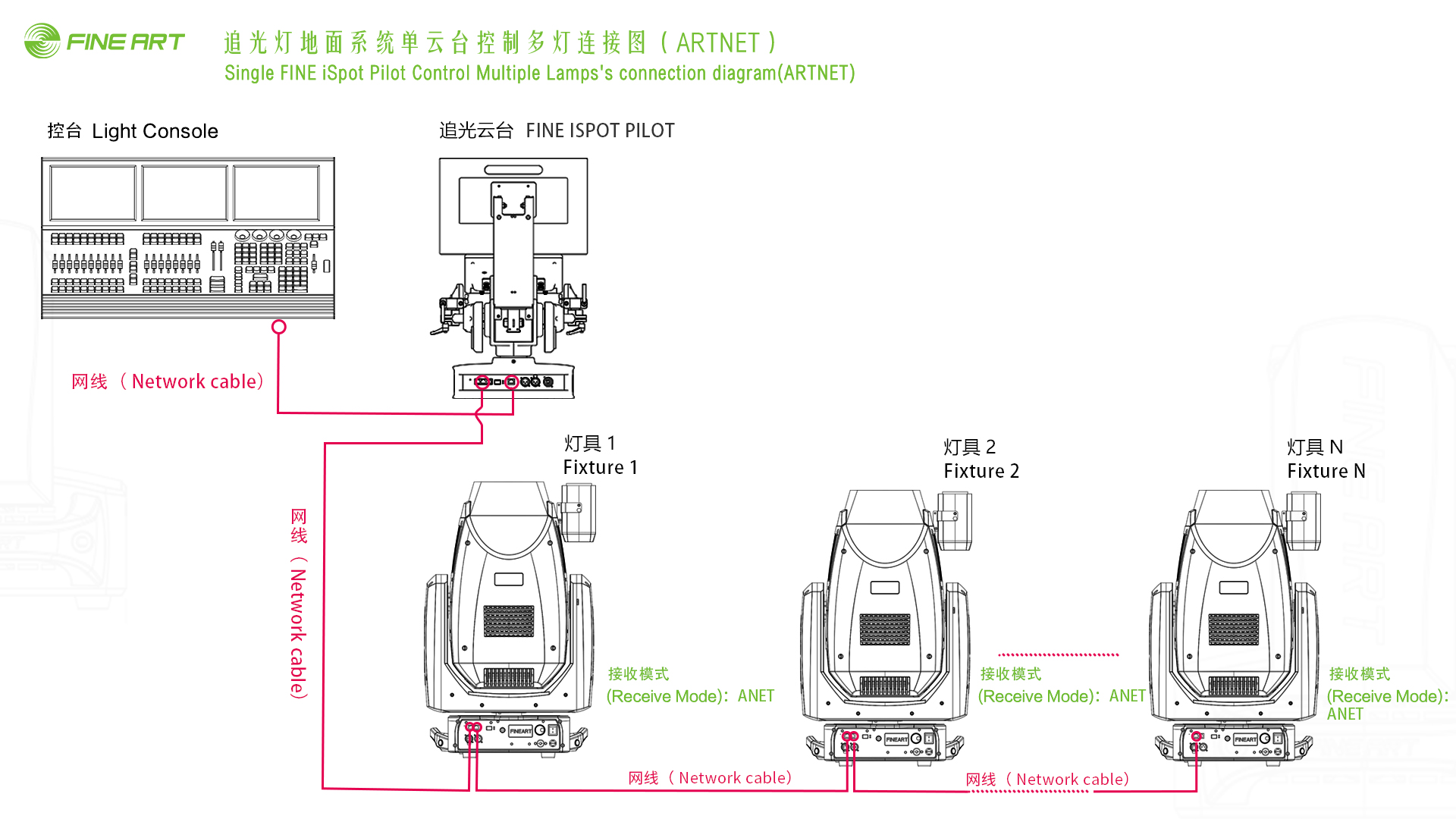

Support ART-Net to connect to Tekmand, MA and other consoles to control the function of tracking equipment

Support PosiStageNet (PSN) protocol

Multi-light height mode, realize the height of the light spot can be adjusted freely when encountering stairs

The storage of color material and position material under multi-device is independent from that of single light

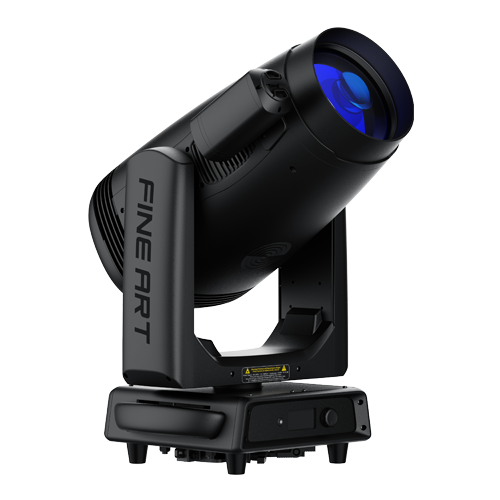

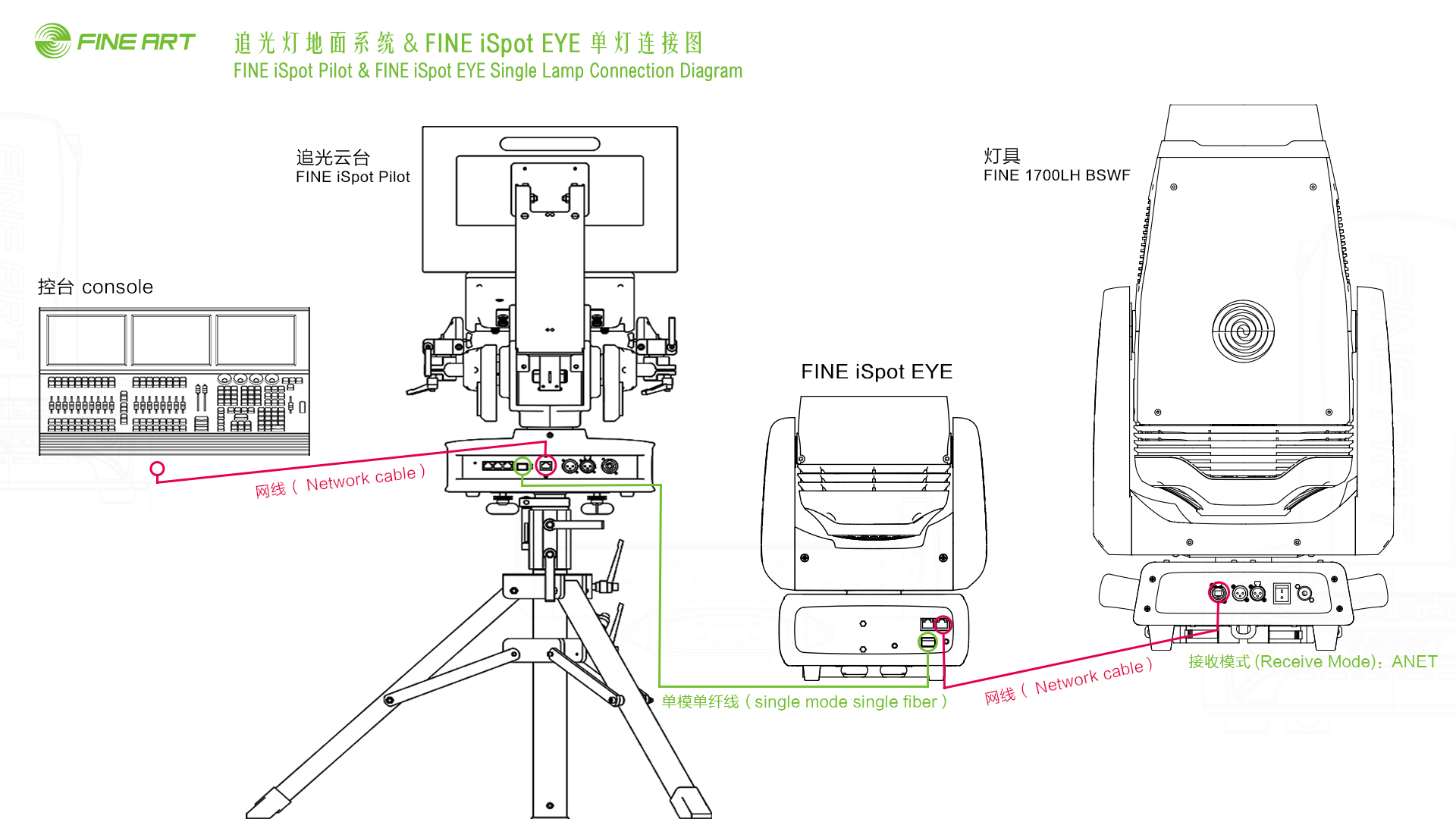

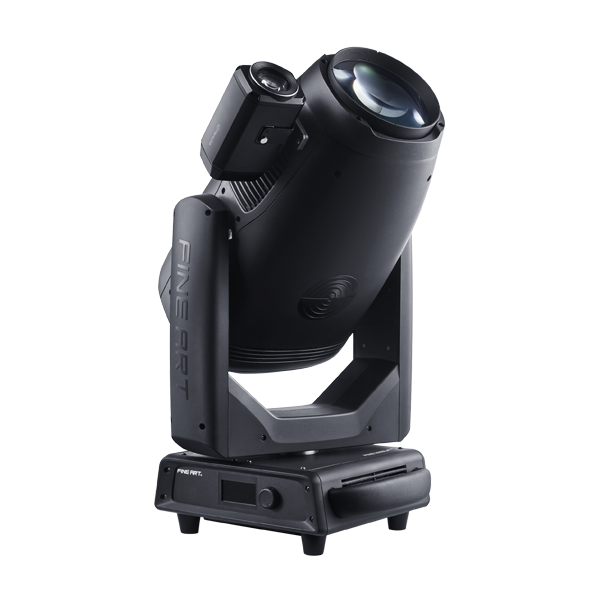

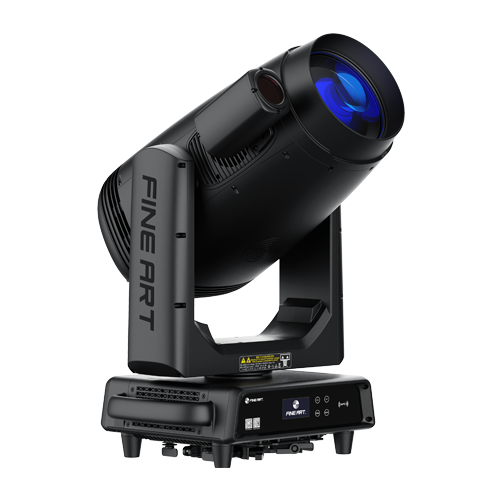

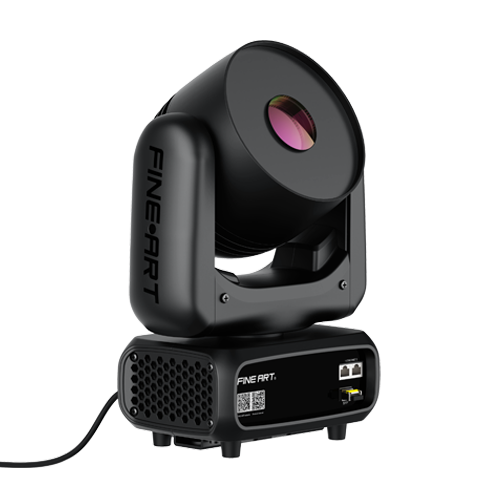

Technical lamps: FINE1700LH iSPOT\ FINE1400LH iSPOT\ FINE2000LH iSPOT and FINE iSPOT EYE+ arbitrary moving head lights

X-axis movement range: -80~80°

Y-axis movement range: -40~40°

Tracking Control: Manual

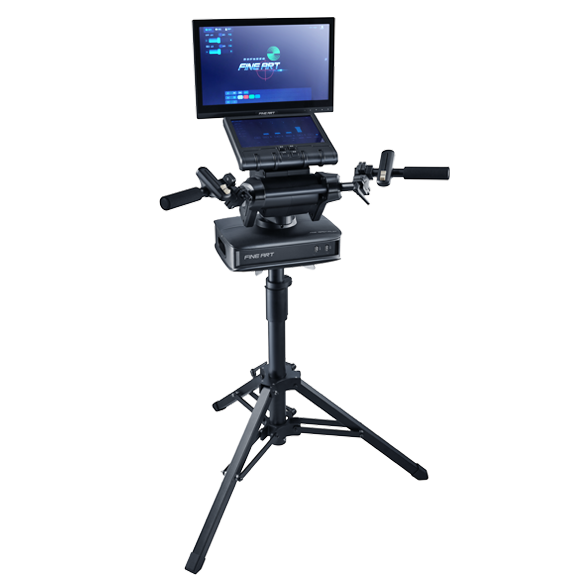

Touch input; 15.6-inch, 10.1-inch capacitive touch screen human-computer interaction

4 physical command buttons

4-way custom encoder

2-way entity attribute adjustment push rod L=60mm

Support PosiStageNet (PSN), Art-net, RDM, DMX512 protocols

Optical fiber communication technology, communication distance, low delay;

Support USB system software upgrade;Support ART-Net to connect Tekmand, MA and other lighting consoles for collaborative operation;16-bit industrial-grade encoder, accurate and reliable positioning

Input voltage range: 100-240V~ 50/60Hz

Input power: 30W

power factor: ≥0.92

Fiber port: single-mode LC fiberx1

Ethernet port: RJ45 x 3(Video/PSN)

ArtNet port: RJ45x1working environment

-10°C ~40°C

Product size: 380 x 630 x 577mm

Packing size: 813 x 570 x 906mm

Net weight: 14 kg (30lbs)

Gross Weight: 67 kg (148lbs)

1pc / flight case

Horizontal or bracket installation

IP 20
