OVERVIEW
TEKMAND NODE T2P is a two-in-one product that supports PoE cascade power supply network (ArtNet/sACN) converter (including DMX512/RDM) and signal amplifier (combiner). It is equipped with 2 customizable DMX interfaces, supports two power supply methods (mains power supply and network power supply), and is equipped with a touch color screen, which is very suitable for series installation of decentralized systems.
Share
PDF

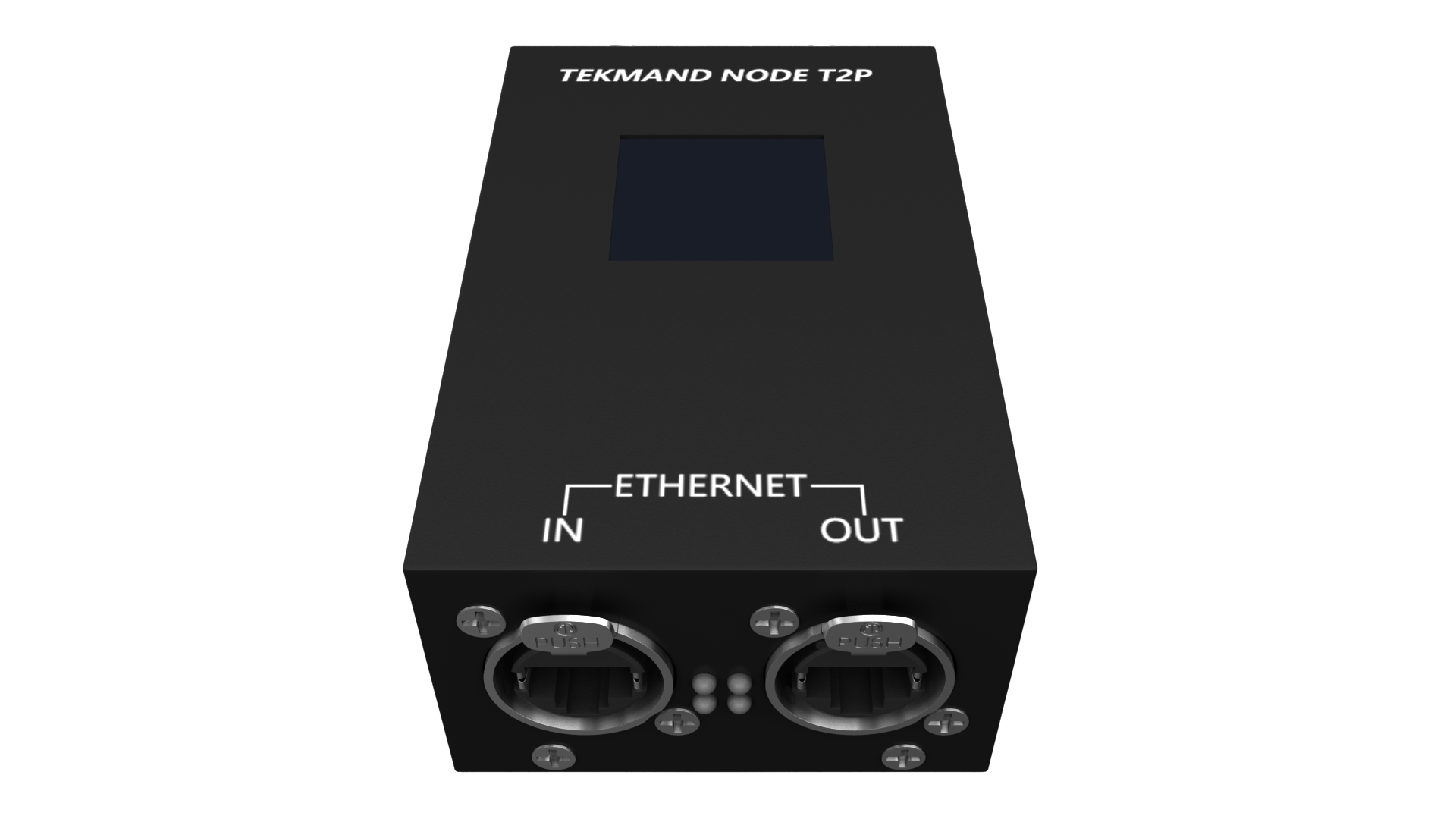

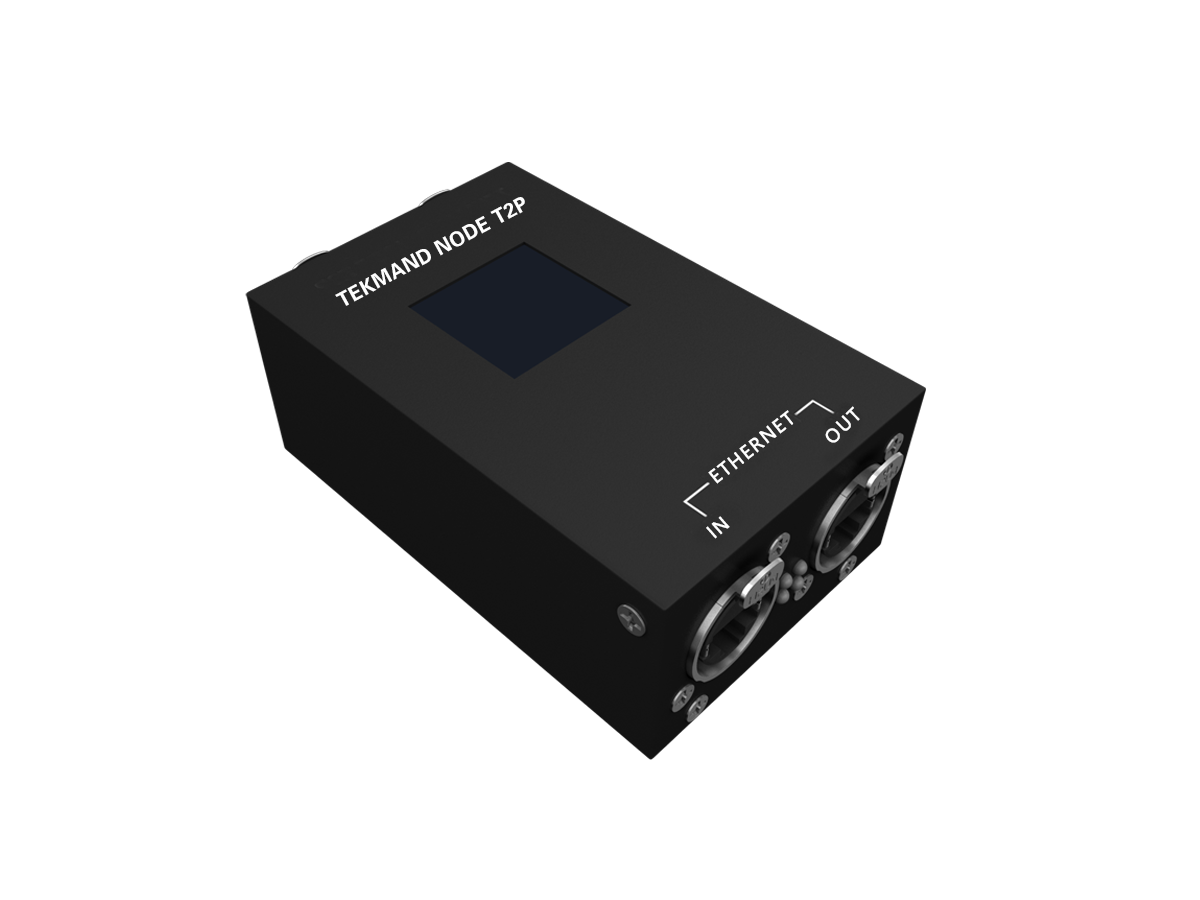

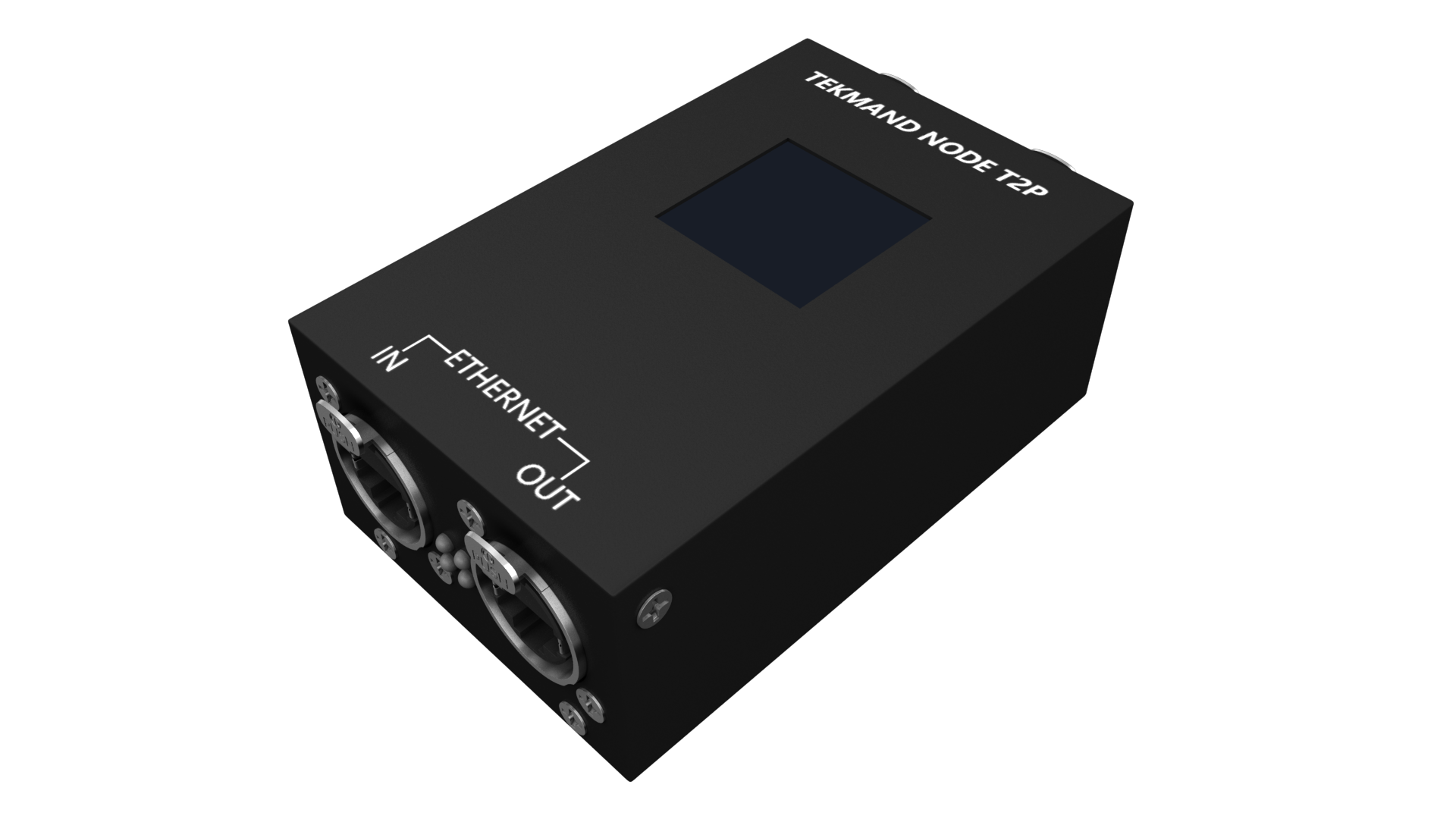

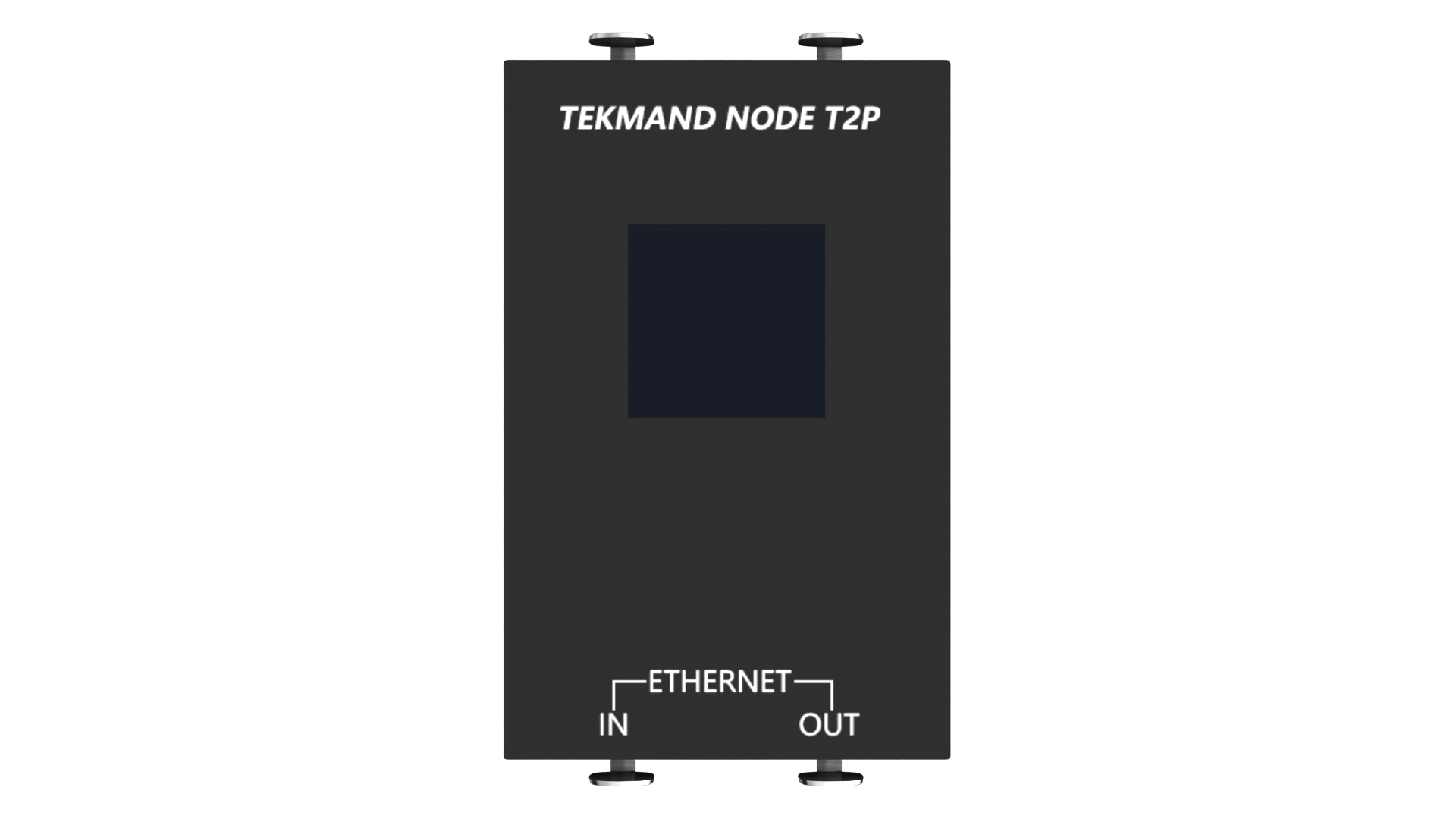

TEKMAND NODE T2P
TEKMAND NODE T2P
TEKMAND NODE T2P is a two-in-one product that supports PoE cascade power supply network (ArtNet/sACN) converter (including DMX512/RDM) and signal amplifier (combiner). It is equipped with 2 customizable DMX interfaces, supports two power supply methods (mains power supply and network power supply), and is equipped with a touch color screen, which is very suitable for series installation of decentralized systems.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
CHARACTERISTIC INFORMATION

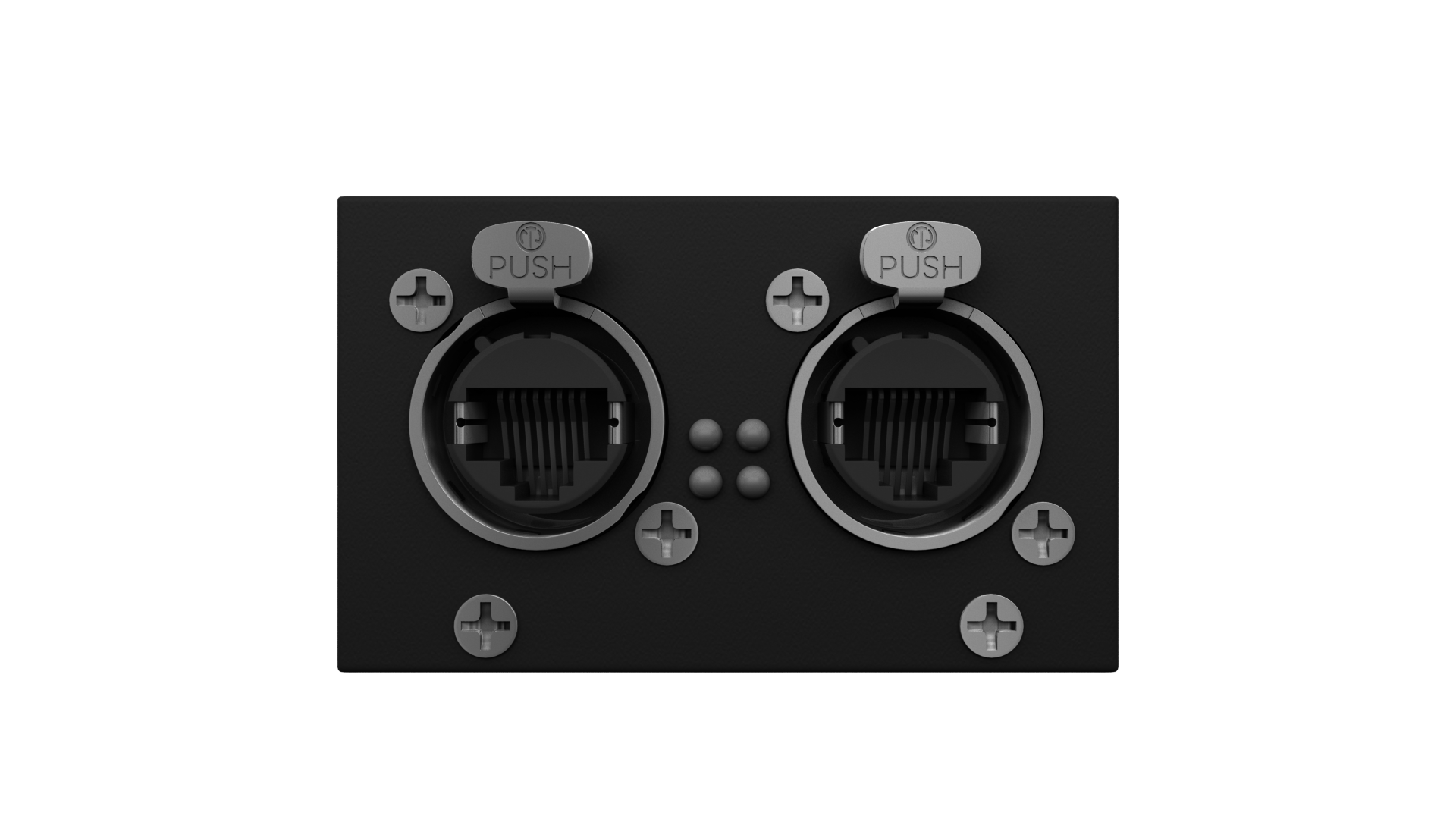

2 PoE Ethernet network interfaces (10/100/1000M), supporting PoE cascading

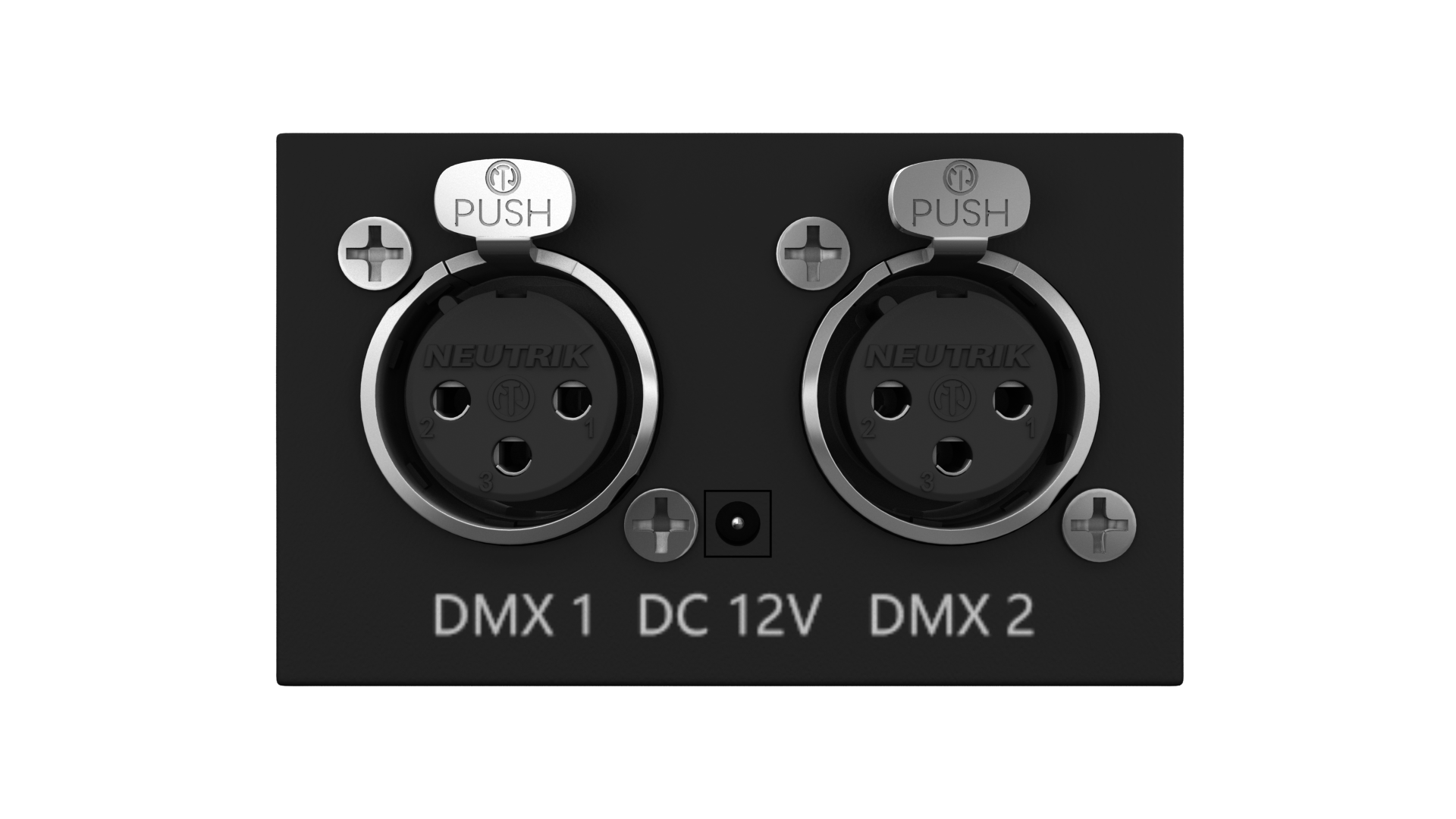

2 DMX512 output interfaces
Built-in 1 color touch screen
Support PoE network power supply
Supports multiple network protocols: ArtNet, sACN
Support ArtNet remote software upgrade/remote configuration port
Support Web to view device status
Support DMX frame rate (packet rate) setting
Support RDM remote lighting management
Power supply: DC 12V, PoE
Power: 1.3W
Product size: 92.6mmX72.4mmX44.4mm
Package size: 169mmX121mmX66mm
Net weight: 0.31KG
Gross weight: 0.4KG
Package: 1set/carton case
IP rate: IP20
Working position: With fixed device, easy to install at any position

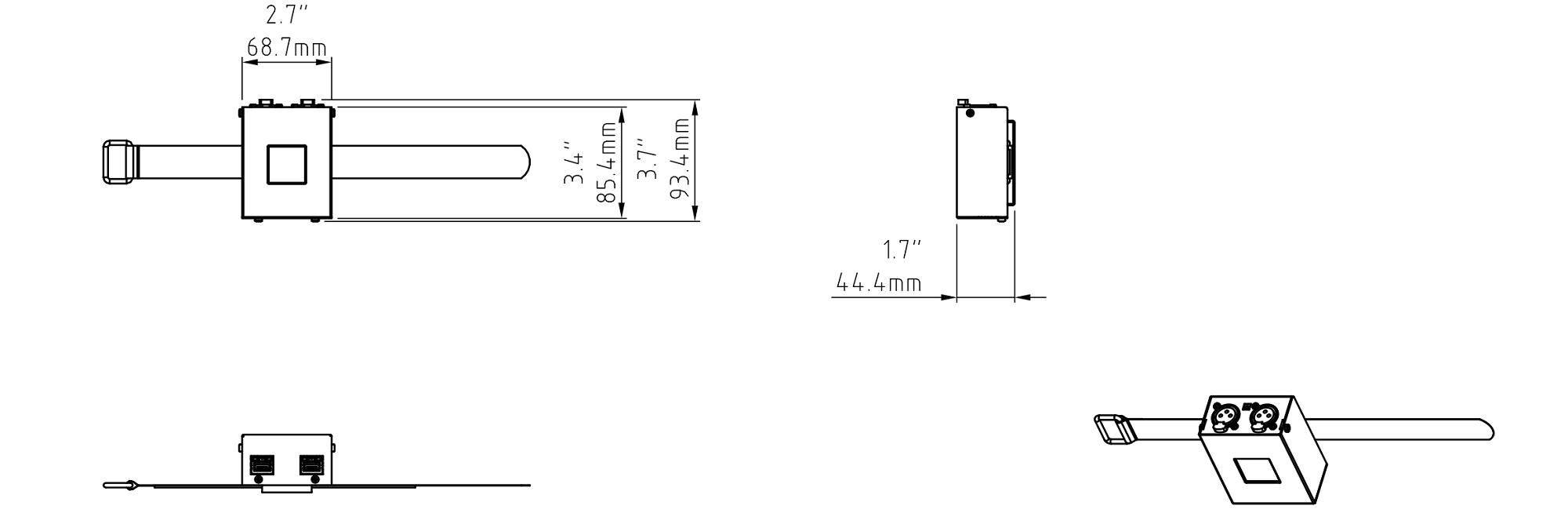

DIMENSIONS
