OVERVIEW
FINE DMX 512R/T is a wireless DMX512 transceiver with receive and transmit functions. It can connect the DMX512 signal from the control console and send it to the wireless receiver. The latest AFH technology is adopted to automatically avoid interference. The connection is easy to operate; all metal housing design, IP rating IP65, suitable for outdoor all-weather use.
Share
PDF

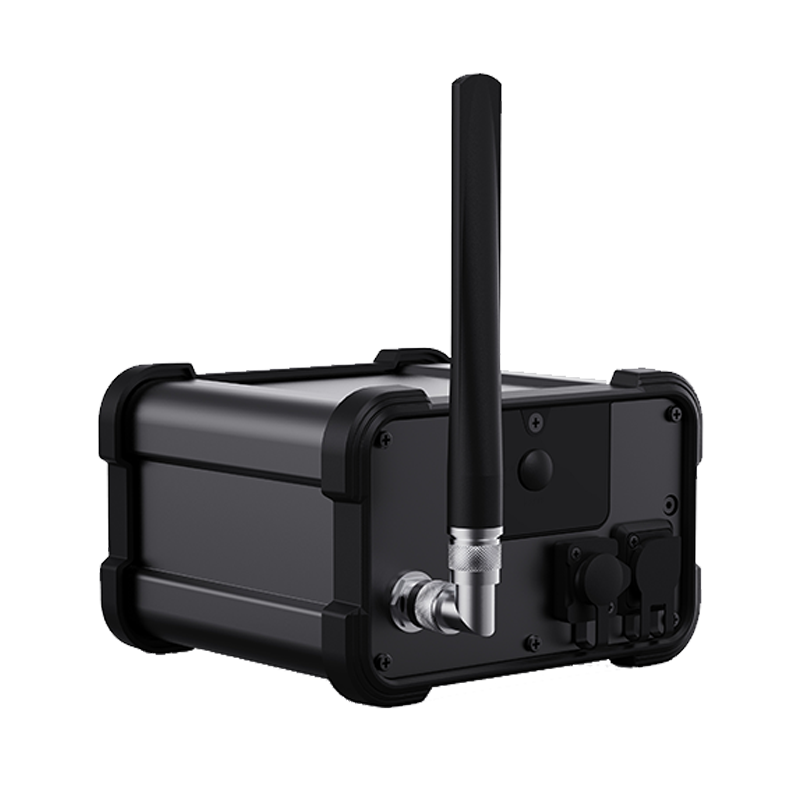

FINE DMX 512R/T
FINE DMX 512R/T
FINE DMX 512R/T is a wireless DMX512 transceiver with receive and transmit functions. It can connect the DMX512 signal from the control console and send it to the wireless receiver. The latest AFH technology is adopted to automatically avoid interference. The connection is easy to operate; all metal housing design, IP rating IP65, suitable for outdoor all-weather use.
TECHNICAL SPECIFICATION
TECHNICAL FEATURE
Dual Receive and transmit mode
512 DMX Channels
Best transmission distance ≤70M
2.4G Frequency band
DMX&RDM data in/out
Data safety
AFH technology
ELECTRICAL SPECIFICATION
Input voltage range：100-240V ~，50/60Hz
Input Current：30mA
Input consumption：1.2W
MECHANICAL SEPCIFICATION
Product dimension：125x 195 x 192mm
Carton box Dimension：340 x 245 x 180mm
Package Net weight：0.35 kg
Product Net weight：1.85 kg
Product Gross weight：3.65 kg
PACKAGE
1 pc / carton box
IP rate
IP 65
RIGGING
Mounting with Hooks
Universal safety mounting position
DIMENSIONS

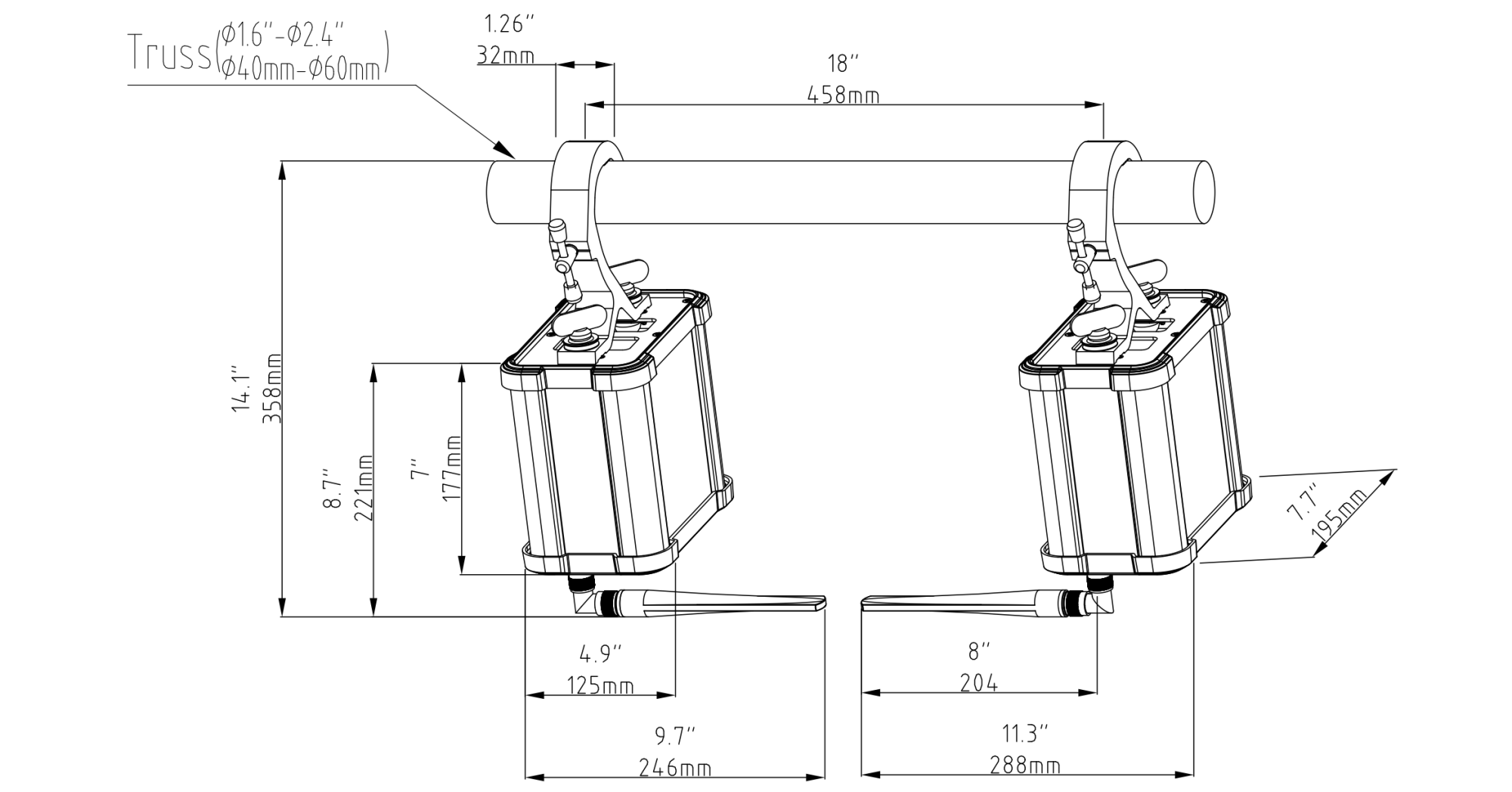

FINE DMX 512R Dimension drawing
