FINE 2060 OD
OVERVIEW
FINE 2060 OD is a DMX signal amplifier with water proof rate of IP64, integrating signal distribution, isolation and amplification. It is equipped with 6 DMX output ports, which help to extend the signal transmission distance and enhance the drive capacity of signals. Input and output ports use photoelectric isolation technology and each output has independent power supply, by which it avoid the breakage of signal mutual crosstalk, reflection and electric leakage on the equipment.
TECHNICAL SPECIFICATION
CONFIGURATION
  • Input: 1 main signal input (2 input ports) ,equipped with 3-pin male and female socket (5-pin male and female socket for option)

  • Output: 6 signal output ports, equipped with 3-pin female socket (5-pin female socket for option)

  • 1 power indicator light

  • 1 signal indicator light








  • Input: 1 main signal input (2 input ports) ,equipped with 3-pin male and female socket (5-pin male and female socket for option)

  • Output: 6 signal output ports, equipped with 3-pin female socket (5-pin female socket for option)

  • 1 power indicator light

  • 1 signal indicator light








POWER SUPPLY
  • 220V±10%~, 0.03A, 50/60Hz

  • 220V±10%~, 0.03A, 50/60Hz

POWER
  • 2.5W

  • 2.5W

STRUCTURE
  • Aluminum alloy structure

  • Aluminum alloy structure

WORKING POSITION
  • Available to connect with clamps

  • Any safe position

  • Available to connect with clamps

  • Any safe position

DIMENSION AND WEIGHT
  • Fixture Dimension: 242 x 192 x 60 mm

  • Package Dimension: 320 x 270 x 80 mm

  • Net Weight: 2.3 kg

  • Gross Weight: 2.5 kg

  • Fixture Dimension: 242 x 192 x 60 mm

  • Package Dimension: 320 x 270 x 80 mm

  • Net Weight: 2.3 kg

  • Gross Weight: 2.5 kg

PACKAGE
  • 1 pc / carton



  • 1 pc / carton



IP RATE
  • IP 65

  • IP 65

DIMENSIONS

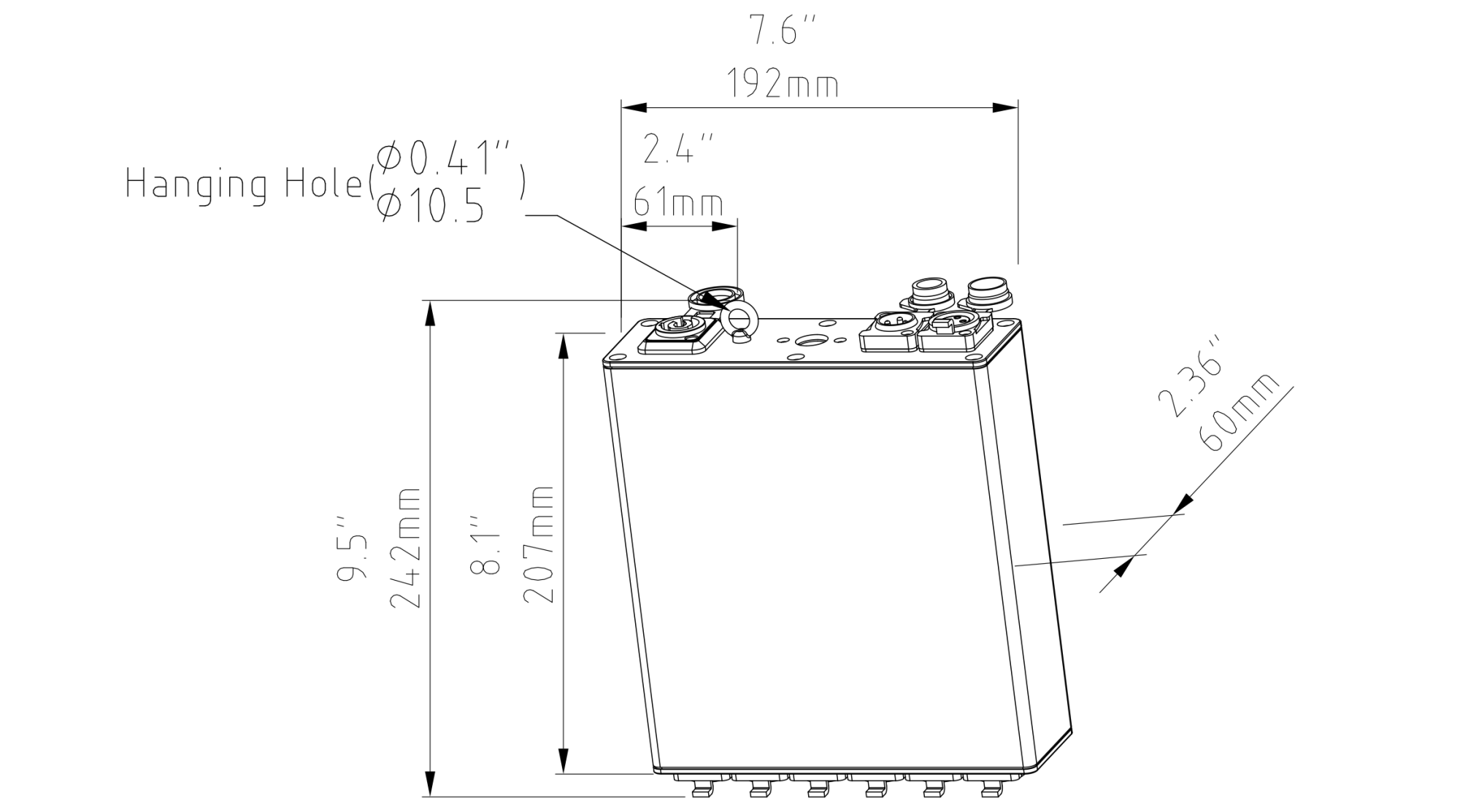

990501210006 FINE 2060 OD Dimension drawing 2024-10-28_00(1)
