OVERVIEW

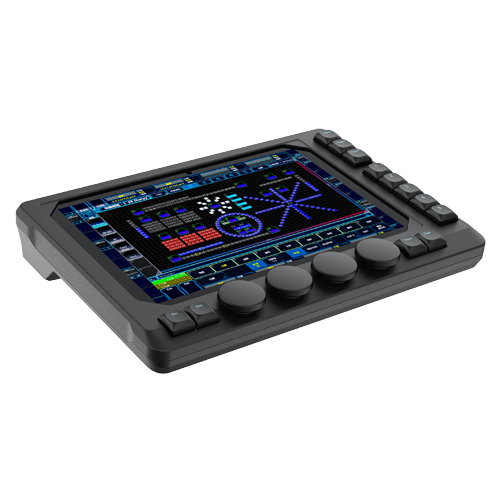

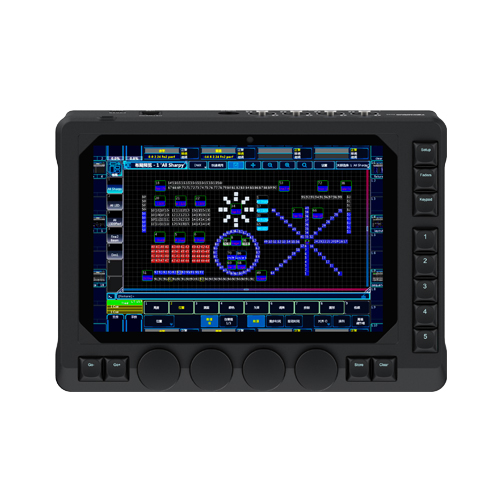

TEKMAND NANO has a delicate and portable shape, simple interface and rich functions; The volume is about the same as A4 paper, which is convenient to carry around, built-in WIFI, battery, and realizes pure wireless control of lights. Supports pre-programming in the offline state, saving a lot of time and improving work efficiency. The TEKMAND system itself can process 2048 parameters, and can control various types of lighting equipment through external extenders, such as conventional lamps, moving head lights, LED lights, video and media digital lights, etc.
TECHNICAL SPECIFICATION
FEATURE INFORMATION
Support for connecting TEKMAND series devices to create workgroups
The console itself can handle 2048 parameters

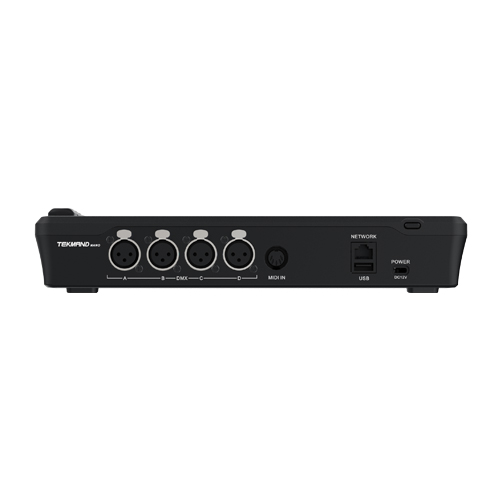

4 DMX inputs/outputs
MIDI input
1 x USB port
1 Ethernet interface

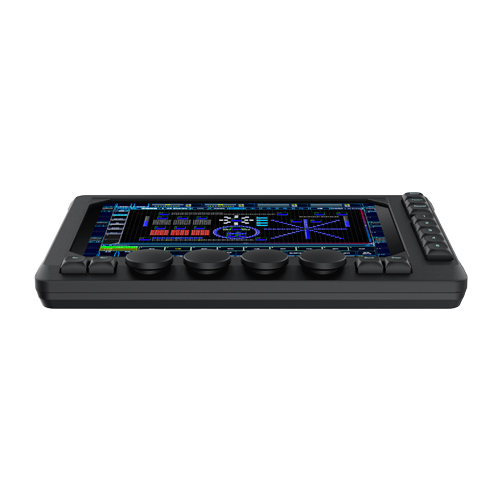

1 x 10.1 inch multi-point capacitive touch screen
4 encoders
5 execution keys
7 function keys
Built-in WIFI, battery, camera, Bluetooth
Support multiple operating languages (Chinese Simplified, Chinese Traditional, English, Japanese, Korean, French)
Support multiple input methods (Chinese, English, Korean, Doodle)
Support for connecting TEKMAND series devices to create workgroups
The console itself can handle 2048 parameters
4 DMX inputs/outputs
MIDI input
1 x USB port
1 Ethernet interface
1 x 10.1 inch multi-point capacitive touch screen
4 encoders
5 execution keys
7 function keys
Built-in WIFI, battery, camera, Bluetooth
Support multiple operating languages (Chinese Simplified, Chinese Traditional, English, Japanese, Korean, French)
Support multiple input methods (Chinese, English, Korean, Doodle)
New design, easy to understand, graphic and textual, more intuitive user interface
Supports multiple connected backups
Support CITP protocol, you can directly preview media server videos
It can be controlled remotely by handheld devices and supports IOS/ANDROID handheld terminal systems
Powerful and realistic stage 3D simulation effect, real-time simulation of live effects, convenient offline programming
Powerful layout management with multiple operating modes
Support multiple network protocols: Art-Net, sACN, etc
Support multi-user operation and set permissions for each user
Support RDM remote luminaire management
Built-in media player, smooth and clear playback
New design, easy to understand, graphic and textual, more intuitive user interface
Supports multiple connected backups
Support CITP protocol, you can directly preview media server videos
It can be controlled remotely by handheld devices and supports IOS/ANDROID handheld terminal systems
Powerful and realistic stage 3D simulation effect, real-time simulation of live effects, convenient offline programming
Powerful layout management with multiple operating modes
Support multiple network protocols: Art-Net, sACN, etc
Support multi-user operation and set permissions for each user
Support RDM remote luminaire management
Built-in media player, smooth and clear playback
Power supply: TYPE C charging interface
Product size: 297 x 210 x 59mm
Packing method: gift box packaging, one pack one
Net weight: ~1 kg
Protection class: IP 20
Working temperature: -10~40°C
Power supply: TYPE C charging interface
Product size: 297 x 210 x 59mm
Packing method: gift box packaging, one pack one
Net weight: ~1 kg
Protection class: IP 20
Working temperature: -10~40°C
