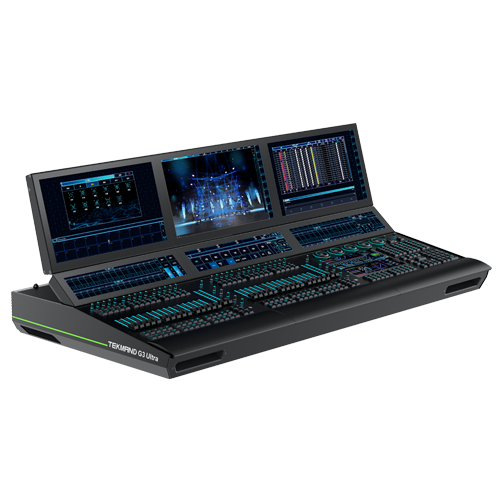

TEKMAND G3 ULTRA
OVERVIEW
TEKMAND G3 ULTRA is the third generation intelligent digital dimming console independently developed by Guangzhou Caiyi Lighting Co., Ltd. and has completely independent intellectual property rights. Adopting the ultimate hardware configuration and ultimate performance, it can easily cope with extremely large lighting systems. TEKMAND G3 ULTRA's new dual-system architecture, newly designed multi-screen application interaction, simple interface, rich graphics and text, and dual protection of software and hardware provide a safer and more reliable programming environment. Infrared, fingerprint scanner, dual cameras, dual-turn encoders, electric pushrods with scale backlight, voice recognition, remote assistant, AI programming and other new usages are added to experience different lighting programming and feel the charm brought by TEKMAND G3 .
TECHNICAL SPECIFICATION
Feature Information

  • Available to control max 260000+parameters when each session is connected to DPU

  • Console itself can process 24576 parameters

  • 8 DMX input/output ports (XLR-5 pin/XLR-3 pin)

  • Built-in 3 motor-drive foldable 17.3" ultra HD multi-touch screens

  • Built-in 3x 15.0" multi-touch bar screens

  • Built-in 1 10.1" HD multi-touch command screen

  • Expandable to two external screens

  • 5 large RGB backlit programmable dynamic touch encoder

  • 2 medium RGB backlit programmable single circle encoder

  • 40 small RGB backlit programmable encoder

  • 1 master RGB backlit programmable encoder

  • 1 dimming RGB backlit programmable encoder

  • 30 RGB backlit programmable motorized faders with scale

  • 4 long rectangular A/B/C/D RGB backlit programmable motorized faders with scale

  • 120 RGB backlit programmable command buttons

  • 20 RGB backlit programmable X keys

  • 67+12 RGB backlit programmable function keys

  • Built-in storage drawer

  • Built-in UPS power supply

  • Built-in SIM card wireless module

  • Built-in dual IR, dual microphone modules

  • Built-in dual cameras (front+rear)

  • Built-in backlit secure fingerprint scanner

  • Available to control max 260000+parameters when each session is connected to DPU

  • Console itself can process 24576 parameters

  • 8 DMX input/output ports (XLR-5 pin/XLR-3 pin)

  • Built-in 3 motor-drive foldable 17.3" ultra HD multi-touch screens

  • Built-in 3x 15.0" multi-touch bar screens

  • Built-in 1 10.1" HD multi-touch command screen

  • Expandable to two external screens

  • 5 large RGB backlit programmable dynamic touch encoder

  • 2 medium RGB backlit programmable single circle encoder

  • 40 small RGB backlit programmable encoder

  • 1 master RGB backlit programmable encoder

  • 1 dimming RGB backlit programmable encoder

  • 30 RGB backlit programmable motorized faders with scale

  • 4 long rectangular A/B/C/D RGB backlit programmable motorized faders with scale

  • 120 RGB backlit programmable command buttons

  • 20 RGB backlit programmable X keys

  • 67+12 RGB backlit programmable function keys

  • Built-in storage drawer

  • Built-in UPS power supply

  • Built-in SIM card wireless module

  • Built-in dual IR, dual microphone modules

  • Built-in dual cameras (front+rear)

  • Built-in backlit secure fingerprint scanner

  • Stable and reliable main operating system: LINUX

  • Multiple operating languages (Simplified Chinese, English, Traditional Chinese, Japanese, Korean, Russian, French…)

  • Multiple input methods (Chinese, English, Korean, Graffiti, Voice…)

  • Newly designed with multiple themes, richly illustrated interface, gesture control, voice control, AI and other user interactions

  • Multi-console online real-time backup

  • New desktop remote control APP

  • 3D stage simulation effect, offline programming

  • Built-in media player, video/audio playback with synchronization

  • Supports CITP remote media server communication

  • Supports RDM remote lighting management

  • Supports multiple network protocols: TEKMAND-Net, ArtNet, sACN, ShowNet

  • Supports PSN remote positioning service protocol

  • 3 Ethernet ports(10/100/1000M)

  • 3 + 2 high speed USB ports

  • 2 DP high definition display interfaces

  • MIDI input port (5-pin female connector)

  • MIDI output port (5-pin female connector)

  • LTC linear time code input interface (3-pin XLR female connector)

  • Audio input port (3-pin XLR female connector)

  • Audio output port (3.5mm)

  • S / PDIF audio input and output ports

  • 2 gooseneck light ports (4-pin XLR female connector)

  • Stable and reliable main operating system: LINUX

  • Multiple operating languages (Simplified Chinese, English, Traditional Chinese, Japanese, Korean, Russian, French…)

  • Multiple input methods (Chinese, English, Korean, Graffiti, Voice…)

  • Newly designed with multiple themes, richly illustrated interface, gesture control, voice control, AI and other user interactions

  • Multi-console online real-time backup

  • New desktop remote control APP

  • 3D stage simulation effect, offline programming

  • Built-in media player, video/audio playback with synchronization

  • Supports CITP remote media server communication

  • Supports RDM remote lighting management

  • Supports multiple network protocols: TEKMAND-Net, ArtNet, sACN, ShowNet

  • Supports PSN remote positioning service protocol

  • 3 Ethernet ports(10/100/1000M)

  • 3 + 2 high speed USB ports

  • 2 DP high definition display interfaces

  • MIDI input port (5-pin female connector)

  • MIDI output port (5-pin female connector)

  • LTC linear time code input interface (3-pin XLR female connector)

  • Audio input port (3-pin XLR female connector)

  • Audio output port (3.5mm)

  • S / PDIF audio input and output ports

  • 2 gooseneck light ports (4-pin XLR female connector)

TECHNICAL SPECIFICATIONS

  • Input voltage: 100-240V~ 50/60Hz

  • Maximum power: 230 W

  • Power factor: ≥0.95

  • Product dimensions: 1357 x 637 x 461mm (screen raised) 1357 x 740 x 180mm (screen folded)

  • Net weight: 48 kg

  • Packaging method: 1 pc / flightcase

  • IP rate: IP 20

  • working temperature: -10℃～40℃

  • Accessory Items

  • Dust cover

  • Gooseneck light

  • User Manual

  • Capacitive touch pen (optional)

  • Input voltage: 100-240V~ 50/60Hz

  • Maximum power: 230 W

  • Power factor: ≥0.95

  • Product dimensions: 1357 x 637 x 461mm (screen raised) 1357 x 740 x 180mm (screen folded)

  • Net weight: 48 kg

  • Packaging method: 1 pc / flightcase

  • IP rate: IP 20

  • working temperature: -10℃～40℃

  • Accessory Items

  • Dust cover

  • Gooseneck light

  • User Manual

  • Capacitive touch pen (optional)

GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
Filename
Size
Uploaded
Downloading
Drawings
icon
TEKMAND G3 ULTRA Dimension Drawing
2024-10-19
