FINE 1400 PERF
OVERVIEW

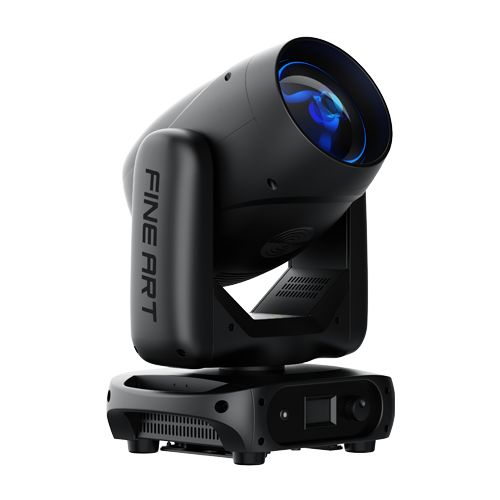

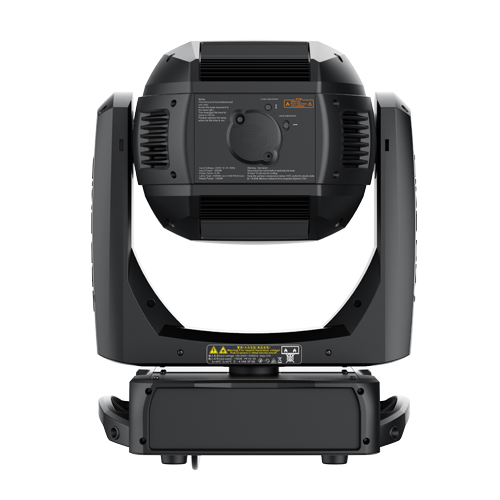

FINE 1400 PERF is a gobo framing computer moving head spot light with 1400W lamp. It integrates the computer light's latest technology including intelligent fan control, encoder positioning and design of master/slave reflector, etc. It is specially created for rental market. Unique optical design, not only makes the even light spot, but even exceeds the 1500W computer light's efficiency in the market, and the light will realize the frost function through zoom adjustment function under no change for the size of the light spot and the light luminous. The diameter of the light output lens is 140 mm, the overall light output luminous flux exceeds 35,000lm. Pan&tilt use the non-touching magnetic encoder positioning, positioning precision is 5 times compared with the optocoupler positioning. With modularized construction design and software compatible technology, after exchange of the framing assembly, the light will be fast changed into a gobo light with an image framing system function, which decreases the cost largely for the user. This fixture is suitable for high-end places like TV station, opera, stages, etc.
TECHNICAL SPECIFICATION
OPTICAL SYSTEM
  • Lamp Source: OSRAM lok-it 1400-PS_Brilliant

  • The diameter of optical Lens: 140mm

  • Overall Luminous Flux: >35,000lm

  • Evenness: >80%

  • Zoom Range: 8°-50°

  • CRI: Ra>95

  • Lamp Source: OSRAM lok-it 1400-PS_Brilliant

  • The diameter of optical Lens: 140mm

  • Overall Luminous Flux: >35,000lm

  • Evenness: >80%

  • Zoom Range: 8°-50°

  • CRI: Ra>95

COLOR SYSTEM
  • CMY infinite color mixing system

  • CTO color temperature linear adjustment (2700k-6500K)

  • 7 color filters + white

  • CMY infinite color mixing system

  • CTO color temperature linear adjustment (2700k-6500K)

  • 7 color filters + white

GOBO SYSTEM
  • Outer diameter: Ø37.3mm, thickness: 1.1mm, pattern area: Ø26mm, material: glass

  • 1 rotating gobo wheel with 5pcs bidirectional rotating & positioning gobos

  • Outside diameter: 37.3mm; Image diameter: 26mm; Material: Glass; Thickness: 1.1mm

  • 1 animation wheel

  • Outer diameter: Ø37.3mm, thickness: 1.1mm, pattern area: Ø26mm, material: glass

  • 1 rotating gobo wheel with 5pcs bidirectional rotating & positioning gobos

  • Outside diameter: 37.3mm; Image diameter: 26mm; Material: Glass; Thickness: 1.1mm

  • 1 animation wheel

FRAMING SYSTEM
  • 1 set of full directional framing system + 90°image position
  • 1 set of full directional framing system + 90°image position
EFFECTS
  • 1 rotating 4-facet prism, bidirectional rotation

  • Independent soft light frost effect

  • Electric linear frost

  • Fast electric iris

  • 1 rotating 4-facet prism, bidirectional rotation

  • Independent soft light frost effect

  • Electric linear frost

  • Fast electric iris

MOVEMENT PARAMETER
  • Angle: PAN=540°, TILT=270°
  • Angle: PAN=540°, TILT=270°
CONTROL AND PROGRAMMING
  • Control channel: 32 (standard)/ 35(16Bit)/ 42 (extended), 3 control modes

  • Protocol: Standard DMX512 protocol, Art-net light control protocol and wireless DMX512 control (optional)

  • Control channel: 32 (standard)/ 35(16Bit)/ 42 (extended), 3 control modes

  • Protocol: Standard DMX512 protocol, Art-net light control protocol and wireless DMX512 control (optional)

POWER SUPPLY
  • Input voltage: 200-240V~,50/60Hz
  • Electronic ballast

  • Input power: 1800W

  • PF≥0.98

  • Input voltage: 200-240V~,50/60Hz
  • Electronic ballast

  • Input power: 1800W

  • PF≥0.98

DIMENSION AND WEIGHT
  • Fixture Dimension: 465 x 439 x 777.5mm
  • Package Dimension: 654 x 524 x 819mm

  • Net Weight: 42.5 kg

  • Gross Weight: 78 kg

  • Fixture Dimension: 465 x 439 x 777.5mm
  • Package Dimension: 654 x 524 x 819mm

  • Net Weight: 42.5 kg

  • Gross Weight: 78 kg

PACKAGE
  • 1set / flight case
  • 1set / flight case
IP RATE
  • IP 20
  • IP 20
DIMENSIONS
990395210123 FINE 1400ZL PERF Dimension drawing2024-10-14_00
PHOTOMETRICS

FINE 1400 PERF 照度表 英文版20241014_00

GOBOS & COLORS
Color Wheel 1
Rotating Gobo Wheel 1
190373000059
1
190373000058
190373000057
190373000056
Animation Wheel
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
Filename
Size
Uploaded
Downloading
TEKMAND
icon
FINE 1400ZL PERF(TEKMAND)
2021-01-26
MA2
icon
FINE 1400 PERF (MA2)
2024-10-24
icon
FINE 1400ZL PERF(MA2)
2021-01-26
Avolites Pearl
icon
FINE 1400ZL PERF(Avolites Pearl)
2020-12-23
Avolites D4
icon
FINE 1400ZL PERF(Avolites D4)
2020-12-25
Drawings
icon
FINE 1400 PERF Dimension Drawings
2024-10-15
