OVERVIEW

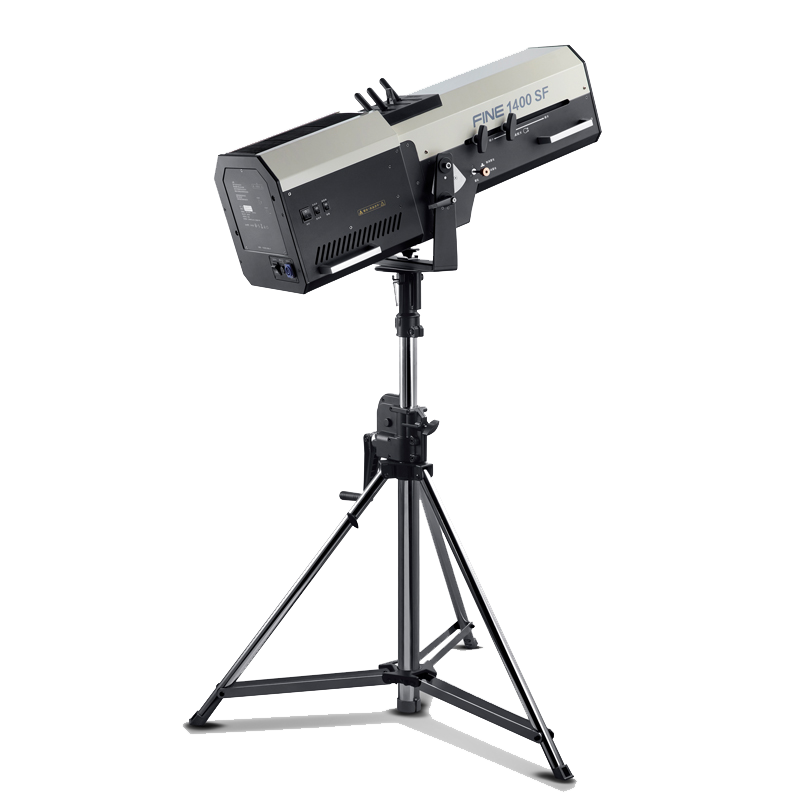

FINE 1400SF is a new professional follow spot designed for theatre and studio room using OSRAM high CRI 1400W lamp with 188mm optical lens. It becomes popular item due to its outstanding features of strong beam effect, total light output of 36,000lm, Ra>95 as well as even spot (evenness>80%). Its design is compact, lightweight with long body of 915mm, by which it can be in lifting stand and hanging installment (option) ways and can be placed flexibly in follow spot room of theatre or the back of audience hall. It can also be used in entertainment and wedding place.
Share
PDF
FINE 1400SF
FINE 1400SF
FINE 1400SF is a new professional follow spot designed for theatre and studio room using OSRAM high CRI 1400W lamp with 188mm optical lens. It becomes popular item due to its outstanding features of strong beam effect, total light output of 36,000lm, Ra>95 as well as even spot (evenness>80%). Its design is compact, lightweight with long body of 915mm, by which it can be in lifting stand and hanging installment (option) ways and can be placed flexibly in follow spot room of theatre or the back of audience hall. It can also be used in entertainment and wedding place.
TECHNICAL SPECIFICATION
OPTICAL SYSTEM
Light Source: OSRAM Lot-it 1400PS Brilliant
Average Life Span: 750 h
Beam Angle: 5 °- 18° (Standard)
3.5 °- 9 ° (Customized)
CRI: Ra≥95
Evenness: ≥80%
Color Temperature: 6,500K
COLOR SYSTEM
CTO linear color temperature adjustment (2700K-6500K)
EFFECTS
Shutter 0-100% linear adjustment
Iris 5-100% linear adjustment
Removable gobo or fast replacement for aperture (optional)
Frost soft light effect
FIXTURE ADJUSTMENT ANGLE
Pan : 360°
Tilt : ±35°
POWER SUPPLY
Input voltage: 200-240V~,50/60Hz
Input power: 1600W
PF≥0.98
DIMENSION AND WEIGHT
Fixture dimension: 915 x 319 x 378mm
Flight case: 1145 x 668 x 642mm
Net weight: 31 kg (fixture), 11 kg (stand)
Gross weight: 82.8 kg
PACKAGE
1set / flight case
IP RATE
IP 20
DIMENSIONS
PHOTOMETRICS
